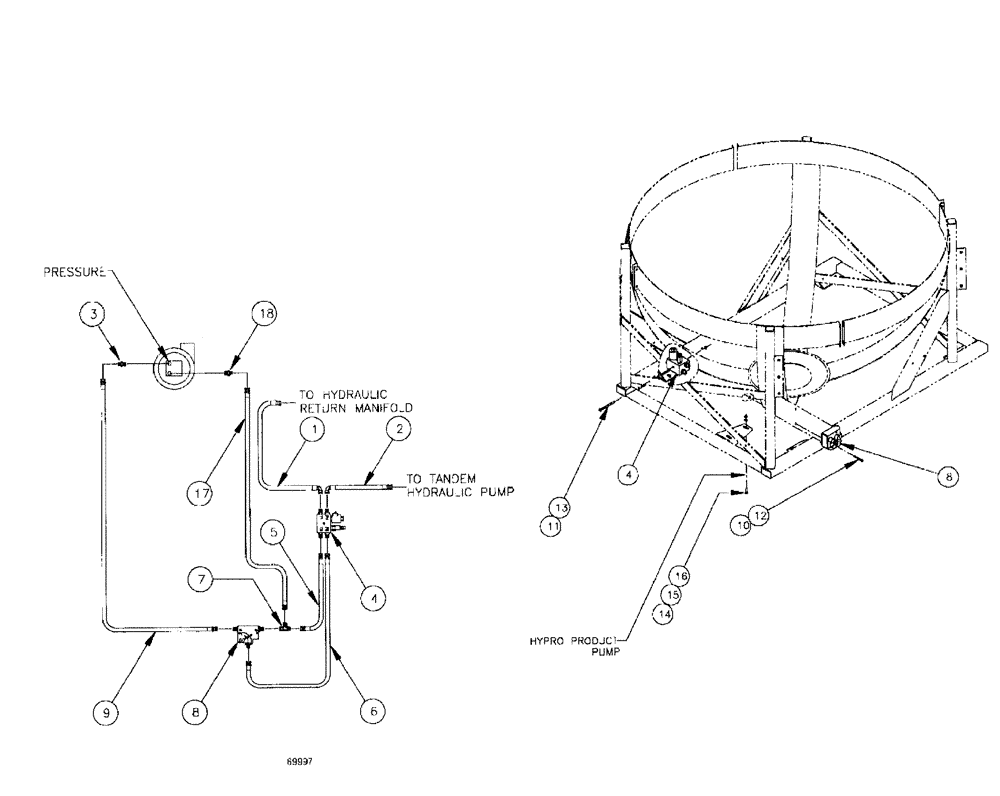

Запчасти Case IH SPX3185 (09-012) - LIQUID PLUMBING - HYDRAULIC GROUP Liquid Plumbing

1

BN311289

HOSE,0.75" ID x 31.00"

100R2

1шт.

2

BN54172

HOSE

1/2" ID x 90" 100R2

1шт.

3

BN441006

ADAPTER

1/2 NPT-8 JIC

1шт.

4

BN311288

HYDRAULIC VALVE

ASSEMBLY, manifold, w/adptrs

1шт.

4a

BN95962

KIT seal

1шт.

4b

BN95744

CARTRIDGE

1шт.

4c

BN95745

COIL

solenoid valve

1шт.

4d

BN95239

VALVE relief

1шт.

5

BN311269

HOSE,0.75" ID x 26.00"

100R2

1шт.

7

BN53573

TEE

FT, tee, JIC, 1-1/16, ML-FML

1шт.

8

BN311338

REGULATOR

ASSEMBLY flow regulator

1шт.

9

BN54238

HOSE

1/2" x 42", 100R2

1шт.

10

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

11

BN66740

SCREW,Hex, 5/16" - 18 x 4", SST

hex head, 5/16-18 x 4, SS

1шт.

12

280129

NUT,1/4"-20

2шт.

13

280736

NUT,5/16"-18, GC

1шт.

14

BN50258

BOLT,3/8"-16 X 1.25", Stainless

1шт.

15

BN50146

WASHER,3/8", Stainless

1шт.

16

88902

NUT,3/8"-16

1шт.

17

BN311268

HOSE,0.75" ID x 42.00"

100R2

1шт.

18

BN52288

ADAPTER

FT, ADPT, 1/2", 14 x 1, 1/16-12

1шт.
