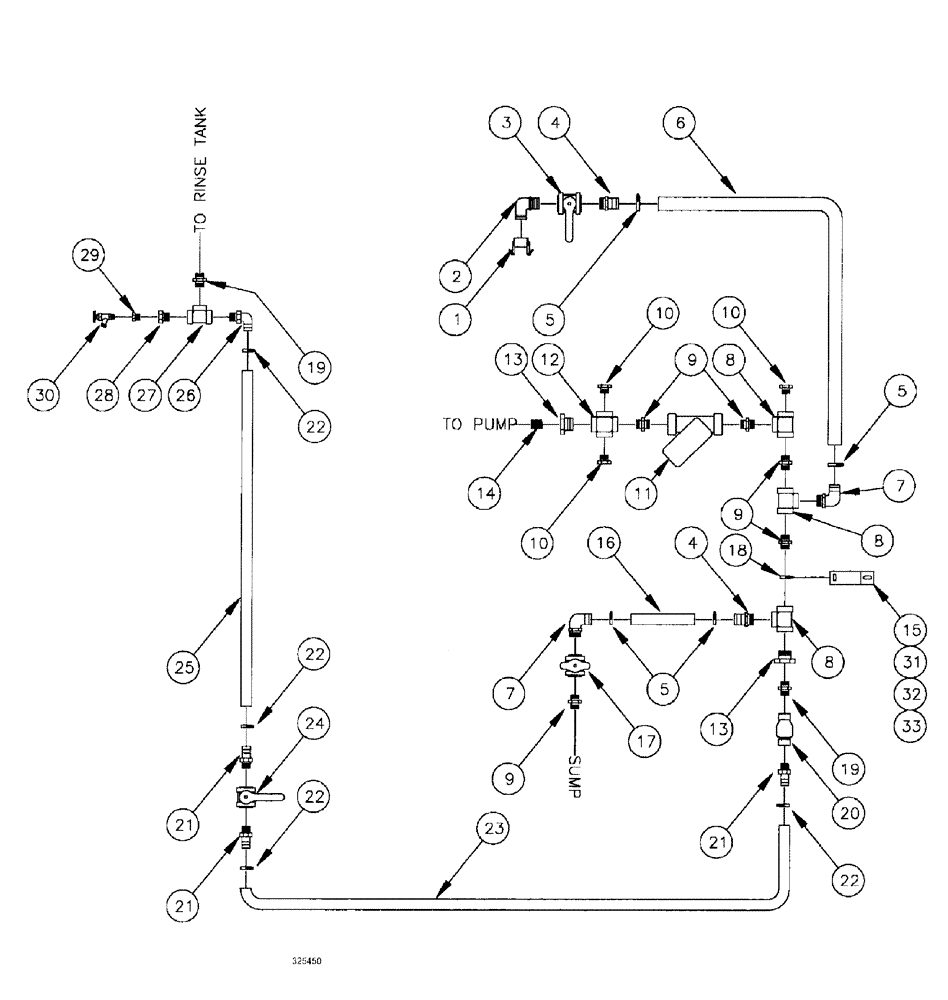

Запчасти Case IH SPX3185 (09-006) - LIQUID PLUMBING - SUCTION PLUMBING Liquid Plumbing
№
Артикул
Название
Примечание
Количество
1
BN22901
DUST CAP,2" Cam Lever Dust Cap
2" Cam Lever
1шт.
2
BN25262
ELBOW
90°, 2" NPT
1шт.
3
BN73761
VALVE,2" NPT x 2" NPT
Ball, 2" Full Port
1шт.
4
BN73781
FITTING,2" Male NPT x 2" Hose Barb, Poly
2" NPT x 2" Hose Barb
2шт.
5
BN76056
HOSE CLAMP
#36
4шт.
6
BN68377
HOSE
2" EPDM x 50"
1шт.
7
401875A1
FITTING,2" Male Thread x 2" 90 Degree Hose Barb
2" MNPT x 2" Hose Barb, Poly
2шт.
8
BN73779
TEE,2" Poly Tee
2" Poly Pipe
3шт.
9
BN73783
NIPPLE
2" NPT Short Poly
5шт.
10
BN73794
PLUG,2" Male NPT, Poly
2" poly pipe
3шт.
11
BN73792
FILTER STRAINER,2" NPT, 30 Mesh
2" NPT - 30 Mesh Poly
1шт.
12
BN73791
CROSS
2" NPT poly
1шт.
13
BN73787
SLEEVE
BUSH reducer 2 - 1.5 poly
2шт.
14
BN73320
NIPPLE
1.5" NPT Close, SS
1шт.
15
BN69759
SUPPORT
MOUNT plumbing support
1шт.
16
BN65559
HOSE
2" EPDM x 9.00"
1шт.
17
BN73795
VALVE,Full Port; 2 Inch; T Handle
2" Full Port w/Thd
1шт.
18
BN51098
HOSE CLAMP
CLAMP hose #48
1шт.
19
BN73727
NIPPLE,1-1/2" NPT x 1-1/4" NPT
1.5 x 1.25 poly
2шт.
20
BN24567
CHECK VALVE
1 1/4" NPT
1шт.
21
87743696
FITTING
1-1/4" NPT X 1-1/4" Hose Barb, Poly
3шт.
22
BN76084
HOSE CLAMP
Adj. #24, SS
4шт.
23
BN53930
HOSE,68.00"
1шт.
24
BN73658
VALVE,1-1/4" Full Port Valve
Ball, 1-1/4", poly
1шт.
25
BN53929
HOSE,7.00"
1шт.
26
BN73663
ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly
1-1/4" NPT x 1-1/4" Hose Barb, 90°, Poly
1шт.
27
BN73662
TEE
1-1/4 pipe, poly
1шт.
28
BN73653
BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly
Reducer, 1-1/4" MPT x 3/4" FPT, Poly
1шт.
29
BN73552
BUSHING,3/4" MPT x 1/2"FPT Reducing Bushing
BUSH 3/4 x 1/2 red. poly
1шт.
30
BN53817
DRAIN VALVE
Plastic 1/2" NPT
1шт.
30a
BN67395
BRACKET
Weldment (Not shown)
1шт.
30b
BN50254
BOLT,3/8"-16 x 1", Stainless
2шт.
30c
BN50061
LOCK NUT
3/8"-16, UNC, Whiz
2шт.
Выбрано товаров: 36
