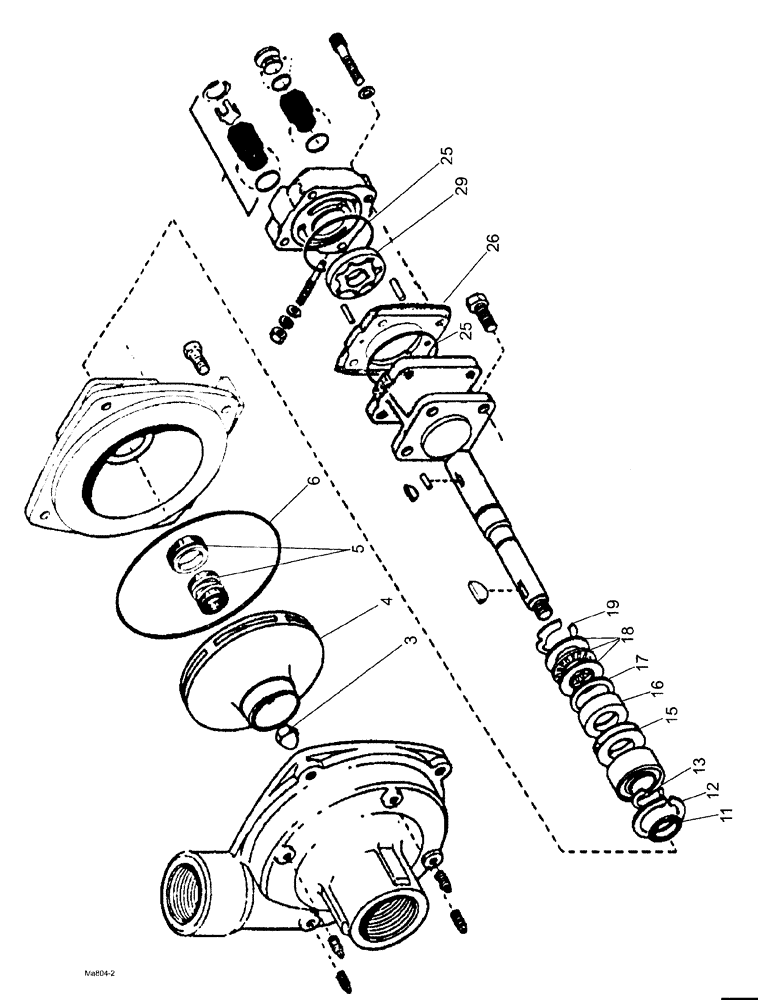

Запчасти Case IH SPX3185 (09-004) - LIQUID PLUMBING - PRODUCT PUMP Liquid Plumbing

0

BN311826

SEAL KIT

Pump (All Models)

1шт.

Includes Refs. 3, 5, & 6

1шт.

3

BN53693

NUT

Impeller #3

1шт.

Part of P/N BN53767, Pump Seal Kit

1шт.

4

BN53692

IMPELLER

#4

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL mechanical, vitron, 9303 MOD

1шт.

Part of P/N BN53767, Pump Seal Kit

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of P/N BN53767, Pump Seal Kit

1шт.

6a

BN53768

SEAL KIT

shaft

1шт.

Includes Refs. 11, 12, 13, 15, 16, 17, 18, & 19

1шт.

11

NSS

NOT SOLD SEPARAT

RING slinger

1шт.

Part of P/N BN53768, Shaft Seal Kit

1шт.

12

NSS

NOT SOLD SEPARAT

RING retaining

1шт.

Part of P/N BN53768, Shaft Seal Kit

1шт.

13

NSS

NOT SOLD SEPARAT

RING snap

1шт.

Part of P/N BN53768, Shaft Seal Kit

1шт.

15

NSS

NOT SOLD SEPARAT

SPACER

1шт.

Part of P/N BN53768, Shaft Seal Kit

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL shaft

1шт.

Part of P/N BN53768, Shaft Seal Kit

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL spacer

1шт.

Part of P/N BN53768, Shaft Seal Kit

1шт.

18

NSS

NOT SOLD SEPARAT

THRUST BRG ASSEMBLY (1) thrust brg & (2) thrust brg races

1шт.

Part of P/N BN53768, Shaft Seal Kit

1шт.

19

NSS

NOT SOLD SEPARAT

RING snap

1шт.

Part of P/N BN53768, Shaft Seal Kit

1шт.

19a

BN53769

REPAIR KIT

Gerotor - HM1 Model

1шт.

Includes Refs. 25, 26, 29

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Part of P/N BN53769, Gerotor Kit - HM1 model, 26 and 29 - .5" wide

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING gerotor

1шт.

Part of P/N BN53769, Gerotor Kit - HM1 model, 26 and 29 - .5" wide

1шт.

29

NSS

NOT SOLD SEPARAT

GEROTOR

1шт.

Part of P/N BN53769, Gerotor Kit - HM1 model, 26 and 29 - .5" wide

1шт.

29a

BN53771

HYDRAULIC MOTOR

HM1

1шт.
