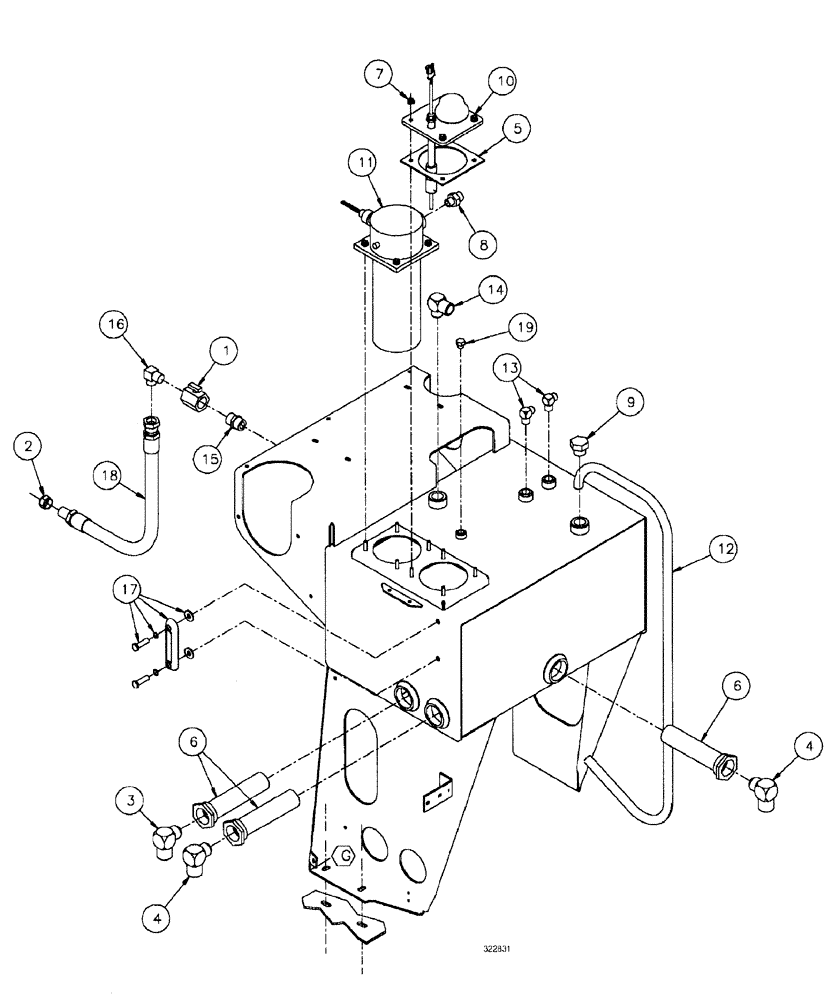

Запчасти Case IH SPX3185 (06-026) - HYDRAULIC PLUMBING - OIL TANK GROUP Hydraulic Plumbing

1

BN53473

VALVE,1" NPT

SS, ball, 2 way, 1" NP

1шт.

2

BN22240

CROWN NUT,1-1/16"-12 , 37 Degree

1шт.

3

BN52037

ADAPTER

90º OR 37 FL20-24

1шт.

4

BN52337

FITTING

20MJ-20MB x 90

2шт.

5

BN302982

GASKET,3.17mm Thk

cover plate

1шт.

6

BN303528

STRAINER ASSY.

32MB x -20FB, 100

3шт.

7

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

8шт.

8

BN53927

ADAPTER

90º 16 O-Ring-12 JIC

1шт.

9

BN60479

PLUG

hex, 1-5/16-12 O-ring

1шт.

10

SWITCH level temp, GRP, see Figure 06-030

1шт.

11

FILTER, tank, SAE24, 6ABS, see Figure 06-025

1шт.

12

BN322808

RESERVOIR, HYDRAULIC

Weldment, Oil Tank

1шт.

13

BN445001

FITTING

12MJ-12MB x 90

2шт.

14

BN51621

FITTING

16MJ-16MB x 90

1шт.

15

BN51656

ADAPTER

FT, STR, 1 NPTF, Male

1шт.

16

BN53809

ELBOW

Adapter, 90°, 1" NPT x 1/16" JIC

1шт.

17

BN322594

GAUGE

sight w/temperature

1шт.

18

BN54199

HOSE,0.75" ID x 30.00", SAE 100R1

1шт.

19

BN446048

PLUG

hex, O-ring , -6, 9/16-18

1шт.
