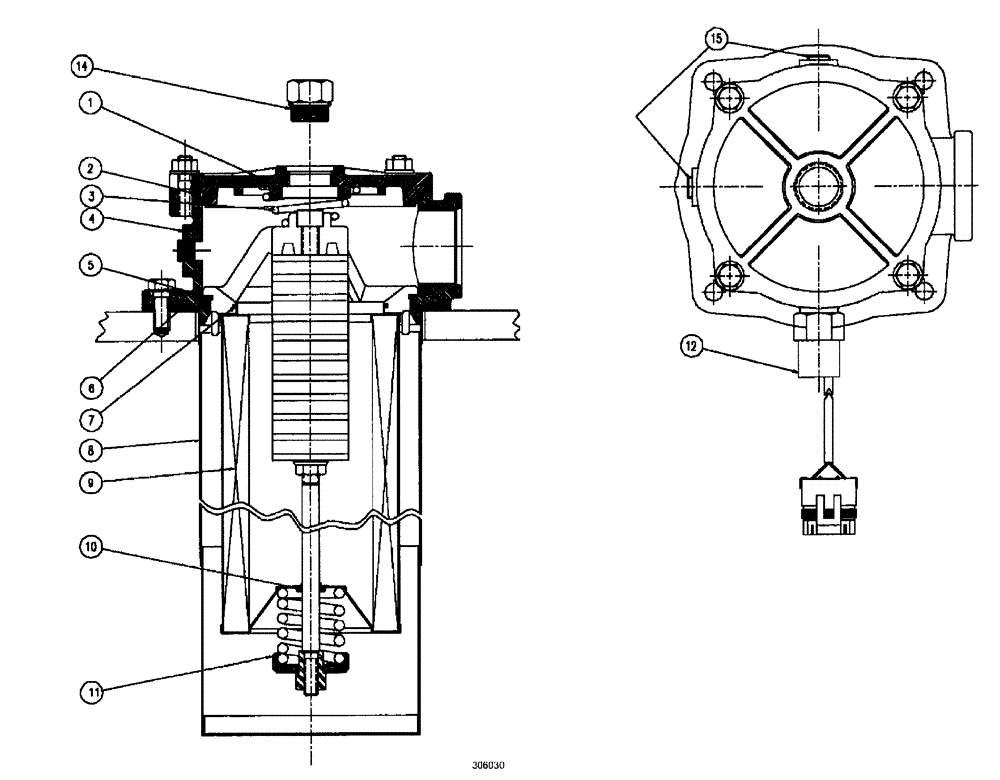

Запчасти Case IH SPX3185 (06-025) - HYDRAULIC PLUMBING - AUX SYSTEM INTAKE RETURN FILTER Hydraulic Plumbing

1

BN54259

COVER

FILTER ASSEMBLY

1шт.

2

BN54260

O-RING

Cover, Filter A

1шт.

3

BN54261

COIL SPRING

conical

1шт.

4

BN306202

HEAD

1шт.

5

BN54263

O-RING

insert

1шт.

6

BN54264

GASKET

Tank

1шт.

7

BN306203

GASKET

bypass

1шт.

8

BN306204

DIFFUSER

1шт.

9

BN306031

ELEMENT

6 ABS, 12"

1шт.

10

BN54267

O-RING

element

1шт.

11

BN306205

ASSEMBLY

BYPASS

1шт.

12

BN53955

PRESSURE SWITCH

For 53952

1шт.

14

BN54270

PLUG

ext. w/O-ring #12

1шт.

15

BN306206

PLUG

1/4" NPT

2шт.
