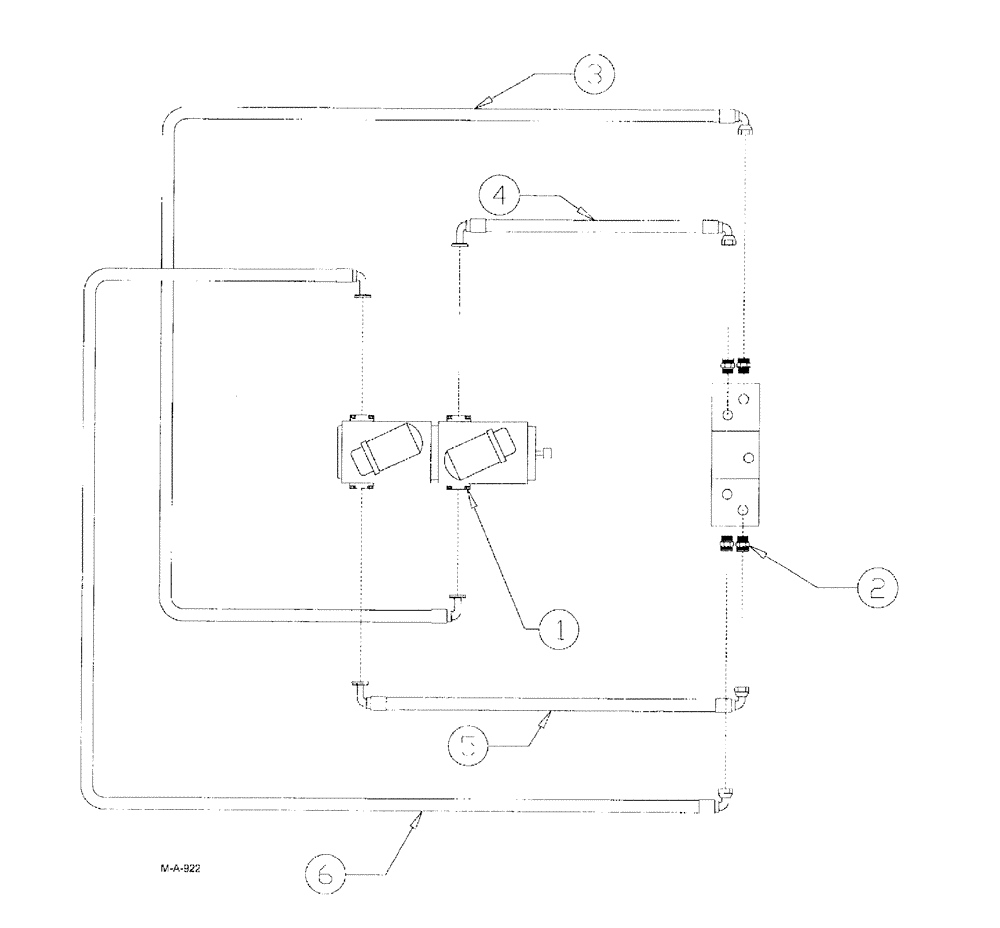

Запчасти Case IH SPX3185 (06-020) - HYDRAULIC PLUMBING - HYDROSTATIC PUMP TO SHIFT BLOCK Hydraulic Plumbing

1

BN52317

O-RING

Split Flange

4шт.

2

BN57223

FITTING

ADAPTER, STR. 1-5/16-12 O-ring x 1-7/16-12 male flat face

4шт.

2a

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

Flat face

4шт.

2b

BN98016

O-RING

SAE-16 Buna N

4шт.

3

BN55126

HYDRAULIC HOSE,25.4mm ID x 1435.1mm L

1" x 56.50, 5000 PSI

1шт.

4

BN55124

HYDRAULIC HOSE,1.00" ID x 14.25"

1" x 14.25, 5000 PSI

1шт.

5

BN55125

HYDRAULIC HOSE,1.00" ID x 22.00"

1" x 22, 5000 PSI

1шт.

6

BN55123

HYDRAULIC HOSE,25.4mm ID x 1238.25mm L

1" x 48.75, 5000 PSI

1шт.
