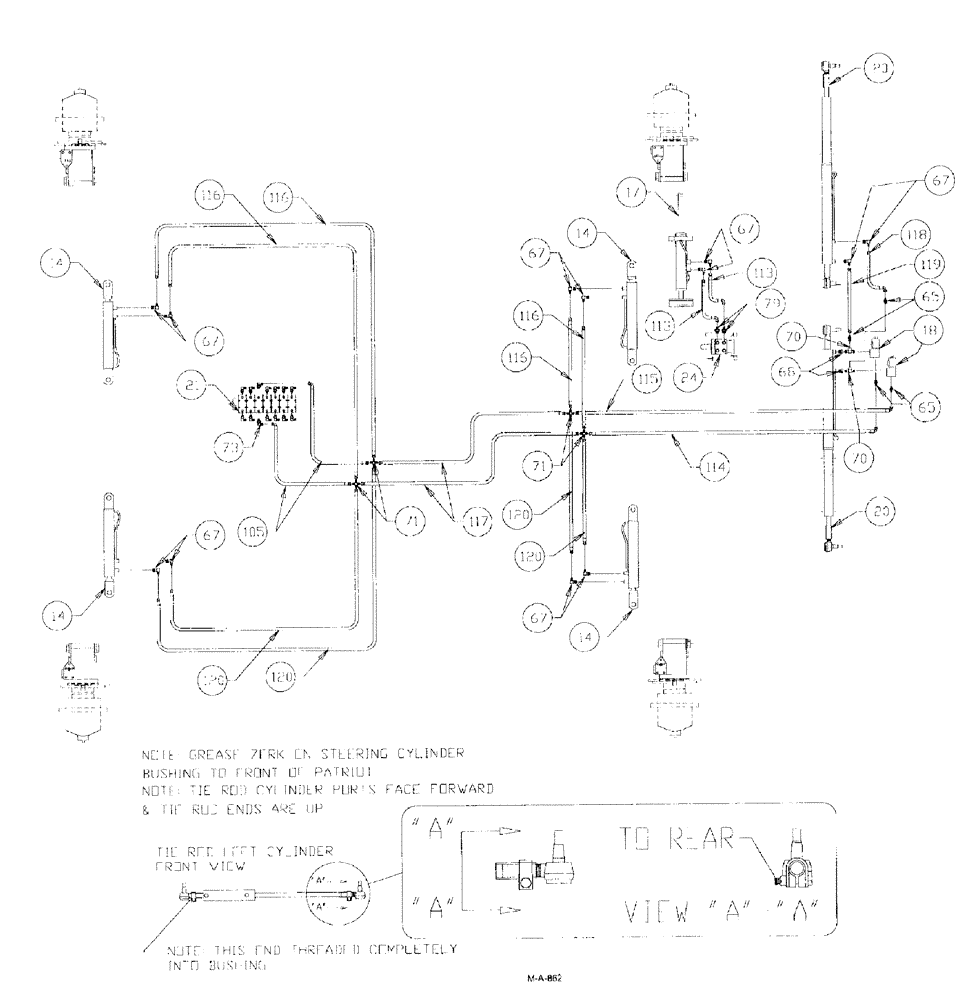

Запчасти Case IH SPX3185 (06-006) - HYDRAULIC PLUMBING - STEERING 7 - BANK VALVE Hydraulic Plumbing
№
Артикул
Название
Примечание
Количество
14
NSS
NOT SOLD SEPARAT
HYD. CYLINDER axle adjust
4шт.
See Fig. 07-002
1шт.
17
NSS
NOT SOLD SEPARAT
HYD. CYLINDER steering
1шт.
See Fig. 07-010
1шт.
18
BN306166
SOLENOID VALVE
Assy, w/body
2шт.
18a
BN301705
COIL
12VDC, shift w/ female Packard connector
1шт.
18b
BN98204
O-RING
BUNA-N, for BN29788
1шт.
18c
BN98205
O-RING
0-RING top, large
1шт.
18d
BN306168
VALVE BODY
BODY valve
1шт.
20
NSS
NOT SOLD SEPARAT
HYDR. CYLINDER tie rod
2шт.
Tie rod Cylinder - adjust for 1/4" - 1/2" toe in. (Front of tires 1/4"-1/2" less than rear of tires at hub center line-with tire facing ahead). Adjust toe in from rod (outer) end of cylinder.
1шт.
See Fig. 07-011
1шт.
20a
359775A1
END ASSY.
Tie Rod, RH 1"-16 Thread
4шт.
20b
BN4851
STAPLE
CLAMP ASSEMBLY w/bolt, tie rod end
4шт.
21
NSS
NOT SOLD SEPARAT
VALVE, 7 bank
1шт.
See Fig. 06-019
1шт.
24
NSS
NOT SOLD SEPARAT
ORBITROL steering control
1шт.
See Fig. 01-008
1шт.
24a
BN98233
SEAL KIT
KIT seal for orbitrol, steering control
1шт.
65
BN21355
ADAPTER,1/4"-18 NPT x 7/16-20 JIC
4шт.
67
BN21401
ELBOW,90 Degree 3/8" NPT x 7/16"-20 JIC
13шт.
68
BN51352
BUSHING
1/4-18 x 3/8-18 NPT
2шт.
70
BN53712
TEE
1/4" NPT
2шт.
71
BN54043
ADAPTER
CROSS, 7/16-20 JIC
4шт.
73
BN22160
ELBOW
90° 9/16-18 O-Ring X 7/16-20 JIC
14шт.
73a
BN98019
O-RING
#6
14шт.
79
BN21249
ADAPTER,3/4" - 16 ORFS x 7/16" - 20 JIC
2шт.
79a
BN98018
O-RING
#8
2шт.
105
BN54161
HOSE,0.25" ID x 52.00", SAE 100R1
2шт.
113
BN53814
HOSE
1/4" x 62"
2шт.
114
BN54155
HOSE,0.25" ID x 33.00", SAE 100R1
Assembly
1шт.
115
BN54156
HOSE,0.25" ID x 30.00", SAE 100R1
Assembly
1шт.
116
BN54185
HOSE
1/4" ID x 64" 100 R1
4шт.
117
BN54158
HOSE,0.25" ID x 114.00", SAE 100R1
2шт.
118
BN54159
HOSE,0.25" ID x 28.00", SAE 100R1
Assembly
1шт.
119
BN53964
HOSE
1/4" ID x 15" 100R1
1шт.
120
BN53604
HOSE
1/4" x 40"
4шт.
Выбрано товаров: 37
