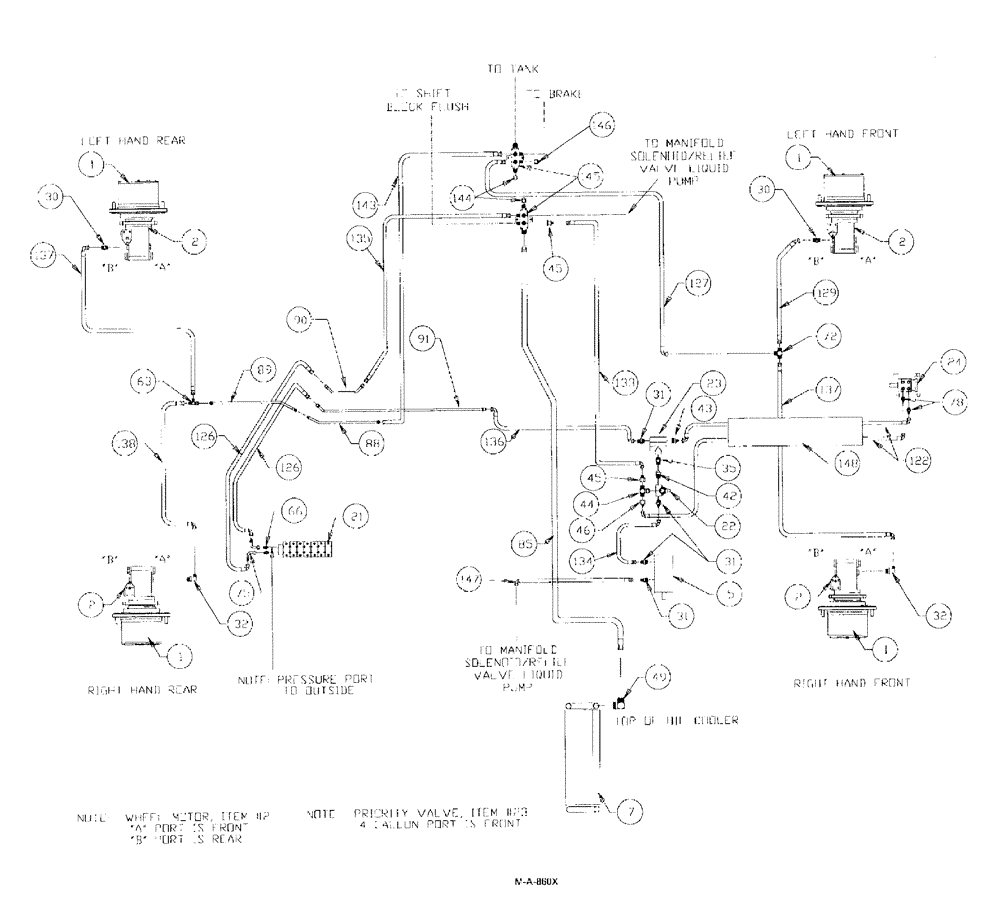

Запчасти Case IH SPX3185 (06-002) - HYDRAULIC PLUMBING - BASIC UNIT Hydraulic Plumbing
№
Артикул
Название
Примечание
Количество
1
NSS
NOT SOLD SEPARAT
HUB power wheel
1шт.
See Fig. 05-002
1шт.
1a
BN27372
CAP
hub cover
4шт.
2
BN25866
MOTOR,GEAR, 24.6 CC
wheel
4шт.
BN25866R
REMAN-HYD MOTOR
SPX3185,
4шт.
BN25866C
CORE-HYDRAULIC PUMP
Return Number
1шт.
2a
BN54033
O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro
0-RING, between hub & wheel motor
4шт.
2b
BN98186
SEAL
lip, shaft
4шт.
5
BN67039
PUMP
Hydraulic Tandem CW Rotation
1шт.
5a
BN98608
SEAL
shaft, for BN27195
1шт.
5b
BN98609
REPAIR KIT
KIT repair
1шт.
7
NSS
NOT SOLD SEPARAT
COOLER hyd oil
1шт.
See Fig. 03-076
1шт.
21
NSS
NOT SOLD SEPARAT
VALVE, 7 bank
1шт.
See Fig. 06-018
1шт.
22
BN29234
VALVE PRESSURE RELIE,1-1/16" - 12
O-Ring Port
1шт.
23
BN29237
VALVE, PRESSURE RELI
EF Priority, 4.5 Gallons @ 150
1шт.
24
NSS
NOT SOLD SEPARAT
ORBITROL steering
1шт.
See Fig. 01-008
1шт.
30
BN67864
ADAPTER
1-1/16"-12 O-ring x 7/8-14 JIC
2шт.
30a
BN98017
O-RING
SAE-12 Buna N
2шт.
31
BN444003
FITTING
ADAPTER STR., 1-1/16-12 O-ring x 3/4-16 JIC
4шт.
31a
BN98017
O-RING
SAE-12 Buna N
6шт.
32
BN67865
ELBOW
Adapter, 90°, 1-1/16"-12 O-ring x 7/8"-14 JIC
2шт.
32a
BN98017
O-RING
SAE-12 Buna N
2шт.
35
BN444001
FITTING
ADAPTER STR., 1-1/16-12 O-ring x 1-1/16-12 JIC
1шт.
35a
BN98017
O-RING
SAE-12 Buna N
1шт.
42
BN57224
FITTING
ADAPTER STR., 1-1/16-12 O-ring x 1-1/16-12 JIC
1шт.
42a
BN98017
O-RING
SAE-12 Buna N
1шт.
43
BN57225
FITTING
ADAPTER STR, 1-1/16-12 O-ring x 9/16-18 JIC
1шт.
43a
BN98017
O-RING
SAE-12 Buna N
1шт.
44
BN446032
TEE
1-1/16-12 O-ring x 1-1/16-12 JIC
1шт.
44a
BN98017
O-RING
SAE-12 Buna N
1шт.
45
BN53715
REDUCER
1-1/16"-12 Female JIC x 3/4-16 Male JIC
1шт.
46
BN53716
FITTING
REDUCER, 1-1/16-12 female JIC x 9/16-18 male JIC
1шт.
49
BN67881
ADAPTER
90º 1" NPT x #16 JIC
1шт.
63
BN69126
TEE
1-1/16"-12 x 7/8-14 JIC
1шт.
66
BN60440
ADAPTER
STR., 9/16-18 O-ring x 3/4-16 JIC
2шт.
66a
BN98019
O-RING
#6
2шт.
72
BN22159
TEE
3/4-16 37°
1шт.
75
BN53707
FITTING
ELBOW, 90 DEG 3/4-16 JIC
2шт.
78
BN57226
ADAPTER
3/4-16 O-Ring x 9/16-18 JIC
2шт.
78a
BN98018
O-RING
#8
2шт.
85
BN69783
HOSE
1" ID X 66", 100R3
1шт.
86
BN75990
HOSE CLAMP
#16, Stainless Steel
2шт.
88
BN67650
HYD TUBE
Steel, 3/4", 2350 PSI
1шт.
89
BN67649
HYD TUBE
Steel, 3/4", 2350 PSI
1шт.
90
BN66214
TUBE ASSY.
Steel, 1/2"
1шт.
91
BN65101
TUBE
steel, 1/2"
1шт.
122
BN68851
HYDRAULIC HOSE
3/8" I.D. x 80"
2шт.
125
BN58116
HOSE,0.50" ID x 31.00"
1шт.
126
BN53818
HOSE
1/2" ID x 66" 100R2
2шт.
127
BN69595
HOSE
3/4" x 64" 100R1
1шт.
129
BN67866
HOSE
5/8" x 130", 100R1
2шт.
133
BN54170
HOSE
1/2" x 74"
1шт.
134
BN54183
HOSE,0.50" ID x 34.00", SAE 100R2
2шт.
135
BN58114
HOSE,0.50" ID x 13.00"
1шт.
136
BN54186
HOSE
1/2" x 30"
1шт.
137
BN67867
HOSE
5/8" x 130", 100R1
2шт.
138
BN67868
HOSE
5/8" x120"
1шт.
143
BN67874
HOSE ASSY.
3/4" x 22"
1шт.
144
BN22240
CROWN NUT,1-1/16"-12 , 37 Degree
2шт.
145
BN67245
MANIFOLD
Hyd. Return
2шт.
146
BN22431
CROWN NUT,3/4"-16, 37 Degree
1шт.
147
BN311233
HOSE,0.50" ID x 84.00"
100R2
1шт.
148
BN306180
PLASTIC-RUBBER TUBE
POLYTUBE, 1-1/8 ID x 36
1шт.
Выбрано товаров: 66
