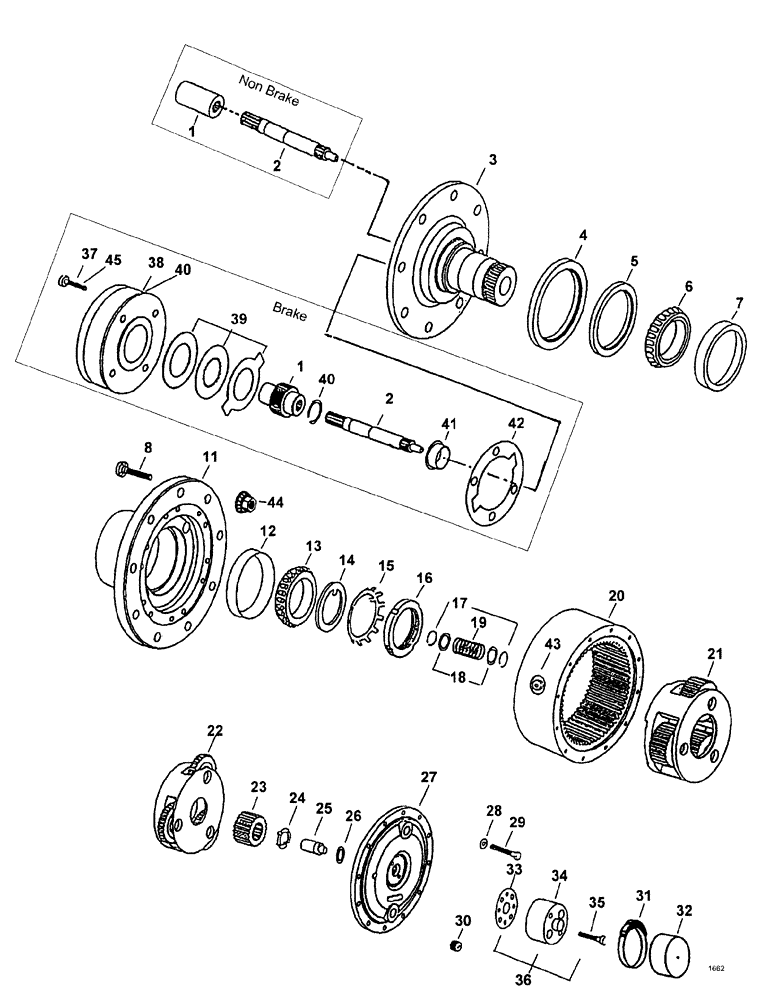

Запчасти Case IH SPX3185 (05-002) - HUB, WHEEL & TIRES - HUB ASSEMBLY - MODEL 8 Hub, Wheel & Tires

1

BN98822

COUPLING

COUPLER, non brake

1шт.

2

BN98841

SHAFT

Input, 191mm OAL, 12 Teeth on Small End, 13 Teeth on Large End

1шт.

3

BN98821

SPINDLE

#8B

1шт.

1

BN313528

COUPLING

COUPLER splined, brake

1шт.

2

BN98842

SHAFT

Input, 152mm OAL, 12 Teeth on Small End, 13 Teeth on Large End

1шт.

3

BN313477

SPINDLE

Auburn (#8 hub)

1шт.

4

BN98817

SEAL

trash

1шт.

5

BN98810

SEAL

oil

1шт.

Part of Seal Kit, P/N BN98858

1шт.

Part of Seal/BRG Kit, P/N BN98859

1шт.

6

BN98812

ROLLER BEARING

BEARING cone

1шт.

Part of Seal/BRG Kit, P/N BN98859

1шт.

7

9823418

BEARING CUP,130mm OD x 24mm W

1шт.

Part of Seal/BRG Kit, P/N BN98859

1шт.

8

BN98840

BOLT

wheel #8B hub

10шт.

11

BN313469

HUB

Auburn

1шт.

12

BN98825

BEARING CUP

BEARING cup

1шт.

Part of Seal/BRG Kit, P/N BN98859

1шт.

13

BN98826

ROLLER BEARING

BEARING cone

1шт.

Part of Seal/BRG Kit, P/N BN98859

1шт.

14

BN98844

THRUST WASHER

1шт.

15

BN98818

LOCK WASHER

1шт.

Part of Seal Kit, P/N BN98858

1шт.

Part of Seal/BRG Kit, P/N BN98859

1шт.

16

BN98829

LOCK NUT

BEARING nut

1шт.

17

BN98827

RING

retaining

2шт.

18

BN98843

WASHER

thrust

2шт.

19

BN98830

SPRING

1шт.

20

BN69527

RING GEAR

RING gear, 85 teeth, 30:1 n/brake

1шт.

20a

BN69526

RING GEAR

(81 Teeth) 22:1 with Brake

1шт.

21

BN69528

CARRIER

ASSEMBLY sec. carrier 30:1 n/brake, 3 gears, 34 teeth

1шт.

Assembly must be replaced as assembly, this cannot be rebuilt.

1шт.

21a

BN69529

CARRIER

ASSEMBLY sec. carrier 22:1 w/brake, 3 gears, 30 teeth

1шт.

22

BN69530

CARRIER

primary assembly - 30:1 non brake (3 gears, 32 teeth each) (secondary sun gear - 17 teeth)

1шт.

Assembly must be replaced as assembly, this cannot be rebuilt.

1шт.

22a

BN69531

CARRIER

primary assembly - 22:1 with brake (3 gears-30 teeth each) (secondary sun gear - 21 teeth)

1шт.

23

BN69533

SUN GEAR

primary 30:1 non brake (20 teeth)

1шт.

23a

BN69532

SUN GEAR

primary 22:1 with brake (21 teeth)

1шт.

24

BN98501

THRUST WASHER

1шт.

25

BN98728

PLUNGER

disengage

1шт.

26

BN98729

SEAL

plunger

1шт.

Part of Seal Kit, P/N BN98858

1шт.

Part of Seal/BRG Kit, P/N BN98859

1шт.

27

BN302055

COVER

hub - #8

1шт.

28

BN98494

WASHER

flat

12шт.

29

BN98838

BOLT

3/8-16 x 6-3/4", Thread Length 1-1/4", Hex Head

12шт.

30

BN98819

PLUG

pipe

1шт.

31

BN67578

CLAMP

plastic

1шт.

32

BN27372

CAP

hub cover

1шт.

33

BN98506

GASKET

quick release hub

1шт.

Part of 36, P/N BN98850, Quick Disconnect Assembly

1шт.

34

BN98860

COUPLING

Quick Disconnect

1шт.

Part of 36, P/N BN98850, Quick Disconnect Assembly

1шт.

35

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

2шт.

Part of 36, P/N BN98850, Quick Disconnect Assembly

1шт.

36

BN98850

COUPLING

Quick Disconnect Assy, Incl. Ref 33, 34, 35

1шт.

37

BN50817

BOLT

Hex, 1/2"-13 x 3", G8

2шт.

38

BN313465

BRAKE ASSY.

BRAKE, piston assembly, brake

1шт.

39

BN313466

REPAIR KIT

BRAKE, disc pack

1шт.

40

BN313467

O-RING KIT

& gasket, with brake

1шт.

41

BN313471

FLANGED BEARING

Sleeve, w/ brake

1шт.

42

BN313470

GASKET,0.76mm Thk

Auburn

1шт.

43

BN98487

PLUG

magnetic

1шт.

44

BN315228

WHEEL NUT

flange, wheel, 3/4"-16

10шт.

45

BN313500

WASHER

flat

2шт.

ns

BN98858

SEAL KIT

KIT seal, Includes: Ref. 5, 15, 26 and 98809 sealing compound

1шт.

ns

BN98809

SEAL

COMPOUND sealing

1шт.

Part of Seal Kit, P/N BN98858

1шт.

ns

BN98859

WHEEL BEARING KIT

KIT seal/brg, Includes: Ref. 5, 6, 7, 12, 13, 15 and 26

1шт.

ns

BN67984

BEARING LOCK NUT

WRENCH, nut, mod., 8 BNG

1шт.

ns

BN67986

SPINDLE

DRIVER spindle, mod. 7/8

1шт.

ns

BN69011

HUB

#8 Complete, Without Brake, Rear 30:1

1шт.

ns

BN312646

HUB

complete w/brake, FR 22:1

1шт.
