(07-008) - CYLINDERS - BOOM LEVEL (75 BOOM)

Запчасти Case IH SPX3185 (07-008) - CYLINDERS - BOOM LEVEL (75 BOOM) Cylinders

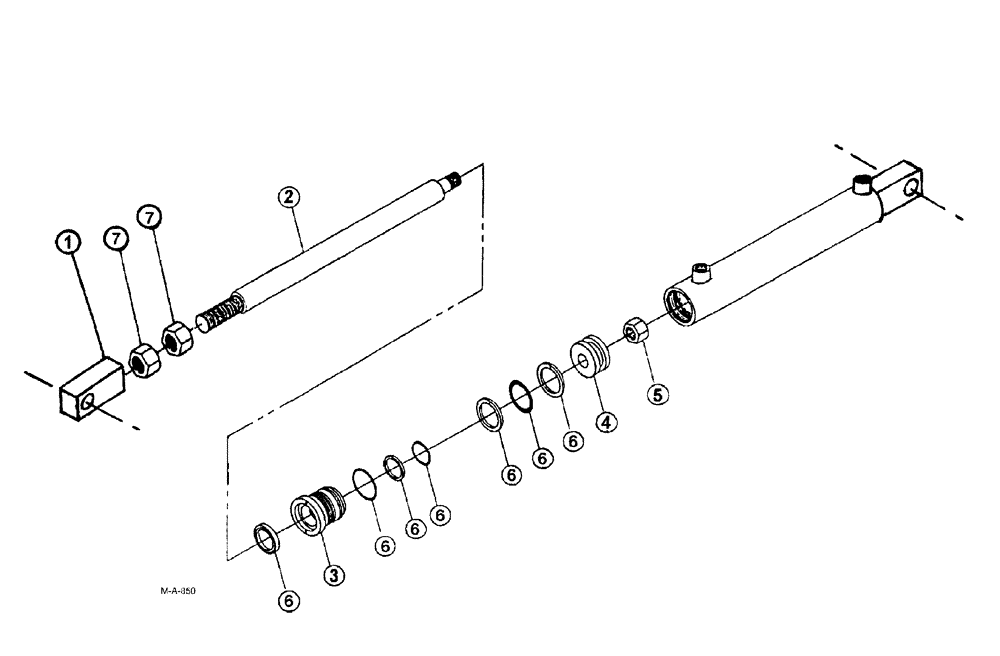

Схема запчастей Case IH SPX3185 - (07-008) - CYLINDERS - BOOM LEVEL (75 BOOM) Cylinders
6
2
6
1
6
5
3
6
4
7
6
7
6
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN98519

CLEVIS

for cylinder BN53806

1шт.

2

BN98520

ROD

for cylinder BN53806

1шт.

3

BN98517

GLAND

end

1шт.

4

BN98518

PISTON

for cylinder BN53806

1шт.

5

BN98093

LOCK NUT

jam

1шт.

6

BN98340

SEAL KIT

KIT seal

1шт.

This is a complete seal kit. Parts shown are for the screw-on end gland. When replacing - take note on how old seals are positioned.

1шт.

7

BN98521

NUT jam

2шт.

Выбрано товаров: 8
