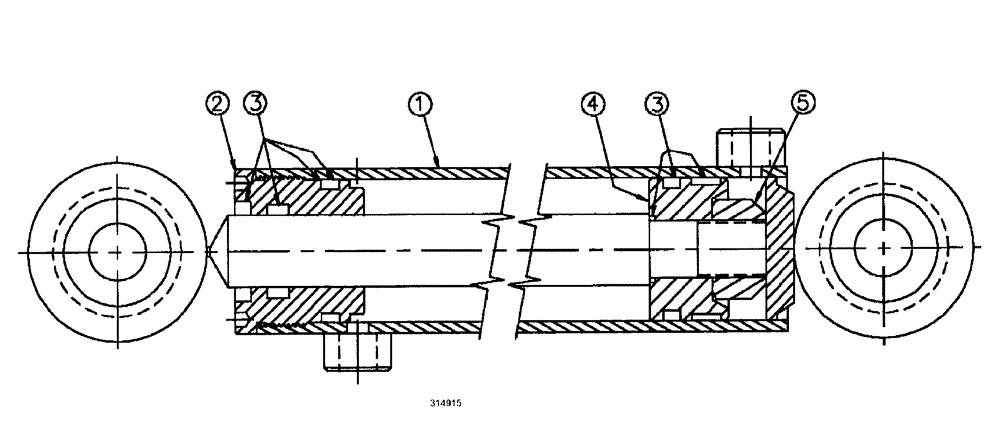

Запчасти Case IH SPX3185 (07-005) - CYLINDERS - INNER BOOM FOLD (90 BOOM) Cylinders

1

BN314923

TUBE

aurelius

1шт.

2

BN69786

GLAND

end

1шт.

3

BN69787

SEAL KIT

1шт.

This is a complete seal kit. Parts shown are for the screw-on end gland. When replacing - take note on how old seals are positioned.

1шт.

4

BN69789

PISTON

1шт.

5

BN69790

LOCK NUT

1шт.

5a

87266303

HYDRAULIC CYLINDER

Boom Pivot RH

1шт.

5a

87266303R

REMAN-HYD CYLINDER

SPX3185 PATRIOT SPRAYER, CYLINDERS - INNER BOOM FOLD (90' BOOM), Boom Pivot RH (10/02-8/04)

1шт.

5a

87266303C

CORE-HYD CYLINDER

Return Number

1шт.

5b

87266302

CYLINDER

Boom Pivot LH

1шт.

87266302R

REMAN-HYD CYLINDER

SPX3185 (10/02-8/04)

1шт.

87266302C

CORE-HYD CYLINDER

Return Number

1шт.
