(07-004) - CYLINDERS - INNER BOOM FOLD (75 BOOM)

Запчасти Case IH SPX3185 (07-004) - CYLINDERS - INNER BOOM FOLD (75 BOOM) Cylinders

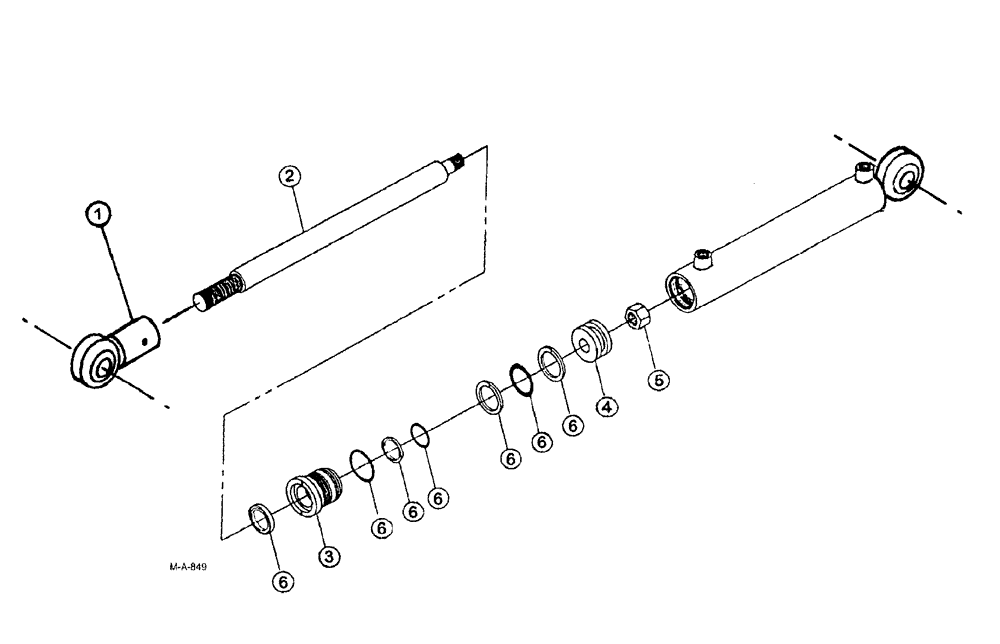

Схема запчастей Case IH SPX3185 - (07-004) - CYLINDERS - INNER BOOM FOLD (75 BOOM) Cylinders
1
4
6
6
6
6
5
3
2
6
6
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN98291

ASSEMBLY

Weldment

1шт.

2

BN98515

SHAFT

ROD cylinder

1шт.

3

BN98522

GLAND

End, For Cylinder BN52305

1шт.

4

BN98523

PISTON

for cylinder BN52305

1шт.

5

BN98093

LOCK NUT

jam

1шт.

6

BN68490

SEAL KIT

KIT seal

1шт.

This is a complete seal kit. Parts shown are for the screw-on end gland. When replacing - take note on how old seals are positioned.

1шт.
