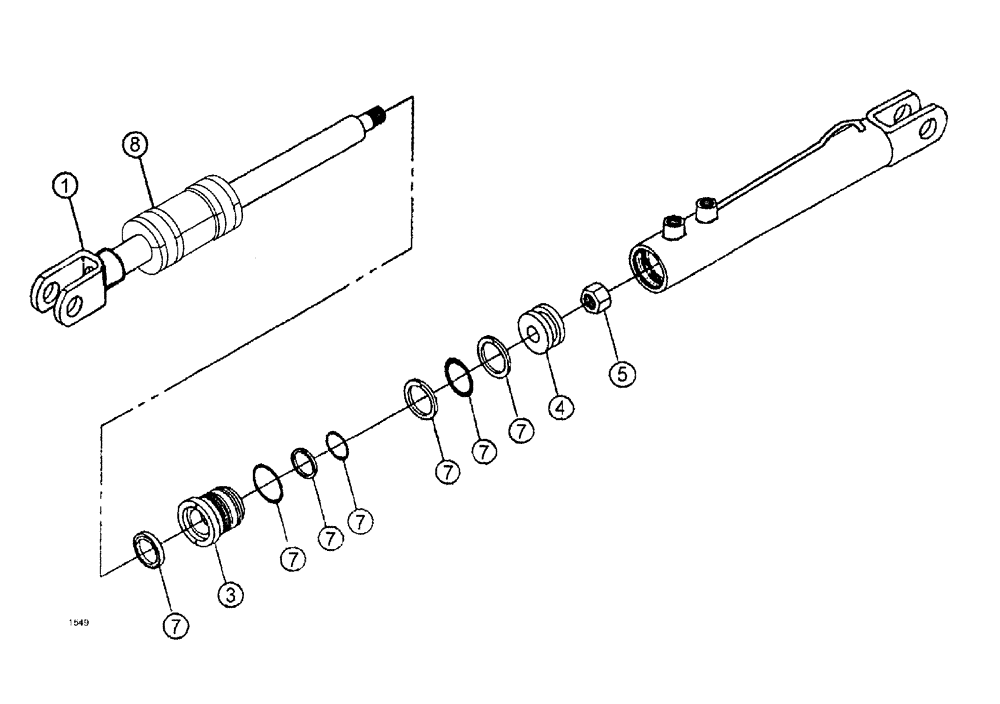

Запчасти Case IH SPX3185 (07-002) - CYLINDERS - AXLE ADJUST Cylinders

1

BN314008

ROD

cylinder

1шт.

3

BN98650

GLAND

end

1шт.

4

BN98651

PISTON

1шт.

5

BN98093

LOCK NUT

jam

1шт.

7

BN98643

SEAL KIT

Hyd. Cylinder (53906)

1шт.

This is a complete seal kit. Parts shown are for the screw-on end gland. When replacing - take note on how old seals are positioned.

1шт.

8

342274A1

STOP DEVICE

Cylinder, 1.25" id x 2"

12шт.
