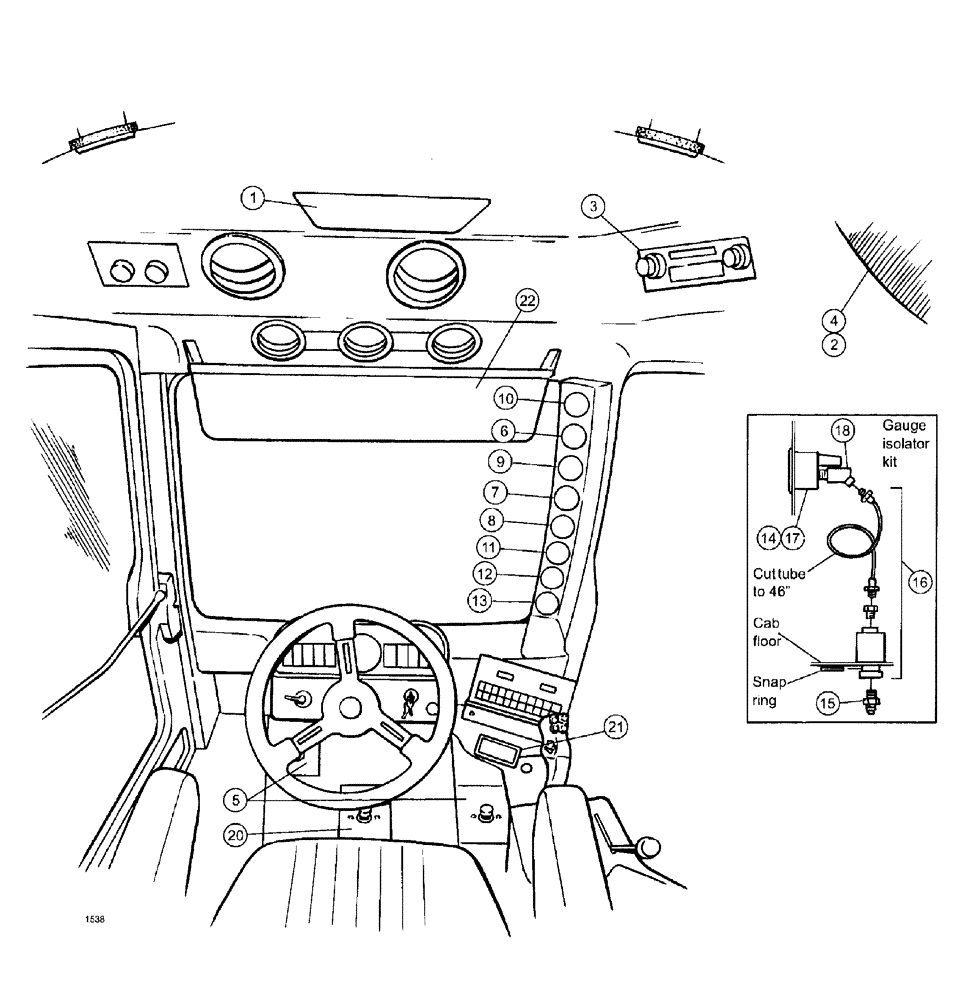

Запчасти Case IH SPX3185 (01-006) - CAB INTERIOR - GAUGES, ACCESSORIES Cab Interior

1

BN67967

CEILING LAMP

Dome, 12V Polycarb

1шт.

1a

BN300876

BULB

Dome, 12 volt

1шт.

2

BN29807

SPACER

9/16" OD x 12 GA x 1/2"

8шт.

3

BN323959

RADIO

RADIO, din mount

1шт.

3a

BN57222

ANTENNA

Radio

1шт.

3b

BN315877

SCREW,1/4" - 20 x 1"

phillip, 1/4-20 x 1", TH, SS, BLK

4шт.

3c

BN323695

BRACKET, SUPPORTING

MOUNT radio

1шт.

3d

BN323834

PLATE

radio mount

1шт.

3e

BN55359

LOCK NUT,1/4"-20, SS

4шт.

3f

BN311133

BRACKET

Antenna, Radio

1шт.

4

BN57220

SPEAKER

JVC, set of 2

1шт.

5

BN29522

SWITCH

LH Side, Dimmer, Floor Mount, RH Side Boom Section Valve

2шт.

5a

BN29807

SPACER

9/16" OD x 12 GA x 1/2"

2шт.

5b

280129

NUT,1/4"-20

2шт.

5c

BN67593

COVER

12 GA HRS 5.5 x 6.5

1шт.

5d

BN50205

BOLT

1/4"-20 x .625, TH, SS

4шт.

6

BN67301

FUEL GAUGE

level 12V.N.G.

1шт.

6a

BN301818

BULB

12V (1.12" Long)

1шт.

7

BN67302

ELECTRICAL GAUGE

temp 280 deg. 12V.NG

1шт.

7a

BN301818

BULB

12V (1.12" Long)

1шт.

8

BN67303

ELECTRICAL GAUGE

oil press. 100 PSI

1шт.

8a

BN301818

BULB

12V (1.12" Long)

1шт.

9

BN67304

ELECTRICAL GAUGE

volt, 12VDC/10-16

1шт.

9a

BN301818

BULB

12V (1.12" Long)

1шт.

10

326944A1

HOURMETER

LCD, 12V, Years: -01-OCT-06

1шт.

10

BN2397660

PLUG

Dash 2" #2403, Start Year: 01-OCT-06

1шт.

11

BN68268

GAUGE

Boom pressure

1шт.

Includes Refs. 14, 15, 16 & 18

1шт.

12

BN68269

GAUGE

Sparge pressure

1шт.

Includes Refs. 15, 16, 17 & 18

1шт.

13

BN2397660

PLUG

Dash 2" #2403

1шт.

14

BN67308

GAUGE

boom pressues, 0-200

1шт.

Bulb # BN301819 (1.06" long) must be used in pressure gauges for REF. numbers 14, 17 and 19 because of internal interference with a longer bulb.

1шт.

Part of Ref. 11 Gauge Boom Pressure Assembly, P/N BN68268

1шт.

14a

BN301819

BULB

12V (Short-1.06")

1шт.

15

BN441001

ADAPTER

PIPE, 37 flare, 06-04

2шт.

Part of Ref. 11 Gauge Boom Pressure Assembly, P/N BN68268

1шт.

Part of Ref. 12 Gauge Foam Pressure Assembly, P/N BN68269

1шт.

16

BN67300

ISOLATOR

KIT gauge

2шт.

Part of Ref. 11 Gauge Boom Pressure Assembly, P/N BN68268

1шт.

Part of Ref. 12 Gauge Foam Pressure Assembly, P/N BN68269

1шт.

17

BN304843

GAUGE

pressure, sparge

1шт.

Bulb # BN301819 (1.06" long) must be used in pressure gauges for REF. numbers 14, 17 and 19 because of internal interference with a longer bulb.

1шт.

Part of Ref. 12 Gauge Foam Pressure Assembly, P/N BN68269

1шт.

17a

BN301819

BULB

12V (Short-1.06")

1шт.

18

BN68256

ELBOW

45DEG. 1/8 NPT, female

3шт.

Part of Ref. 11 Gauge Boom Pressure Assembly, P/N BN68268

1шт.

Part of Ref. 12 Gauge Foam Pressure Assembly, P/N BN68269

1шт.

Part of Ref. 13 Gauge Foam Pressure Assembly, P/N BN38270

1шт.

19

BN67307

ELECTRICAL GAUGE

foam press., 0-80

1шт.

Bulb # BN301819 (1.06" long) must be used in pressure gauges for REF. numbers 14, 17 and 19 because of internal interference with a longer bulb.

1шт.

Part of Ref. 13 Gauge Foam Pressure Assembly, P/N BN38270

1шт.

19a

BN301819

BULB

12V (Short-1.06")

1шт.

20

BN68440

SWITCH

Load Share

1шт.

20a

BN29807

SPACER

9/16" OD x 12 GA x 1/2"

2шт.

20b

280129

NUT,1/4"-20

2шт.

20c

BN67593

COVER

12 GA HRS 5.5 x 6.5

1шт.

21

BN66127

ASH TRAY

1шт.

22

BN67055

SUN VISOR

Plastic, 33"

1шт.

22a

BN314732

BRACKET

Visor, LH

1шт.

22b

BN314731

BRACKET

Visor, RH

1шт.

22c

BN304238

MOUNTING PARTS

WELDMENT, bracket, RR

1шт.

22d

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

22e

BN312062

MOUNTING PARTS

WELDMENT, bent bracket, LR

1шт.

22f

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.

22g

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.
