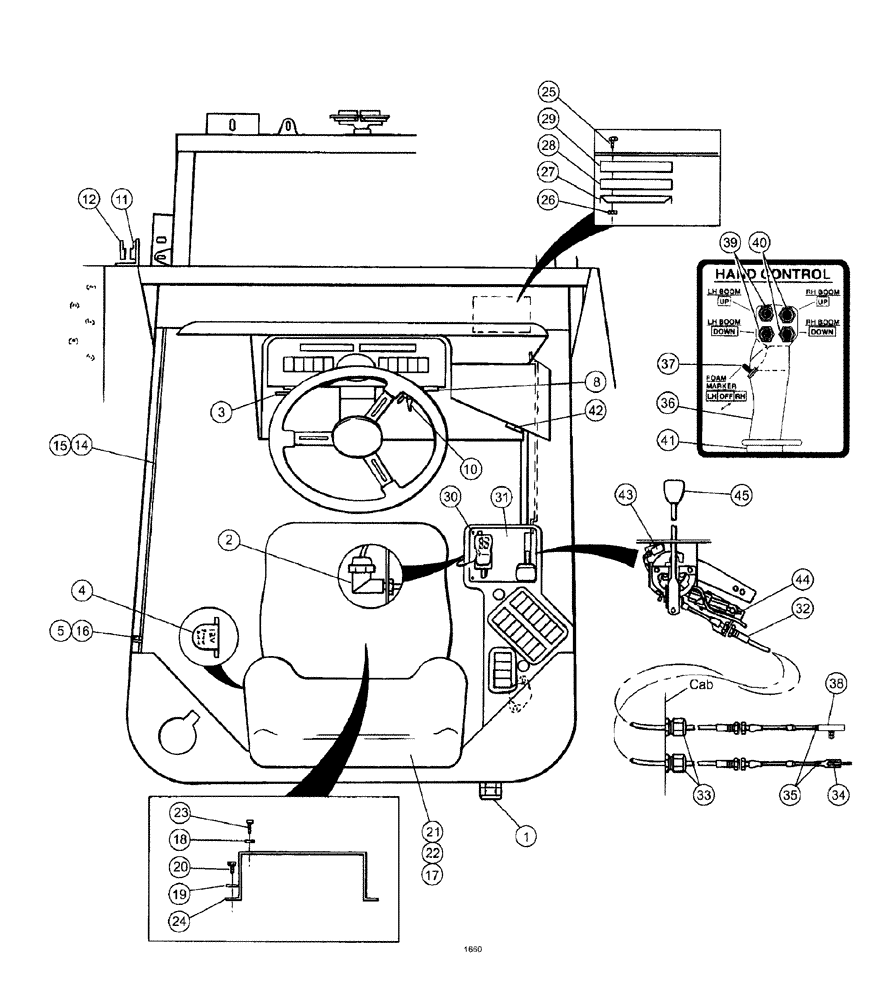

Запчасти Case IH SPX3185 (01-004) - CAB INTERIOR - CONTROLS, ELECTRICAL Cab Interior

1

BN66132

GROMMET

strain relief, bat.

1шт.

2

BN29523

ELBOW

Fitting - Electric-Liquid Tight

1шт.

3

BN63712

FLASHER SWITCH

Dual rate w/handle

1шт.

4

BN67965

POWER SOCKET

Assy, Outlet w/End

1шт.

5

BN67968

SWITCH

Door (Dome Light)

1шт.

5a

BN50975

NUT

#8-32 (Steel)

2шт.

5b

BN52046

BOLT,Pan Hd, Phil, #8 - 32 x 1/2", Stainless

8"-32 x 1/2" SS, PH, Phillip

2шт.

8

BN319663

BUZZER

Chime Tone

1шт.

10

334554A1

SWITCH

ignition, with 2 keys

1шт.

10a

BN196-48-31C2

KEY, IGNITION

2-Case logo

1шт.

11

BN315498

SWITCH

proximity

1шт.

11a

614-4012

BOLT,Hex, M4 x 0.7 x 12mm, Cl 8.8, Full Thd

2шт.

11b

BN315198

WASHER

SS, FW, M4

2шт.

11c

385681

NUT,M4 x 0.7, Cl 8

2шт.

12

342197A1

SENSOR

position

1шт.

12a

BN68260

SCREW,Hex, #4 - 40 x 1/2", Gr 5

HH, #4-40 x .50, G5, PL

2шт.

12b

BN68261

WASHER

#4, Flat, G5, PL

2шт.

12c

BN50125

NUT

4-40, HH, G5, Plated

2шт.

14

BN52047

SCREW,Phil Pan Hd, #8 x 3/4", SST

#8 x 3/4 SS, PH, Phillip

4шт.

15

BN67371

STRIP

Door Stop

1шт.

16

BN69132

EXTENSION

SWITCH, domelight

1шт.

17

BN29361

SAFETY BELT

Retractable BL

1шт.

18

BN50141

WASHER

flat plated, 5/16

4шт.

19

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

20

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

6шт.

21

BN68850

SET OF BELTS,14.00" L

2, Set

1шт.

22

BN309290

SEAT ASSY.

air suspension

1шт.

22a

BN301702

SHOCK ABSORBER

Seat

1шт.

22b

BN301703

ARMREST

Package, Gray

1шт.

22c

BN303238

HANDLE

height adjust

1шт.

23

BN69005

BOLT,Skt Hd, 5/16" x 1"

Sk Hd, 5/16" x 1"

4шт.

24

BN69009

BRACKET

WELDMENT, seat mount

1шт.

25

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

26

280736

NUT,5/16"-18, GC

2шт.

27

BN68264

COVER

14GA, HRS, 6.25 x 8.5

1шт.

28

BN68265

RUBBER SEAL

rubber, 1 x 5 x 7

1шт.

29

BN68266

RUBBER SEAL

1 x 5 x 7

1шт.

30

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

4шт.

31

BN68263

CONTROL

shift & throttle

1шт.

32

BN29257

CABLE,Throttle Cable, 2133.6mm L

Control, 84" (Throttle)

1шт.

32

BN29256

CABLE,2438.4mm L

Control, 96" (Hydro)

1шт.

33

BN66117

NUT

Cable strain relief-switch

2шт.

34

BN29258

CLEVIS

Assembly With Pin

1шт.

35

86509309

NUT,1/4"-28, G5

2шт.

36

BN66114

HANDLE

W/Switches (Complete)

1шт.

37

BN98892

SWITCH

Toggle, On-Off-On (Foam Marker)

1шт.

37a

BN98894

JAM NUT

jam, black, 15/32

1шт.

37b

BN98893

BOOT

Toggle, black

1шт.

38

NS

NOT SERVICED

JOINT ball, throttle

1шт.

See Fig. 03-074

1шт.

39

BN98670

SWITCH

Push Button (LH Boom Function)

2шт.

39a

BN98673

BOOT

Yellow

2шт.

40

BN98670

SWITCH

Push Button (RH Boom Function)

2шт.

40a

BN98672

BOOT

Green

2шт.

41

BN29986

INSERT

Grip, 1" Dia x 1.6" Nylon

1шт.

42

BN16018

ALARM

Low Hopper

1шт.

43

BN98249

NEUTRAL START SWITCH

Micro Safe

1шт.

44

BN98248

SWITCH

Backup

1шт.

45

BN98247

KNOB

ASSEMBLY

1шт.
