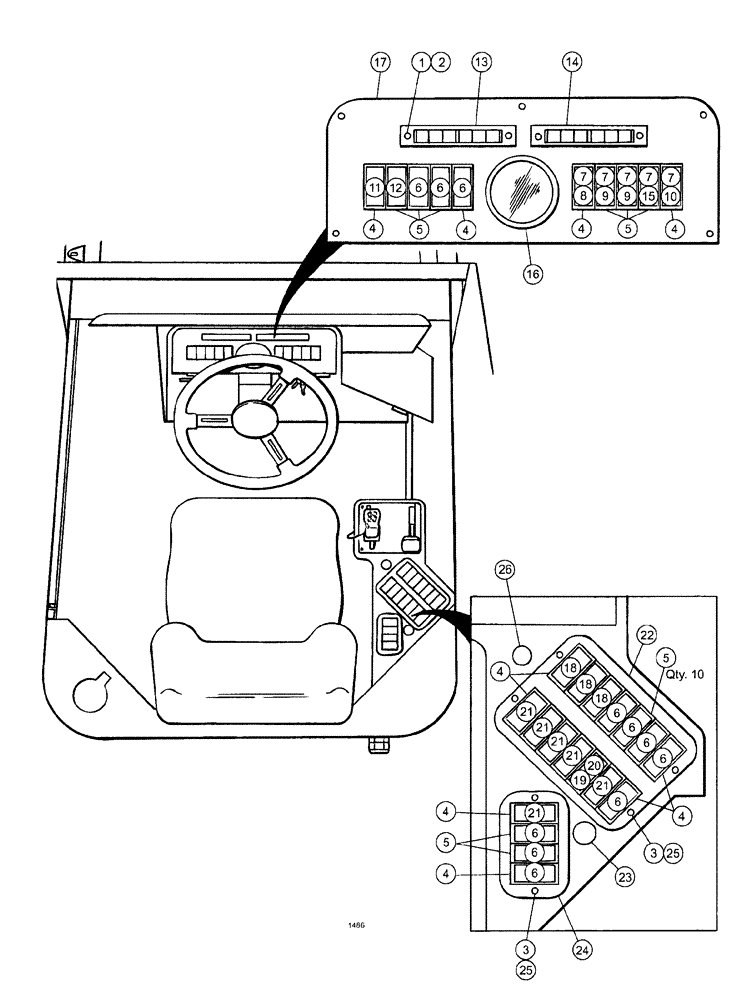

Запчасти Case IH SPX3185 (01-002) - CAB INTERIOR - CONTROL PANELS Cab Interior
№
Артикул
Название
Примечание
Количество
1
BN50795
NUT
hex, #8-32 (Steel)
4шт.
2
BN52046
BOLT,Pan Hd, Phil, #8 - 32 x 1/2", Stainless
8"-32 x 1/2" SS, PH, Phillip
4шт.
3
BN52047
SCREW,Phil Pan Hd, #8 x 3/4", SST
#8 x 3/4 SS, PH, Phillip
11шт.
4
BN65931
PANEL
Switch Mount, End
10шт.
5
BN65932
PANEL
Switch Mount, Middle
18шт.
6
BN65933
PLUG
Switch Mount Panel
11шт.
7
BN65934
SWITCH
Single Pole, On-Off
5шт.
8
BN65935
LIGHT SWITCH
Actuator (Road lights)
1шт.
9
BN65936
ROCKER
Actuator - Floodlight Switch
2шт.
10
BN65937
ROCKER
Actuator - Domelight Switch
1шт.
11
BN311377
SWITCH
handle, on-off, parking brake
1шт.
12
BN65940
SWITCH
W/Handle Off-On-On (Wiper)
1шт.
13
BN65943
INDICATOR LIGHT
Cluster, LH (6)
1шт.
13a
BN301816
BULB
12V
6шт.
13b
BN301817
SOCKET
Bulb, For BN65943/44
6шт.
14
BN65944
INDICATOR LIGHT
Cluster, RH (6)
1шт.
14a
BN301816
BULB
12V
6шт.
14b
BN301817
SOCKET
Bulb, For BN65943/44
6шт.
15
BN65946
ROCKER
Hazard Warning
1шт.
16
BN67305
TACHOMETER
0-4000
1шт.
16a
BN301813
BULB
12 V
1шт.
16b
BN301814
SOCKET
Light
1шт.
16c
BN301815
LIGHT
Filter, Lamp, Green
1шт.
17
BN68649
INSTRUMENT PANEL
Dash
1шт.
17a
BN319894
FASTENER
"U" , #8 SCR/.12 panel
6шт.
18
BN65934
SWITCH
Single Pole, On-Off, Boom shutoff
3шт.
18a
BN65938
ROCKER
Actuator - Switch (Boom Shutoff)
3шт.
19
BN65934
SWITCH
Single Pole, On-Off, Liquid pump
1шт.
20
BN65938
ROCKER
Actuator - Switch (Liquid Pump)
1шт.
21
BN65942
SWITCH
W/Handle On-Off-On (Inner-Outer Boom Fold, Boom Height Sparge, Axle Adj.)
6шт.
21a
BN302318
TOOL
Switch Removal
1шт.
22
BN310117
PLATE
MOUNT, 14GA, HRS 6.5 x 7.75
1шт.
22a
BN319894
FASTENER
"U" , #8 SCR/.12 panel
4шт.
23
BN301708
CONTROL
Pressure, Foam Marker
1шт.
24
BN66267
PLATE
Mount, 14 GA Hrs, 3.37 x 5.62
1шт.
24a
BN319894
FASTENER
"U" , #8 SCR/.12 panel
4шт.
25
BN67971
FASTENER
#8 tinnerman
6шт.
26
342465A1
SWITCH
range select
1шт.
Выбрано товаров: 38
