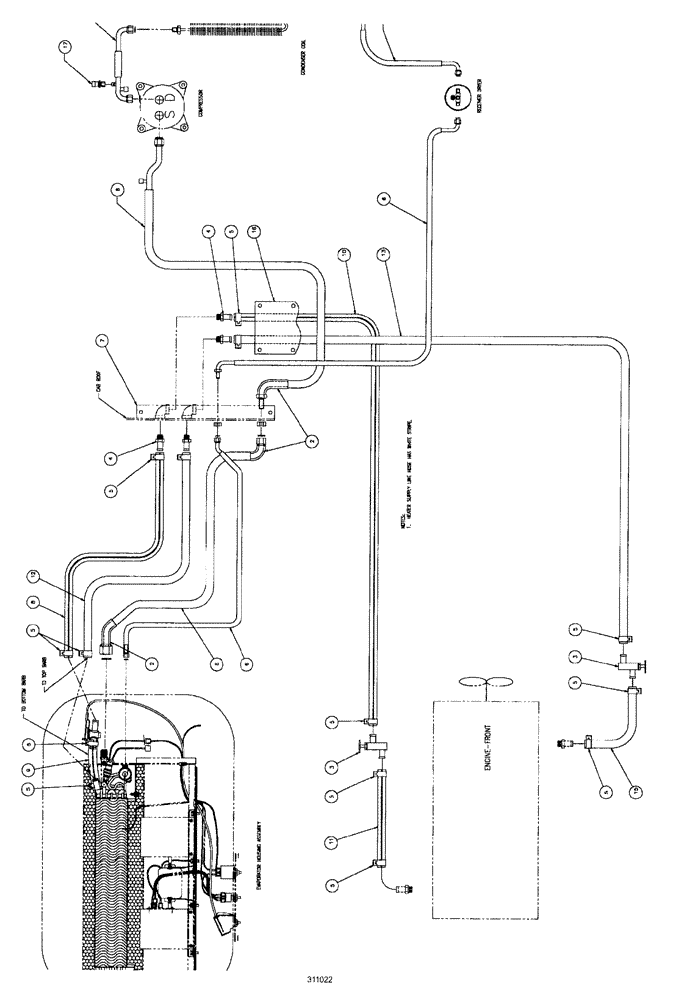

Запчасти Case IH SPX3185 (02-008) - CAB EXTERIOR - A/C HOSE PACKAGE Cab Exterior

1

BN29908

TEE

5/8" Flushing, Heater Hose

1шт.

2

BN306271

TAPE

tar, 10"

3шт.

3

BN303666

VALVE

shut off

2шт.

4

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

4шт.

Part available only through Case's Global After Sales Organization.

1шт.

5

1954736C1

HOSE CLAMP,#24

17шт.

Part available only through Case's Global After Sales Organization.

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE KIT, A\C CUMMINS

1шт.

See Fig. 02-010

1шт.

7

BN312080

COVER

Hose, w/hardware

1шт.

7a

BN52339

BOLT

3/8-16 X .5, HH, SS

2шт.

7b

BN67163

COVER

1шт.

8

BN306812

HOSE,0.63" ID

x 6"

1шт.

9

BN67789

HEATER HOSE,0.625" ID

1шт.

10

BN312076

HEATER HOSE,0.625" ID x 192.00"

Supply

1шт.

11

BN312078

HEATER HOSE

5/8" ID x 24" Supply

1шт.

12

BN67788

HEATER HOSE,0.625" ID

1шт.

13

BN67790

HEATER HOSE,0.625" ID

1шт.

14

BN312079

HEATER HOSE,0.625" ID x 3.00"

Return

1шт.

15

BN312077

HEATER HOSE,0.625" ID x 12.00"

Return

1шт.

16

BN312081

COVER

ENCLOSURE hose, W/HDWE

1шт.

16a

BN67233

COVER

Enclosure

1шт.

16b

BN68503

SCREW,Hex, Slotted, 1/4" x 1/2"

hex, SL, HD, 1/4 x 1/2

10шт.

17

87000227

SWITCH, A/C HIGH PRE

High N.C.

1шт.

Part available only through Case's Global After Sales Organization.

1шт.
