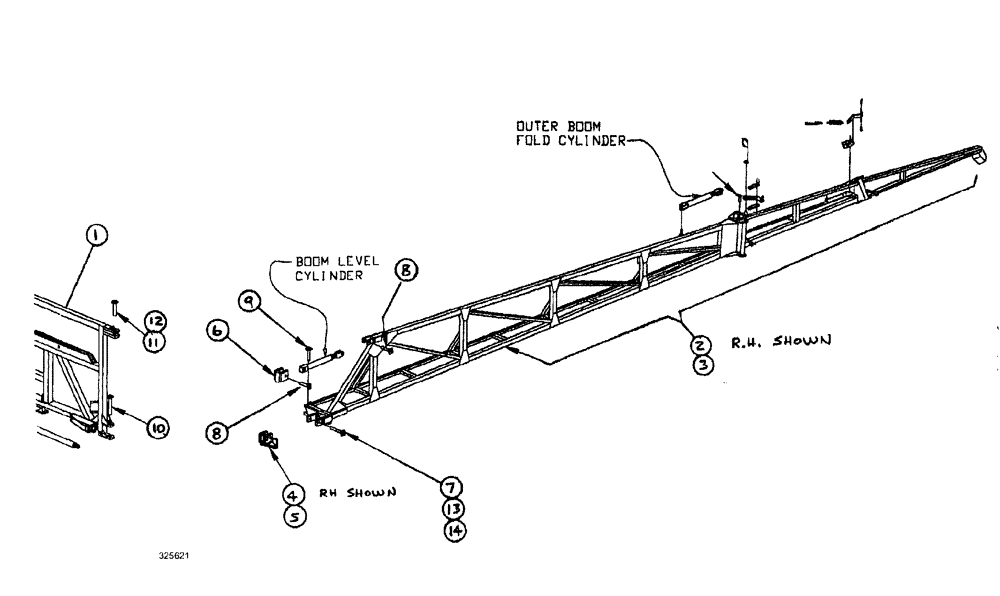

Запчасти Case IH SPX3185 (08-010) - BOOMS - BOOM GROUP, 90 (09) - BOOMS

1

GRP center sec., 90', 785, see Figure 08-017

1шт.

2

GRP boom, RH, 90', 785, see Figure 08-013

1шт.

3

GRP boom, LH, 90', 785, see Figure 08-015

1шт.

4

342088A1

BRACKET

pivot, RH (BM) 1.25"

1шт.

5

342089A1

BRACKET

pivot, LH (BM) 1.25"

1шт.

6

BN66521

HINGE

Weldment, Upper Boom

2шт.

7

342260A1

PIN,31.75mm OD x 203.2mm L

pivot, inner boom

2шт.

8

BN66860

PIN

Weldment 1.00 x 4.00

4шт.

9

BN324141

PIN

boom pivot

2шт.

10

BN65220

PIN

Weldment, 1.25" x 6.875

2шт.

11

BN300279

PIN

1 1/4" X 4 1/2"

2шт.

12

BN52330

PIN, ROLL

1/4 x 1-3/4

10шт.

13

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

1шт.

14

88902

NUT,3/8"-16

2шт.
