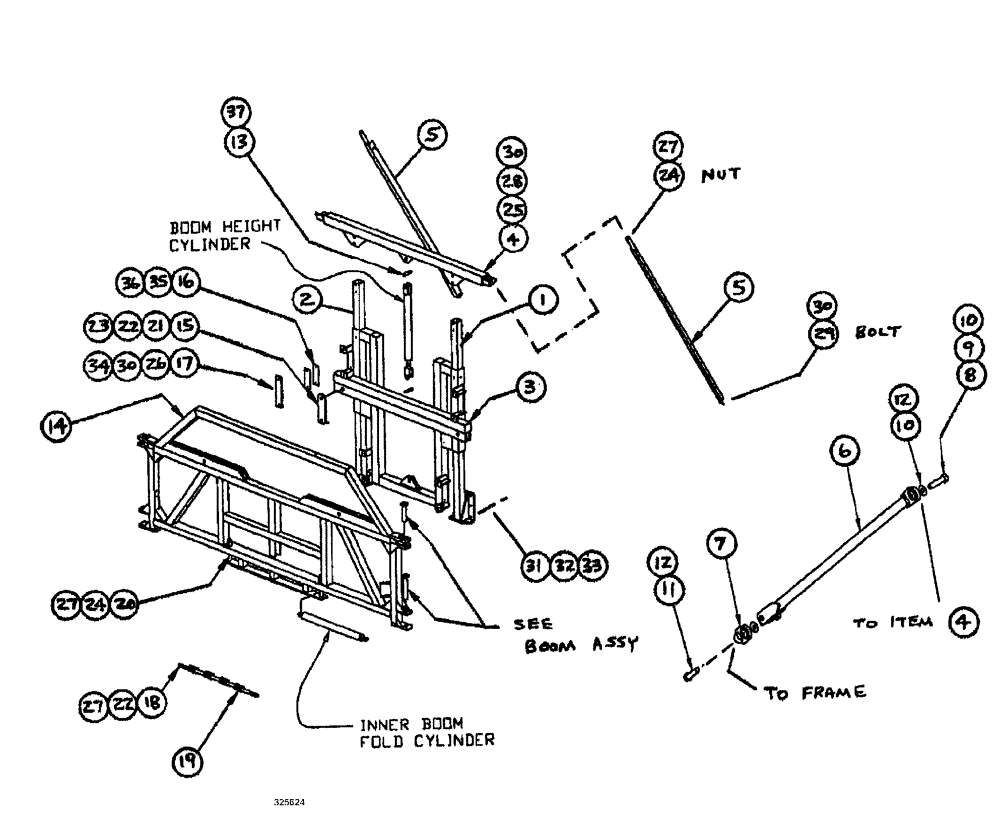

Запчасти Case IH SPX3185 (08-008) - BOOMS - CENTER SECTION GROUP, 75 (09) - BOOMS

1

BN67207

SLIDE

Weldment, Rail RH

1шт.

2

BN67206

SLIDE

Weldment, Rail LH

1шт.

3

BN67216

RACK

Weldment, Center Boom

1шт.

4

342503A1

BRACKET, SUPPORTING

hanger, slide rail

1шт.

5

342261A1

SUPPORT

boom rail

2шт.

6

342506A1

TUBE

mast

1шт.

7

BN325812

BRACKET

MOUNT wldmt, adj, uniball

1шт.

8

342083A1

PIN

mast support

2шт.

9

BN50625

COTTER PIN

PIN cotter, 1/4 x 2

2шт.

10

95-81139

WASHER,1.31" ID x 2" OD x 0.11" Thk

5шт.

11

426-1632

BOLT,Hex, 1" - 8 x 2", Gr 8

1шт.

12

87016611

WASHER,32.8mm ID x 56.5mm OD x 5mm Thk

3шт.

13

86632567

HEADED PIN,30.14mm OD x 66.55mm L

2шт.

14

BN09256

BOOM

center section

1шт.

15

BN29505

HANGER

3/4 x 3 HRFB x 10.50

4шт.

16

BN23267A

SLIDER

Nylatron .5 x 2.0 x 7.0

8шт.

17

BN67049

HANGER

Weldment, Mount Center Section

4шт.

18

BN21197

SHAFT

1" x 36"

1шт.

19

BN27328

SPRING

Compression, 1.75" od x11"

2шт.

20

280256

BOLT,Hex, 1" - 8 x 7-1/2", Gr 5

2шт.

21

BN50363

BOLT

hex head, 1-14 x 6, 5, PL

4шт.

22

87529238

WASHER,1.06" ID x 2" OD x 0.13" Thk

1.0625 x 2 x 0.134 HTS DOR

20шт.

23

425-1516

JAM NUT,Jam, 1"-14, G5

8шт.

24

BN50092

NUT

Hex, 1"-8 UNC, Plated, G5

4шт.

25

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

4шт.

26

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

27

87553819

JAM NUT

1"-8 Hex, Jam

18шт.

28

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

16шт.

29

BN55235

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

4шт.

30

86992215

LOCK NUT,1/2"-13, GC

16шт.

31

50726

BOLT Hex, 5/8"-18 x 2", G5

12шт.

32

BN50155

WASHER,17.48mm ID x 44.45mm OD x 3.05mm Thk

5/8", G5

15шт.

33

BN50775

LOCK NUT

5/8"-18 UNF Center

12шт.

34

BN50595

WASHER,1/2", Stainless

40шт.

35

BN50930

BOLT,5/16"-18 x 1.5", EH, DOR

16шт.

36

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

16шт.

37

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16 x 2

2шт.

37a

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

10шт.

37b

NSS

NOT SOLD SEPARAT

GRP smv, sprayer

1шт.

See Fig. 08-019

1шт.

37c

BN50146

WASHER,3/8", Stainless

4шт.

37d

BN570022

CLAMP

vinyl coated 1/2"

4шт.

37d

BN65609

SEAL

Star, 7/16 Ex Int

4шт.
