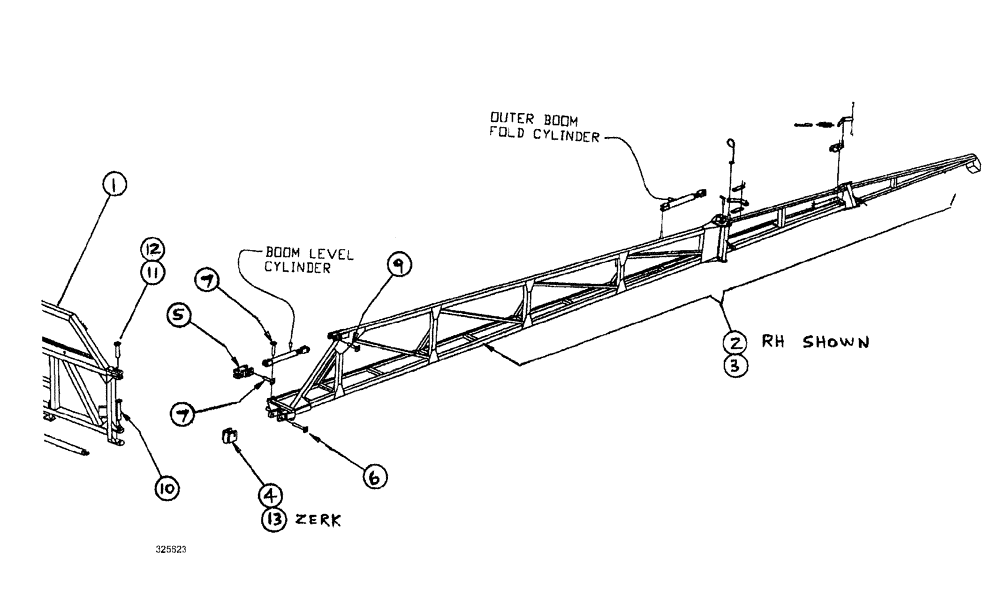

Запчасти Case IH SPX3185 (08-002) - BOOMS - BOOM GROUP, 75 (09) - BOOMS

1

GRP center sec., 75'-,785, see Figure 98-009

1шт.

2

ASSEMBLY, RH boom, 75' STD., see Figure 08-005

1шт.

3

ASSEMBLY, LH boom, 75' STD., see Figure 08-007

1шт.

4

342516A1

PIVOT

lower, 75' boom

2шт.

5

BN300282

KIT

Swivel Assembly

2шт.

6

BN65153

PIN

1.00 x 6.25

2шт.

7

BN65152

PIN

1.00 x 4.75

4шт.

9

BN65154

PIN

1. 00 x 3.75

2шт.

10

BN65220

PIN

Weldment, 1.25" x 6.875

2шт.

11

BN300279

PIN

1 1/4" X 4 1/2"

2шт.

12

BN52330

PIN, ROLL

1/4 x 1-3/4

12шт.

13

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

4шт.
