Запчасти Case IH SPX3185 (02-006) - CAB EXTERIOR - A/C PACKAGE Cab Exterior

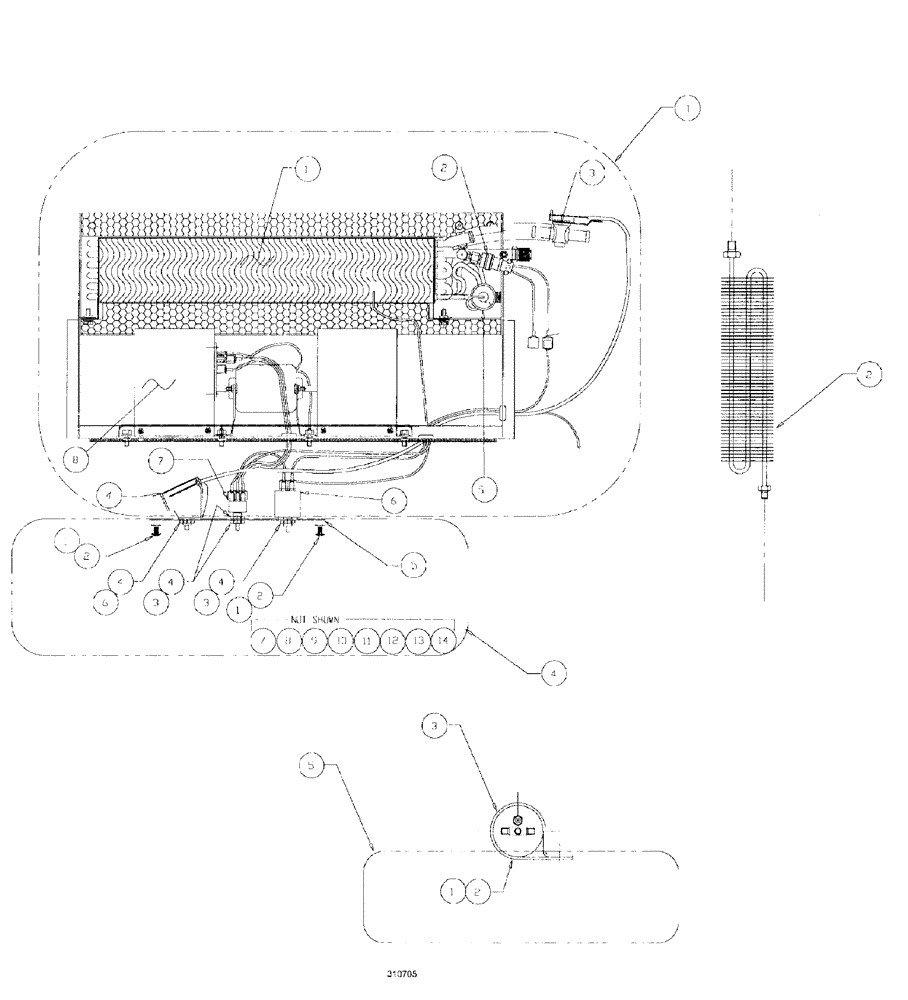

Схема запчастей Case IH SPX3185 - (02-006) - CAB EXTERIOR - A/C PACKAGE Cab Exterior
4
2
9
1
14
4
1
2
3
5
2
8
3
5
4
6
2
7
6
2
8
3
5
1
1
12
1
13
4
7
3
10
4
11

Артикул

Название

Примечание

Количество

1

BN311013

HOUSING ASSY.

evaporator

1шт.

See Refs. 1 - 8 below

1шт.

2

BN67785

CONDENSER

Coil

1шт.

3

BN67797

RECEIVER-DRYER

1шт.

4

BN311014

PACKAGE

parts, louver & misc

1шт.

See Refs. 1 - 14 below

1шт.

5

BN311024

PACKAGE

parts, dryer

1шт.

See Refs. 1 - 2 below

1шт.

1

BN311015

EVAPORATOR

COIL heater

1шт.

Housing assy. BN311013

1шт.

2

BN69702

PRESSURE SWITCH

Low, Evaporator

1шт.

Housing assy. BN311013

1шт.

3

BN69708

VALVE

Water, Inline, Evaporator

1шт.

Housing assy. BN311013

1шт.

4

BN311016

CABLE

ASSEMBLY, push pull, evaporator

1шт.

Housing assy. BN311013

1шт.

5

BN69872

VALVE, THERMAL EXPAN,Air Conditioing

Expansion , Evaporator

1шт.

Housing assy. BN311013

1шт.

6

BN69703

SWITCH

Cold Control, Evaporator

1шт.

Housing assy. BN311013

1шт.

7

73107110

BLOWER SWITCH

3 Speed

1шт.

Housing assy. BN311013

1шт.

8

BN69704

BLOWER

12V, Evaporator

1шт.

Housing assy. BN311013

1шт.

1

BN311017

LOCK WASHER

1/4, ext-tooth

4шт.

Parts pkg.-louver & misc. BN311014

1шт.

2

BN312682

SCREW,Phil, 1/4" - 20 x 1"

PHIL, 1/4-20 x 1" T.H.

4шт.

Parts pkg.-louver & misc. BN311014

1шт.

3

BN67731

NUT

control mtg

3шт.

Parts pkg.-louver & misc. BN311014

1шт.

4

BN67740

KNOB

control

3шт.

Parts pkg.-louver & misc. BN311014

1шт.

5

BN311018

PLATE

CONTROL, w/decal

1шт.

Parts pkg.-louver & misc. BN311014

1шт.

6

BN312683

NUT

cable control

1шт.

Parts pkg.-louver & misc. BN311014

1шт.

7

BN67735

VENT

LOUVER 1, 1/4 x 4 1/2 rect

4шт.

Parts pkg.-louver & misc. BN311014

1шт.

8

BN67734

VENT

LOUVER, w/hose adapter

2шт.

Parts pkg.-louver & misc. BN311014

1шт.

9

BN67732

VENT

LOUVER, 3" dia. flat

2шт.

Parts pkg.-louver & misc. BN311014

1шт.

10

BN67795

HOSE

Windshield Louvers, 3"

2шт.

Parts pkg.-louver & misc. BN311014

1шт.

11

BN306271

TAPE

tar, 10"

3шт.

Parts pkg.-louver & misc. BN311014

1шт.

12

BN67796

TUBE

poly loom drain

3шт.

Parts pkg.-louver & misc. BN311014

1шт.

13

BN311023

VENT

LOUVER,4" dia., w/wire clip

5шт.

Parts pkg.-louver & misc. BN311014

1шт.

14

BN312684

CLAMP

hose, 3" flex

4шт.

Parts pkg.-louver & misc. BN311014

1шт.

1

BN301704

DECAL

Charge With 134A Gas

1шт.

Parts pkg. dryer BN311024

1шт.

2

BN67726

CLAMP

reciever dryer

1шт.

Parts pkg. dryer BN311024

1шт.

Выбрано товаров: 56
