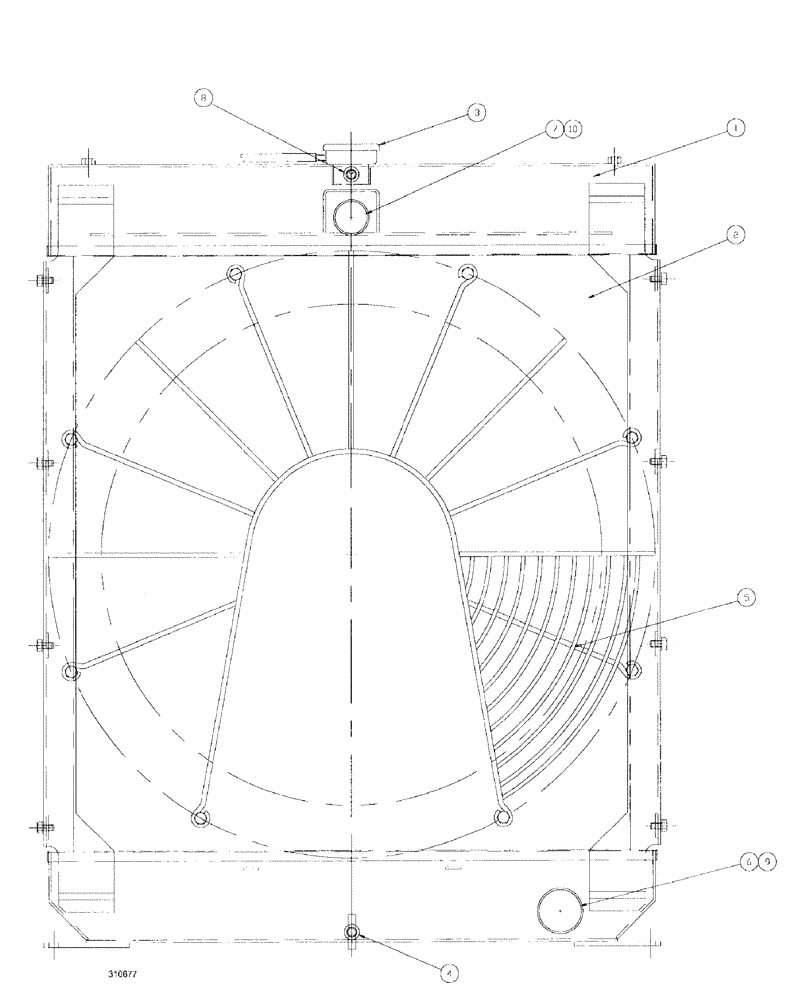

Запчасти Case IH SPX3185 (03-082) - ENGINE - RADIATOR ASSEMBLY (01) - ENGINE

1

BN315812

RADIATOR

GTI #2804E Assembly

1шт.

2

BN316884

SHROUD

radiator, 26" fan

1шт.

3

BN310678

RADIATOR CAP

15 PSI

1шт.

4

BN68738

HYDRAULIC VALVE

VALVE radiator drain w/90

1шт.

5

BN69653

GUARD

fan, radiator

1шт.

6

BN310616

RADIATOR HOSE,2.25" ID, SAE 20R4

Lower radiator

1шт.

7

BN310617

RADIATOR HOSE,1.75" ID x 17.88", SAE 20R4

Upper radiator

1шт.

8

BN311456

VENT

Pkg., Radiator

1шт.

8a

BN53433

FITTING

HOSEBARB, 1/4 MPT x 1/4

1шт.

Part available only through Case's Global After Sales Organization.

1шт.

8b

BN311451

FUEL HOSE,6.35 mm ID x 813.00 mm, SAE 30R7

fuel 1/4" ID x 32"

1шт.

8c

BN76094

HOSE CLAMP

SS #M4

2шт.

9

J918521

HOSE CLAMP,59mm - 83mm

59-83 mm

2шт.

Part available only through Case's Global After Sales Organization.

1шт.

10

J922847

CLAMP

rad hose, 40-64 mm

2шт.

Part available only through Case's Global After Sales Organization.

1шт.

ns

BN65181

RETAINER

rad drain hose

1шт.
