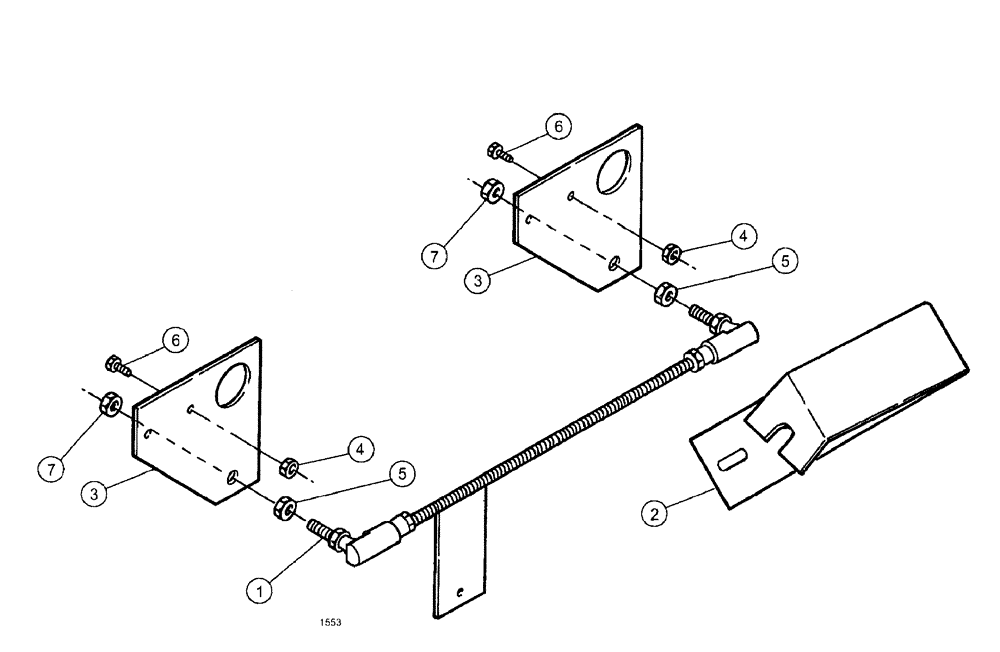

Запчасти Case IH SPX3185 (03-081) - ENGINE - HYDROSTAT LINKAGE PACKAGE (01) - ENGINE

1

BN24907

LINKAGE

Rod Assembly, Hydrostat

1шт.

BN24906

ROD

Linkage

1шт.

D149295

BALL JOINT,3/8"

3/8"-24 Ends

2шт.

86509310

NUT,3/8" - 24, Gr 5

2шт.

2

BN24921

BRACKET

Mount-1/4" Hr 1.75 x 10.70

1шт.

3

BN25901

BRACKET

7 ga. 3" x 3" 304 SS

2шт.

4

280129

NUT,1/4"-20

4шт.

5

86509310

NUT,3/8" - 24, Gr 5

2шт.

6

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

7

BN50995

LOCK NUT

3/8"-24 UNF, Centerloc

2шт.
