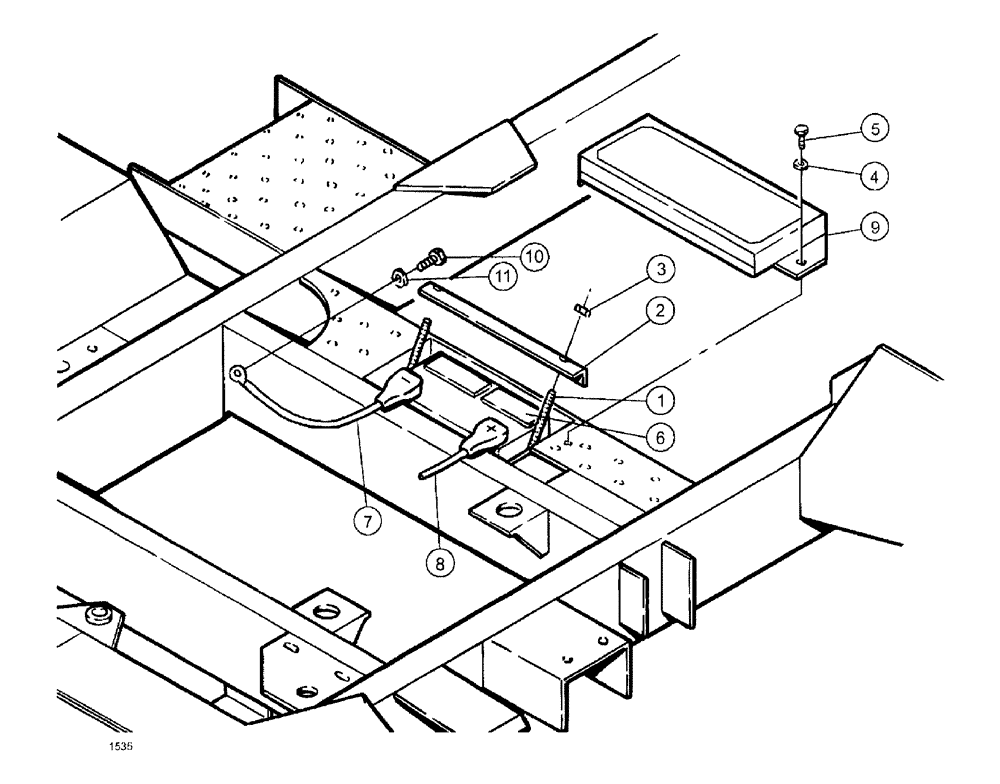

Запчасти Case IH SPX3185 (03-079) - ENGINE - BATTERY PACKAGE (01) - ENGINE

1

BN07020

ROD 5/16 dia, x 11.5

2шт.

2

BN29276

ANGLE

Battery Hold Down

1шт.

3

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

2шт.

4

BN50141

WASHER

flat plated, 5/16

2шт.

Contact your local vendor for replacement.

1шт.

5

BN50476

BOLT,5/16"-18 x 0.75", Stainless

2шт.

*6

A187592

WET BATTERY

12V 950 CCA Post

1шт.

7

BN313316

NEG BATTERY CABLE

ASSEMBLY (-)

1шт.

8

BN311567

POS BATTERY CABLE

1шт.

9

BN66124

COVER

ASSEMBLY battery

1шт.

BN29977

PLATFORM

Safety Walk - Flextread, 6" x 16"

1шт.

BN67240

SEAL

clip on

1шт.

10

43258

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

1шт.

11

BN300500

WASHER,M12, 10.9

1шт.
