Запчасти Case IH SPX3185 (03-076) - ENGINE - MT. & SCREEN-OILCOOL ASSEMBLY (01) - ENGINE

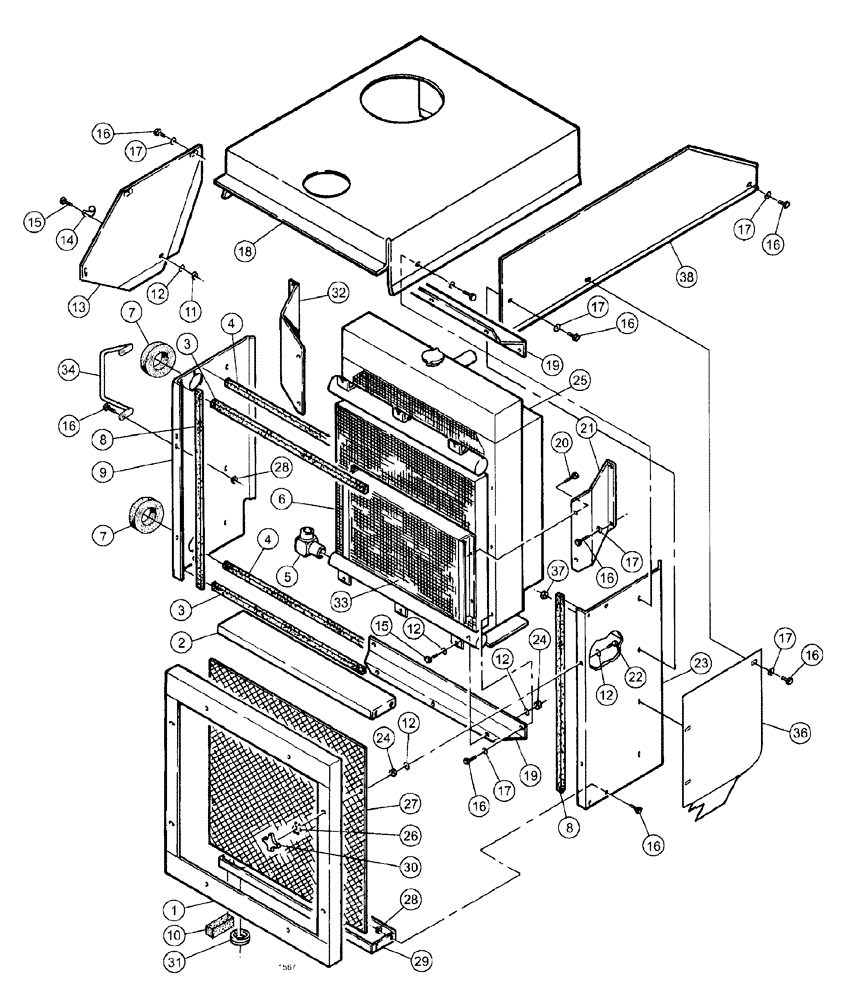

Схема запчастей Case IH SPX3185 - (03-076) - ENGINE - MT. & SCREEN-OILCOOL ASSEMBLY (01) - ENGINE
17
19
33
38
16
7
12
32
24
23
14
18
16
17
28
28
12
30
24
9
15
3
37
6
22
8
19
12
17
16
5
2
4
7
20
10
8
29
17
17
12
3
13
11
16
28
16
17
21
36
27
31
4
16
1
16
25
15
16
34
12

Артикул

Название

Примечание

Количество

1

BN67581

COVER ASSY

COVER weldment WT rad INT

1шт.

2

BN67584

COVER

top

1шт.

3

BN68595

SEAL

foam, .75 x 1 x 29

2шт.

4

BN68597

SEALING STRIP,25.4mm W x 774.7mm L x 19.05mm Thk

foam, .75 x 1 x 30.5

2шт.

5

BN67881

ADAPTER

90º 1" NPT x #16 JIC

2шт.

6

BN29339

OIL COOLER

Hyd.

1шт.

7

BN304609

SEAL

foam

2шт.

8

BN68596

SEALING STRIP,25.4mm W x 850.9mm L x 19.05mm Thk

foam, .75 x 1 x 33.5

2шт.

9

BN315808

SHROUD

LH

1шт.

10

BN65150

INSULATOR

foam, .75 x 1.0 x 3.0

1шт.

11

BN50064

NUT

3/8"-16, Stainless Steel

1шт.

12

BN50146

WASHER,3/8", Stainless

13шт.

13

BN315806

SHIELD

alternator

1шт.

14

86625038

CLAMP,25.4mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

15

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

7шт.

16

BN50476

BOLT,5/16"-18 x 0.75", Stainless

24шт.

17

BN50142

WASHER,5/16", Stainless Steel

27шт.

18

BN313432

COVER ASSY

COVER engine weldment

1шт.

19

BN315804

BRACKET, SUPPORTING

Mount, Cooler

2шт.

20

BN50205

BOLT

SCREW, hex head, 1/4" x 3/4", STP

4шт.

21

BN315795

MOUNTING PLATE

Condensor, RH

1шт.

22

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

4шт.

23

BN315807

SHROUD

RH

1шт.

24

BN50062

LOCK NUT,3/8"-16, Stainless Steel

10шт.

25

RADIATOR see Figure 03-083

1шт.

26

493-41039

LOCK WASHER,Ext Tooth, 3/8"

4шт.

27

BN67589

SCREEN

MESH, radiator cover

1шт.

28

280736

NUT,5/16"-18, GC

4шт.

29

BN67588

COVER

bottom

1шт.

30

BN29392

KNOB

3" With 3/8"-16 Female Thread

4шт.

31

BN67586

GROMMET cut

1шт.

32

BN315797

MOUNTING PLATE

Condensor, LH

1шт.

33

BN67785

CONDENSER

Coil

1шт.

34

BN313105

HANDLE

WLDMNT, handle, rad.

1шт.

36

BN312980

DEFLECTOR

WLDMT, deflect/hood exten.

1шт.

38

BN312960

DEFLECTOR

hood extension

1шт.

Выбрано товаров: 36
