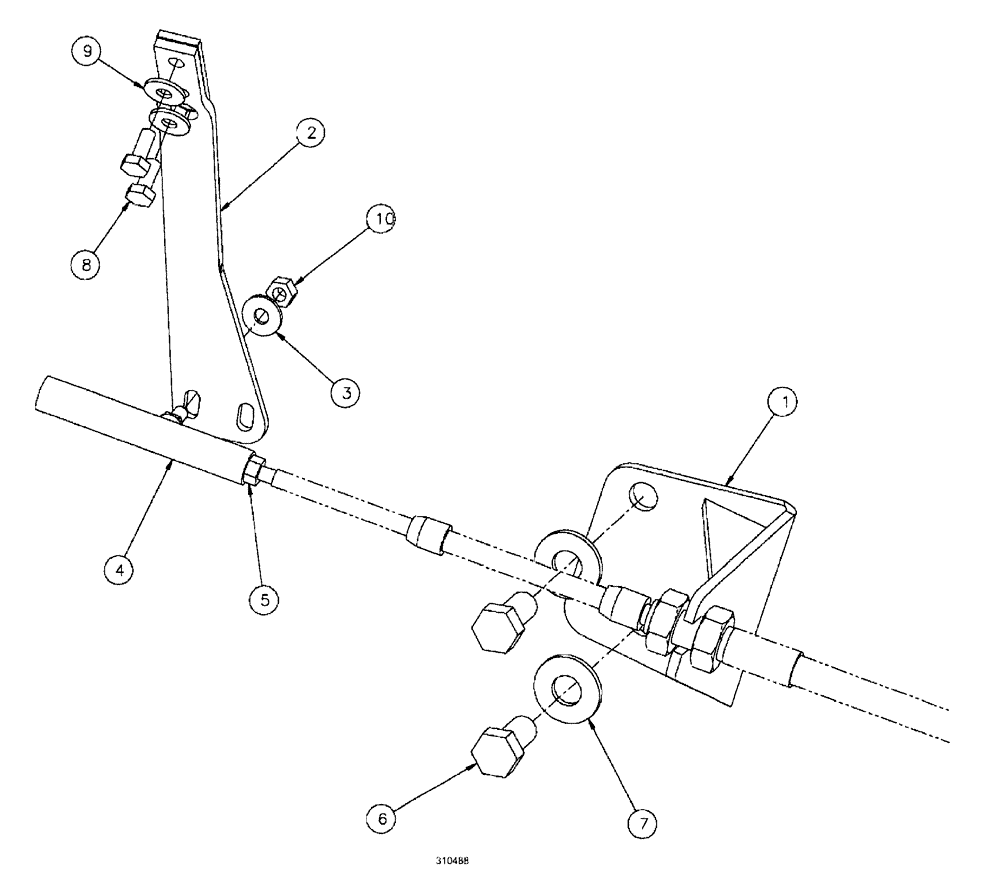

Запчасти Case IH SPX3185 (03-074) - ENGINE - THROTTLE CABLE ASSEMBLY (01) - ENGINE

1

BN323630

BRACKET

Throttle

1шт.

2

BN310390

LEVER

throttle cable

1шт.

3

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

0.281 X 0.625 X 0.065 HTS DOR HDN

1шт.

*4

225619A1

BALL JOINT

throttle rod

1шт.

Part available only through Case's Global After Sales Organization.

1шт.

5

86509309

NUT,1/4"-28, G5

2шт.

6

43258

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

2шт.

7

BN300500

WASHER,M12, 10.9

2шт.

8

86639037

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

2шт.

9

BN300496

WASHER

M6, Flat, 10.9

2шт.
