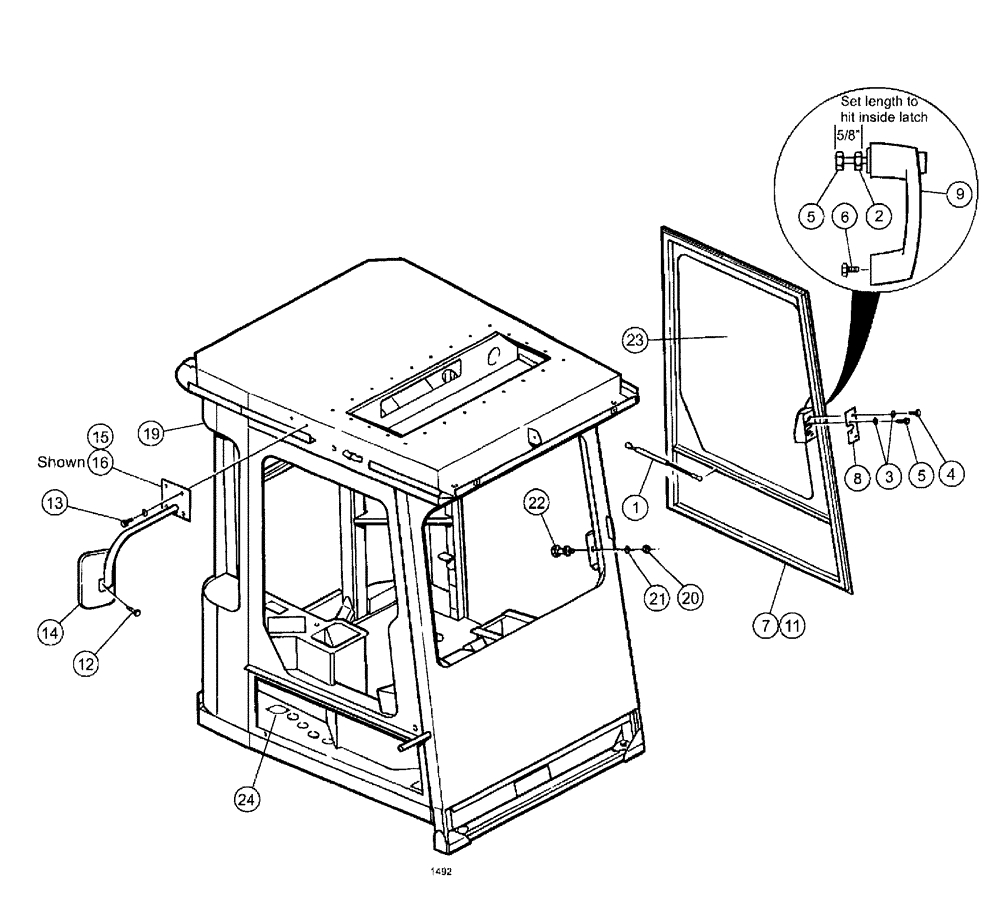

Запчасти Case IH SPX3185 (02-004) - CAB EXTERIOR - DOOR, MIRRORS Cab Exterior

0

BN67932

DOOR ASSY.

entry, LH

1шт.

Includes Refs. 1 - 11

1шт.

1

BN29434

GAS STRUT

Cylinder Kit - Charged - Door (Complete)

1шт.

1a

BN29553A

BALL JOINT

Stud, 13 mm Dia 5/16"-18

2шт.

Service Parts for Ref. 1

1шт.

1b

BN24120

CLIP, SPRING

Gas Cylinder

2шт.

Service Parts for Ref. 1

1шт.

2

BN50053

NUT

Hex, 1/4"-20, G5

1шт.

3

BN50138

WASHER,1/4", SS

4шт.

4

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

5

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

6

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

7

BN66026

DOOR

1шт.

8

BN66103

LATCH

door, two rotor

1шт.

8a

BN67951

CAP

Vinyl, .060 x .437 x 1.5

1шт.

9

BN66106

HANDLE

door, outside

1шт.

9a

BN303475

DOOR LOCK KEY

set of 2

1шт.

11

84146228

RUBBER SEAL,4877mm L

Door

1шт.

12

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

13

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

8шт.

14

BN66128

MIRROR

Stud Mount - 7.5 x 10.5

2шт.

14a

185773A1

MIRROR

2шт.

Part available only through Case's Global After Sales Organization.

1шт.

14b

1530998C2

SUPPORT

holder

2шт.

Part available only through Case's Global After Sales Organization.

1шт.

14c

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

8шт.

Part available only through Case's Global After Sales Organization.

1шт.

14d

BN314748

MOUNTING PARTS

Mirror, RH

1шт.

14e

BN314798

MOUNTING PARTS

Mirror, LH

1шт.

14f

855-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 10.9

6шт.

Part available only through Case's Global After Sales Organization.

1шт.

15

BN67557

MIRROR ARM

LH

1шт.

16

BN67558

MIRROR ARM

RH

1шт.

Shown

1шт.

19

BN65970

CAB

1шт.

20

280980

NUT,7/16"-14, GC

1шт.

21

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

2шт.

22

BN66109

CATCH

striker, door

1шт.

22a

BN300873

BULB

Halogen, H3 12 volt

6шт.

24

BN69742

ELEC. TERMINAL PIN,Male

Bulkhead , .22 Pin Male

1шт.

24a

BN69743

LOCK

bulkhead connector

2шт.

24b

BN16108

PLUG

Weatherpak Connector

22шт.

24c

BN306057

CONTACT HOUSING

terminal

1шт.

24d

BN50052

LOCK NUT,1/4"-20, USR, SS

2шт.

24e

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.
