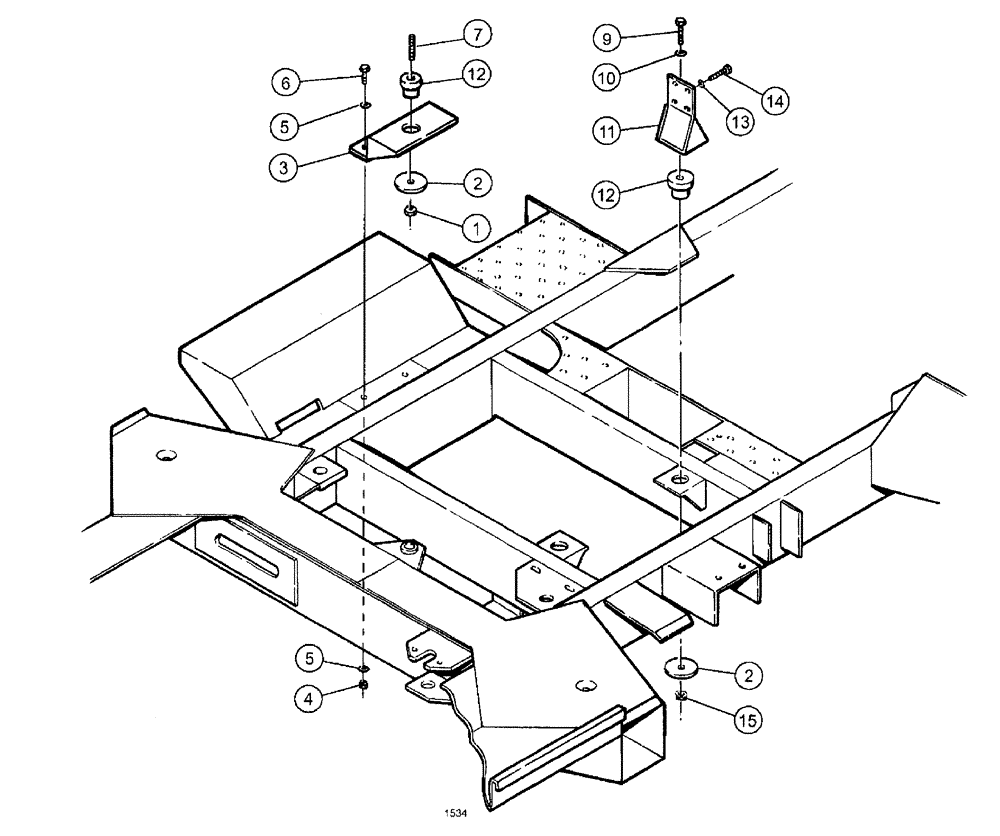

Запчасти Case IH SPX3185 (03-072) - ENGINE - ENGINE MOUNTING PACKAGE (01) - ENGINE

1

BN300410

BOLT

M16-2, FLN, 8.8

1шт.

2

BN63818

WASHER,20.57mm ID x 69.85mm OD x 4.76mm Thk

7 GA 304 .81 x 2.75

3шт.

3

BN310420

MOUNTING PLATE

WLD'MT, front engine mount

1шт.

4

BN300407

FLANGE NUT

Flg, 1/2"-13, G8

2шт.

5

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

4шт.

6

BN55235

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

2шт.

7

BN311165

STUD

M16 x 2 x 70

1шт.

9

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

2шт.

10

BN50155

WASHER,17.48mm ID x 44.45mm OD x 3.05mm Thk

5/8", G5

2шт.

11

BN318841

BRACKET

WLD'MT, rear engine mount

2шт.

12

BN25639

ISOLATOR

Rubber Motor Mount

3шт.

13

BN300500

WASHER,M12, 10.9

8шт.

14

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

8шт.

15

85700693

NUT,5/8" - 11, Gr C

2шт.
