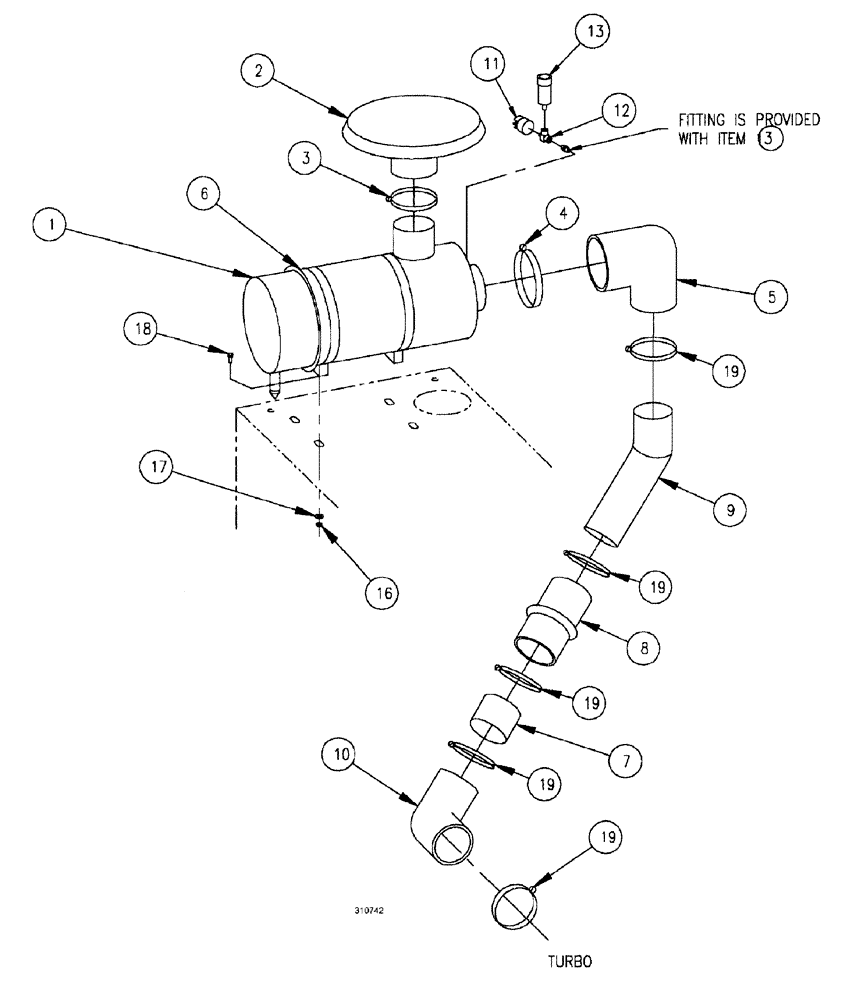

Запчасти Case IH SPX3185 (03-070) - ENGINE - AIR CLEANER PACKAGE (01) - ENGINE

1

247825A2

AIR CLEANER

4.5 outlet

1шт.

1a

249987A1

FILTER, ELEMENT

ELEMENT, FILTER primary

1шт.

1b

249988A1

FILTER, ELEMENT

ELEMENT, FILTER secondary

1шт.

1c

8605079

COVER

assembly

1шт.

1d

60-4452T2

FILTER

Air Inlet

1шт.

1e

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

Evacuator

1шт.

1f

D36264

FITTING

ADAPTER

1шт.

2

54-305

CAP

Hood, Air Inlet, With Clamp

1шт.

Part of Ref. 3 Clamp - hood air inlet, P/N BN320355

1шт.

3

BN320355

CLAMP

hood, air inlet

1шт.

Includes Ref. 2

1шт.

4

BN25675

CLAMP

T-Bolt 5 1/2"

1шт.

5

BN310691

RETAINER

Elbow, 4.5" x 4" x 90

1шт.

6

S238773

CLAMP

BAND mount, air cleaner

2шт.

7

BN25293

TUBE

4" od x 3" Long x 16 ga SS

1шт.

8

S89590

HOSE,4.00" ID x 5.25"

HUMP rubber, 4 x 4

1шт.

9

BN310692

TUBE

4"

1шт.

10

D50920

ELBOW

4" x 90°

1шт.

11

BN66126

INDICATOR

Filter, Electric

1шт.

12

BN68257

TEE

1/8 NPT male, female

1шт.

13

BN68258

INDICATOR

Restrict, 25" H2O

1шт.

16

BN50062

LOCK NUT,3/8"-16, Stainless Steel

4шт.

17

BN50146

WASHER,3/8", Stainless

4шт.

18

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

19

BN69643

CLAMP

t-bolt 4.50 longbolt

5шт.
