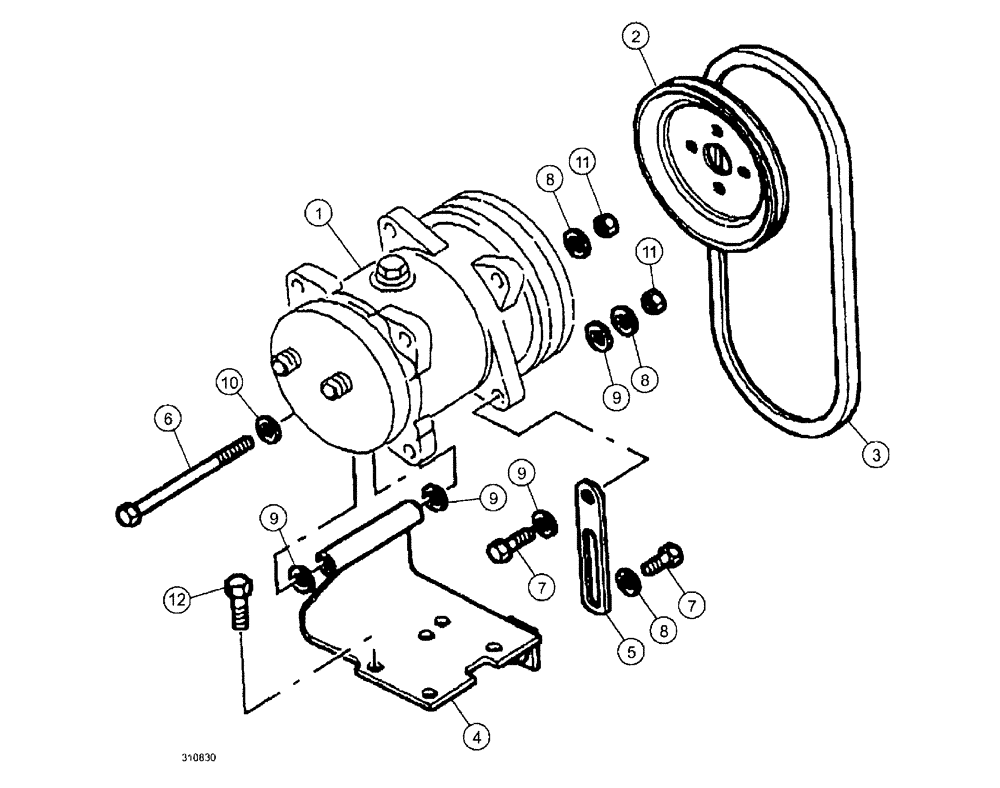

Запчасти Case IH SPX3185 (03-068) - ENGINE - A/C COMPRESSOR PACKAGE (01) - ENGINE

1

COMPRESSOR assembly see Figure 03-009

1шт.

Part available only through Case's Global After Sales Organization.

1шт.

2

A184596

PULLEY

Compressor Drive

1шт.

Part available only through Case's Global After Sales Organization.

1шт.

3

84766C1

BELT,12.70 mm W x 996.00 mm L

Compressor Drive

1шт.

Part available only through Case's Global After Sales Organization.

1шт.

4

191951A1

SUPPORT

bracket, compressor

1шт.

Part available only through Case's Global After Sales Organization.

1шт.

5

BN311230

BRACKET

A/C Compressor

1шт.

Part available only through Case's Global After Sales Organization.

1шт.

6

86508575

BOLT,Hex, M10 x 130mm, Cl 8.8

1шт.

Part available only through Case's Global After Sales Organization.

1шт.

7

905-10035

BOLT,Hex Flg, M10 x 35mm

2шт.

Part available only through Case's Global After Sales Organization.

1шт.

8

892-11010

LOCK WASHER,M10

3шт.

Part available only through Case's Global After Sales Organization.

1шт.

9

140017

WASHER,M10 x 20mm OD x 2mm Thk

4шт.

Part available only through Case's Global After Sales Organization.

1шт.

10

3120737R1

WASHER,10.8mm ID x 25mm OD x 5mm Thk

10.8 x 25 x 5 mm

1шт.

Part available only through Case's Global After Sales Organization.

1шт.

11

83246410

10 mm - 1.5

2шт.

Part available only through Case's Global After Sales Organization.

1шт.

12

905-10025

BOLT,Hex Flg, M10 x 25mm

3шт.
