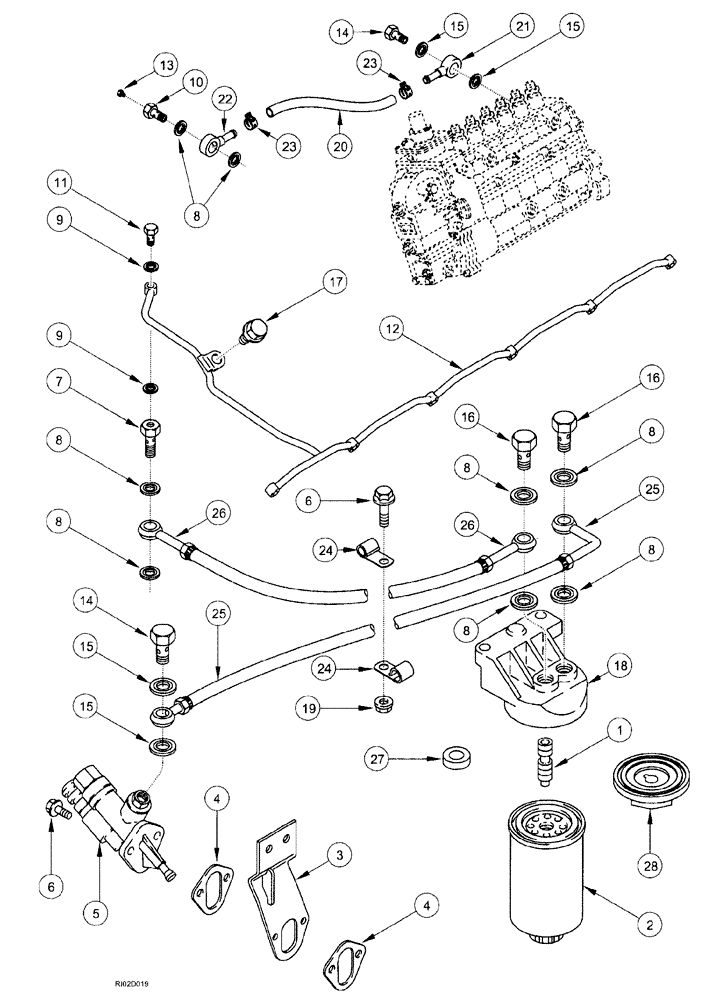

Запчасти Case IH SPX3185 (03-058) - ENGINE - FUEL FILTER & TRANSFER PUMP (01) - ENGINE

1

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

fuel filter

1шт.

2

J286503

FUEL FILTER

1шт.

3

J935435

BRACKET

solenoid

1шт.

4

J939258

GASKET,1.21mm Thk

lift pump

2шт.

5

J936316

FUEL PUMP

lift, fuel

1шт.

6

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

3шт.

7

J281476

BANJO BOLT

BOLT banjo connector

1шт.

8

J935171

SEALING WASHER

special, 12 x 19 x 1.5 mm

8шт.

9

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing

2шт.

10

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

11

J924726

BANJO BOLT

check

1шт.

12

J930847

MANIFOLD

TUBE fuel

1шт.

13

J939570

BLEED SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

hex, special, vent

1шт.

14

J924725

BANJO BOLT,M14 x 1.5 x 26mm

connector

2шт.

15

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER sealing, special, 14 x 20 x 1 mm

4шт.

16

J903035

BANJO BOLT

hex, 12 - 1.5 x 24 mm

2шт.

17

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

18

J930969

CAP

HEAD fuel filter

1шт.

19

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

20

J283594

HOSE,7.94 mm ID x 350.00 mm, SAE 30R9

1шт.

21

J911447

CONNECTOR, ELEC

CONNECTOR banjo, fuel return

1шт.

22

J934476

FITTING

CONNECTOR banjo

1шт.

23

J923527

CLAMP

band

2шт.

24

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

25

J936885

HOSE

flexible, 1279 mm (50-11/32 inch)

1шт.

26

J936886

FUEL HOSE,25.00 mm ID x 1181.00 mm

Flexible

1шт.

27

J311919

SEAL

rectangular ring

1шт.

28

J935487

COVER

filter head

1шт.
