Запчасти Case IH SPX3185 (03-056) - ENGINE - ANEROID & WASTEGATE SYSTEM (01) - ENGINE

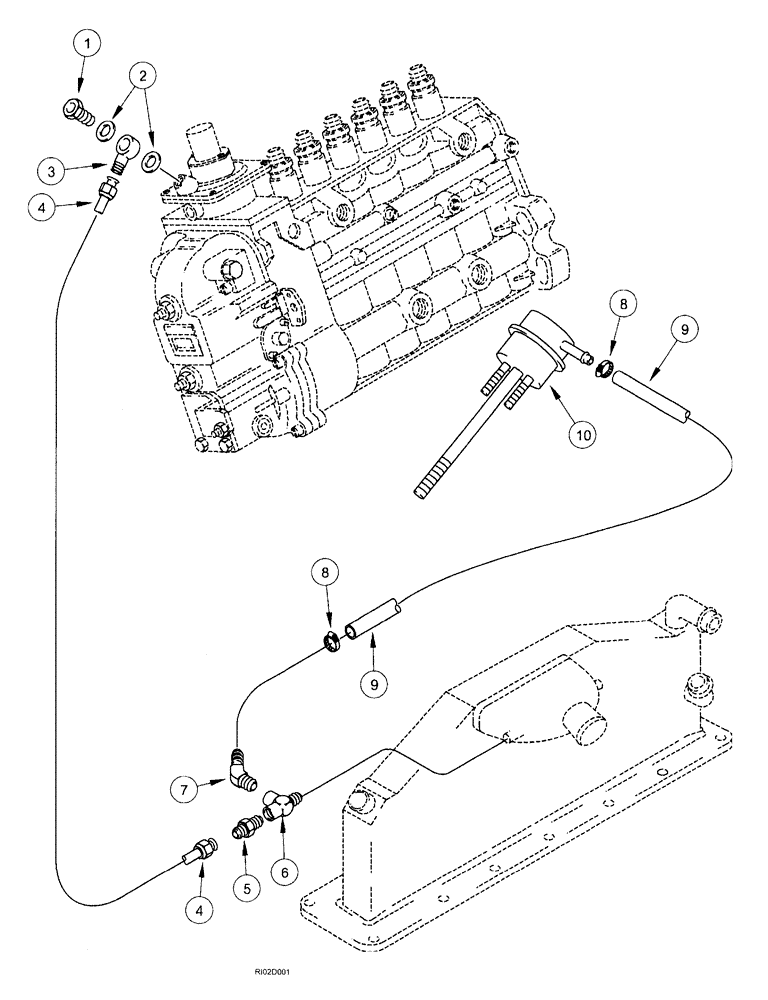

Схема запчастей Case IH SPX3185 - (03-056) - ENGINE - ANEROID & WASTEGATE SYSTEM (01) - ENGINE
8
2
3
4
8
7
9
5
1
9
4
10
6

Артикул

Название

Примечание

Количество

1

J903035

BANJO BOLT

hex, 12 - 1.5 x 24 mm

1шт.

2

J935171

SEALING WASHER

special, 12 x 19 x 1.5 mm

2шт.

3

J990881

CONNECTION

CONNECTOR banjo

1шт.

4

J991516

FUEL TUBE,6.35 mm OD x 506 mm L

fuel control

1шт.

5

J920803

CONNECTOR, ELEC

CONNECTOR ADAPTER compression, special

1шт.

6

J930789

TEE

1/8 x 1/8 x 1/8 pipe

1шт.

7

86625232

FITTING,45 Degree, 1/4" Hose x 1/8" NPTF, Barbed

1шт.

8

82039341

CLAMP,12mm - 22mm

#4, 0.25/0.62 Type M Worm

2шт.

9

J991038

HOSE,6.35mm ID x 254mm L

1шт.

10

J594348

ACTUATOR

turbocharger, see page 03-021 for mounting parts

1шт.

Выбрано товаров: 10
