(03-054) - ENGINE - FUEL INJECTION SYSTEM

Запчасти Case IH SPX3185 (03-054) - ENGINE - FUEL INJECTION SYSTEM (01) - ENGINE

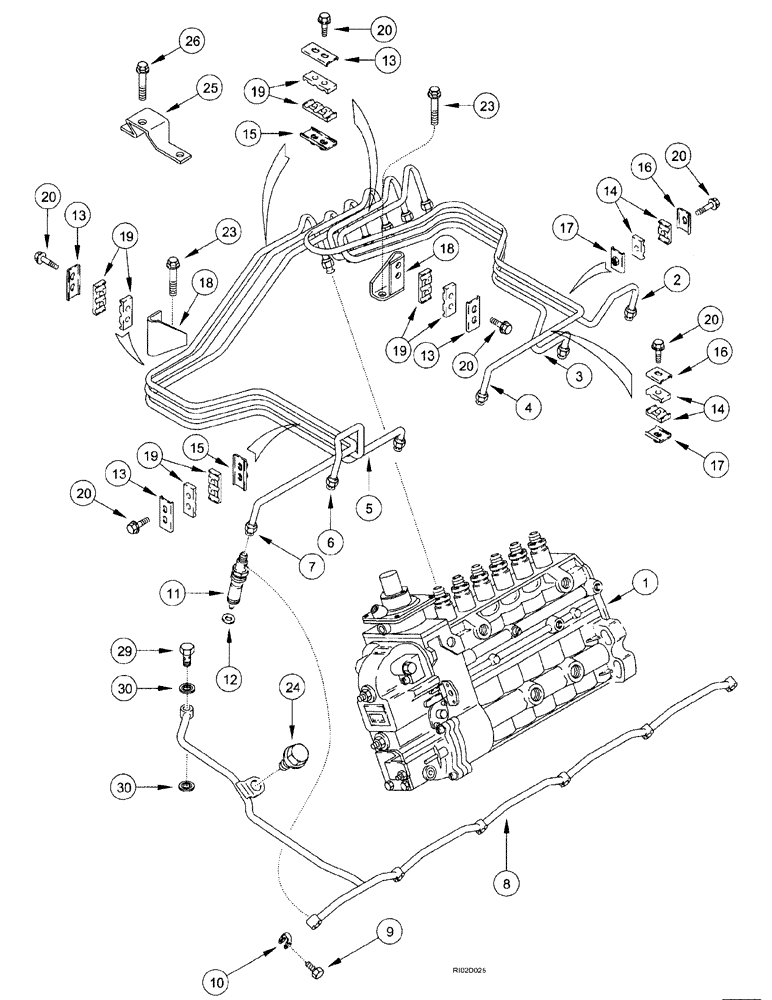

Схема запчастей Case IH SPX3185 - (03-054) - ENGINE - FUEL INJECTION SYSTEM (01) - ENGINE
13
19
20
11
15
19
20
19
9
3
16
14
13
12
30
20
19
18
30
16
23
23
29
10
20
26
20
6
7
13
25
2
15
4
18
24
13
8
17
5
20
17
14
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J935784

PUMP

ASSEMBLY fuel injection, with aneroid

1шт.

See Fig. 03-060 for parts

1шт.

2

J930739

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 935 mm L

fuel injector, no. 1 cylinder

1шт.

3

J930740

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 935 mm L

fuel injector, no. 2 cylinder

1шт.

4

J930741

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 935 mm L

fuel injector, no. 3 cylinder

1шт.

5

J930742

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 935 mm L

fuel injector, no. 4 cylinder

1шт.

6

J930743

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 935 mm L

fuel injector, no. 5 cylinder

1шт.

7

J930744

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 935 mm L

fuel injector, no. 6 cylinder

1шт.

8

J930847

MANIFOLD

TUBE fuel

1шт.

9

J905307

BANJO BOLT,M6 x 1 x 14.30mm

6шт.

10

J903380

SEAL

Banjo connector

6шт.

11

J930131

FUEL SYSTEM INJECTOR

NOZZLE fuel

6шт.

See Fig. 03-064 for parts

1шт.

11

JR930131

REMAN-FUEL INJECTOR

REMANUFACTURED FUEL SYSTEM INJECTOR

6шт.

11

JC930131

CORE-FUEL INJECTOR

Return Number, FUEL SYSTEM INJECTOR

6шт.

12

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

injector nozzle, 7 mm injector tip

1шт.

13

J904519

SUPPORT

tube retaining

5шт.

14

J917746

CLAMP

fuel tube

4шт.

15

J917716

BRACE

BRACKET fuel tube

3шт.

16

J904711

SUPPORT

BRACKET fuel tube

2шт.

17

J917717

BRACE

BRACKET fuel tube

2шт.

18

J933301

BRACE

tube

2шт.

19

J917747

CLAMP

fuel tube

12шт.

20

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

12шт.

22

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

23

J918108

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

BOLT hex flange, special

2шт.

24

J924962

FLANGE BOLT

hex flange, special, 8 - 1.25 x 16 mm

1шт.

25

J930751

BRACE

tube

1шт.

26

J930837

FLANGE BOLT,Hex, M8 x 1.25 x 50mm

BOLT hex flange, special, 8 x 50 mm

4шт.

Not Shown

1шт.

27

80681

LOCK WASHER,5/16"

1шт.

Not Shown

1шт.

28

628-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

1шт.

29

J924726

BANJO BOLT

check

1шт.

30

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing

2шт.
