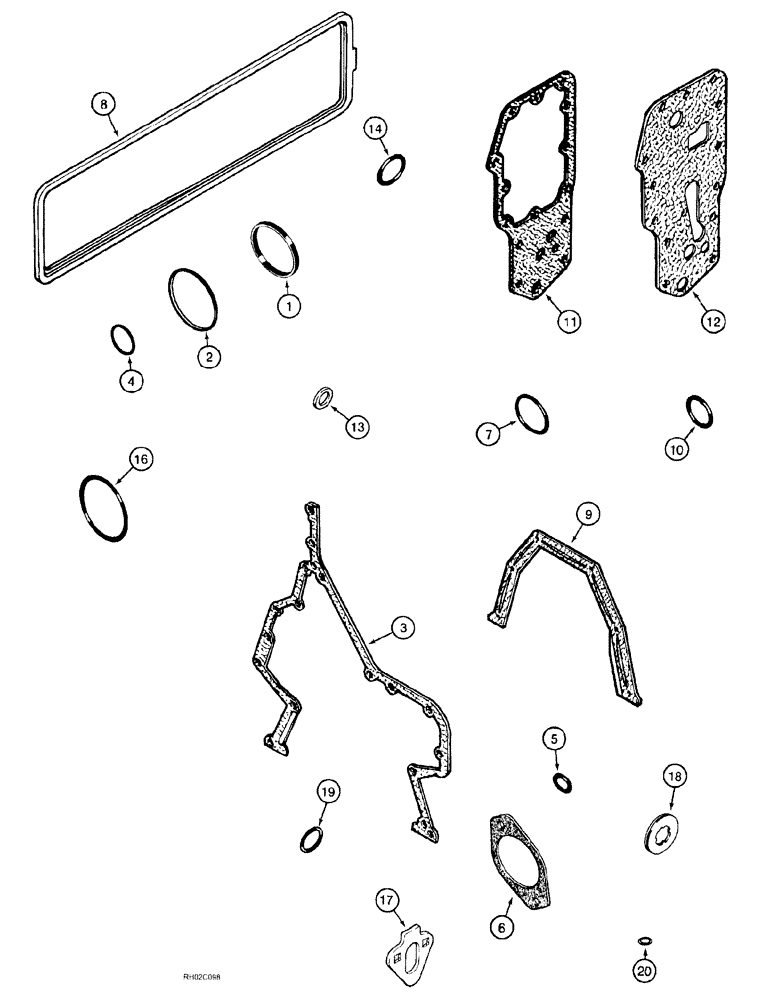

Запчасти Case IH SPX3185 (03-050) - ENGINE - GASKET KIT, CYLINDER BLOCK (01) - ENGINE

0

A77964

SEAL PACKAGE

KIT Gasket, Cylinder Block

1шт.

For complete engine overhaul, order (1) cylinder block kit; (1) valve grind kit, Page 03-048; (1) oil pan kit, Fig. 03-024; and the required cylinder head gasket, Ref. 2, Fig. 03-026

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover

1шт.

2

J935032

SEAL

GASKET

1шт.

3

J938156

GASKET,0.79mm Thk

gear housing

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Quad, Timing Pin Housing

1шт.

5

J913994

O-RING

sealing

1шт.

6

J938655

GASKET,1.27mm Thk

cover

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

8

J284623

GASKET

tappet cover

1шт.

9

J938159

GASKET

rear cover container, crankshaft

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING sealing, 50 mm ID, water inlet connection

1шт.

11

J942914

GASKET

oil cooler core

1шт.

12

J942915

GASKET

filter head

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug, oil pan

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING 38 mm (1-1/2 inch) ID, not used in this application

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING flywheel, Serial Range: housing-block

1шт.

17

J939258

GASKET,1.21mm Thk

lift pump

1шт.

18

J928759

SEALING WASHER

cover bolt, tappet cover

8шт.

19

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

20

J929457

O-RING

fuel filter head

1шт.
