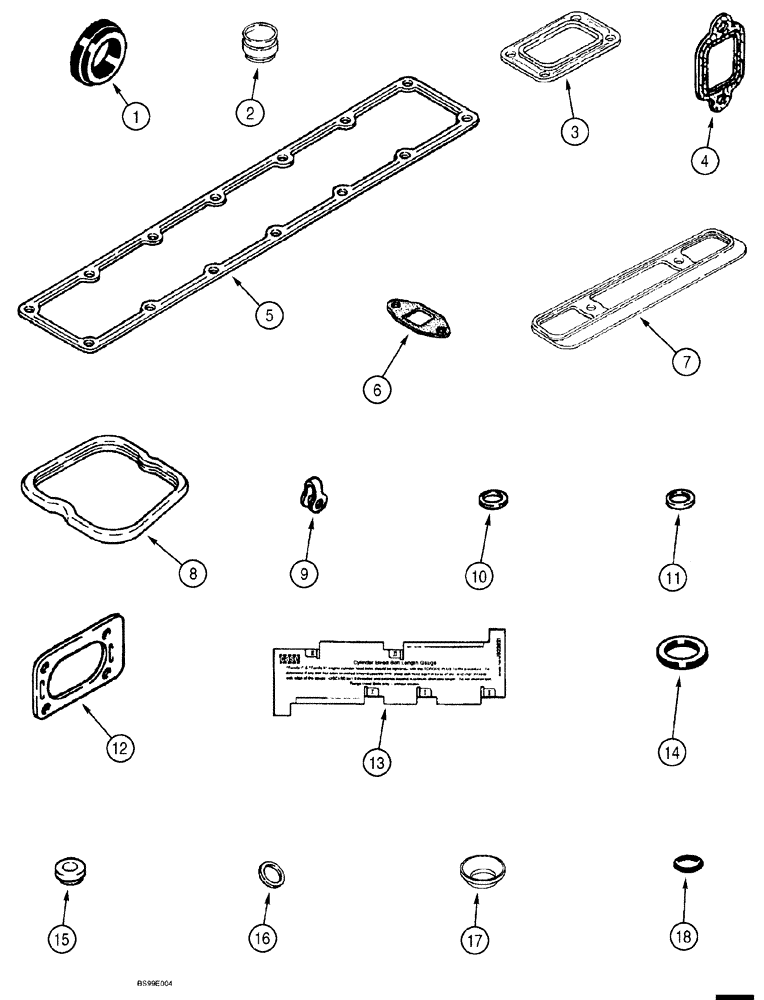

Запчасти Case IH SPX3185 (03-048) - ENGINE - GASKET KIT, VALVE GRIND (01) - ENGINE

0

87434407

GASKET

Gasket, Valve Grind

1шт.

When the valve grind gasket kit is ordered, also order the required cylinder head gasket, Ref. 2, see page 03-026.

1шт.

1

J923331

GASKET

thermostat housing

1шт.

2

J921640

SEAL

valve stem

12шт.

3

J919369

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

4

J927154

GASKET,0.38mm Thk

exhaust manifold

6шт.

5

J938152

MANIFOLD GASKET

mounting, intake manifold cover

1шт.

6

J937706

GASKET,0.79mm Thk

turbo oil drain tube

1шт.

7

J930426

GASKET

air crossover connection, not used in this application

1шт.

8

J930906

GASKET

SEAL rocker arm cover

6шт.

9

J903380

SEAL

Banjo connector

6шт.

10

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

injector nozzle, 7 mm injector tip

6шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING sealing, body to nut, fuel injector

6шт.

12

J914856

GASKET,1.02mm Thk

air crossover connection, at aftercooler

1шт.

13

J823921

GAUGE

cylinder head, bolt length

1шт.

14

J936876

SEALING RING,30mm ID x 48mm OD x 2.8mm Thk

fill cap, at valve cover

1шт.

15

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

noise, at valve cover

6шт.

16

J900808

SEAL

injector nozzle, 9 mm injector tip, if used

6шт.

17

86637735

SEAL,9.53mm ID x 13.97mm OD

3/8 Tube, Fl

2шт.

18

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt, at valve cover, if used

6шт.
