Запчасти Case IH SPX3185 (03-044) - ENGINE - FLYWHEEL AND HOUSING (01) - ENGINE

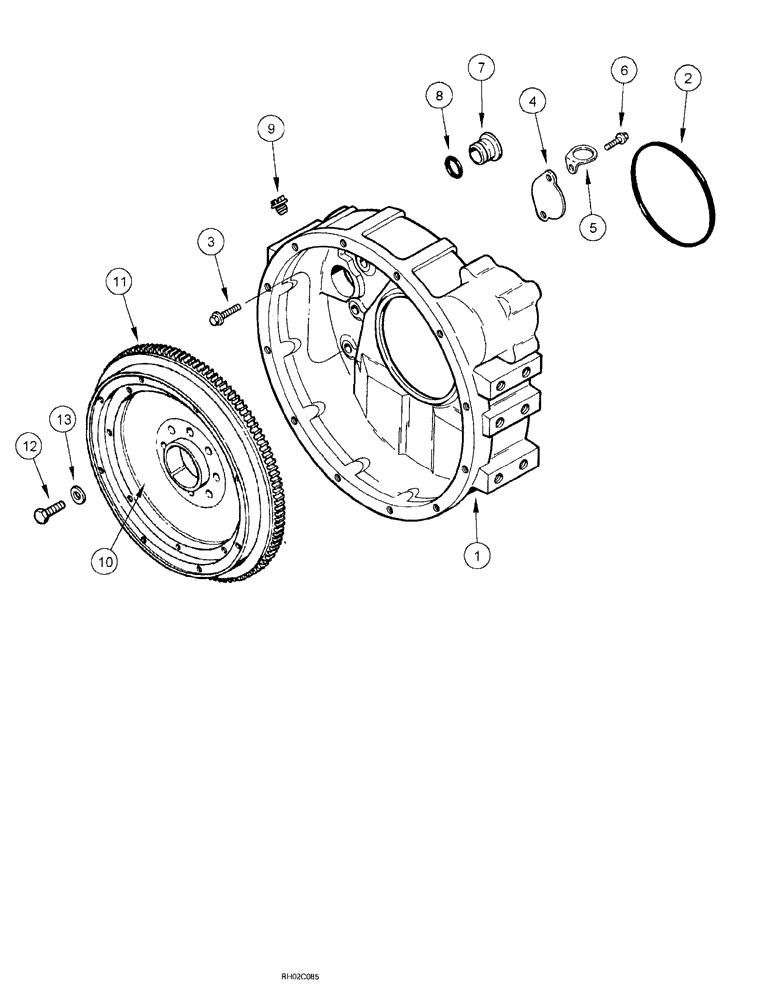

Схема запчастей Case IH SPX3185 - (03-044) - ENGINE - FLYWHEEL AND HOUSING (01) - ENGINE
7
13
11
9
5
6
10
4
2
3
1
8
12

Артикул

Название

Примечание

Количество

1

J937426

HOUSING

flywheel

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING flywheel, Serial Range: housing-block

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

8шт.

4

J925234

PLATE

cover

1шт.

5

J928989

CLIP

retaining

1шт.

6

J912072

SELF-TAP SCREW

Hex washer head, special, 8 - 1.25 x 15 mm

2шт.

7

J910248

PLUG

flysheel housing

1шт.

8

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

9

353-225

PLUG,Sltd Hd, 3/4"-16

1шт.

10

J936822

FLYWHEEL WITH GEAR

ASSEMBLY engine

1шт.

11

J905427

GEAR

ring, flywheel

1шт.

12

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

13

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

flat, special

8шт.

Выбрано товаров: 13
