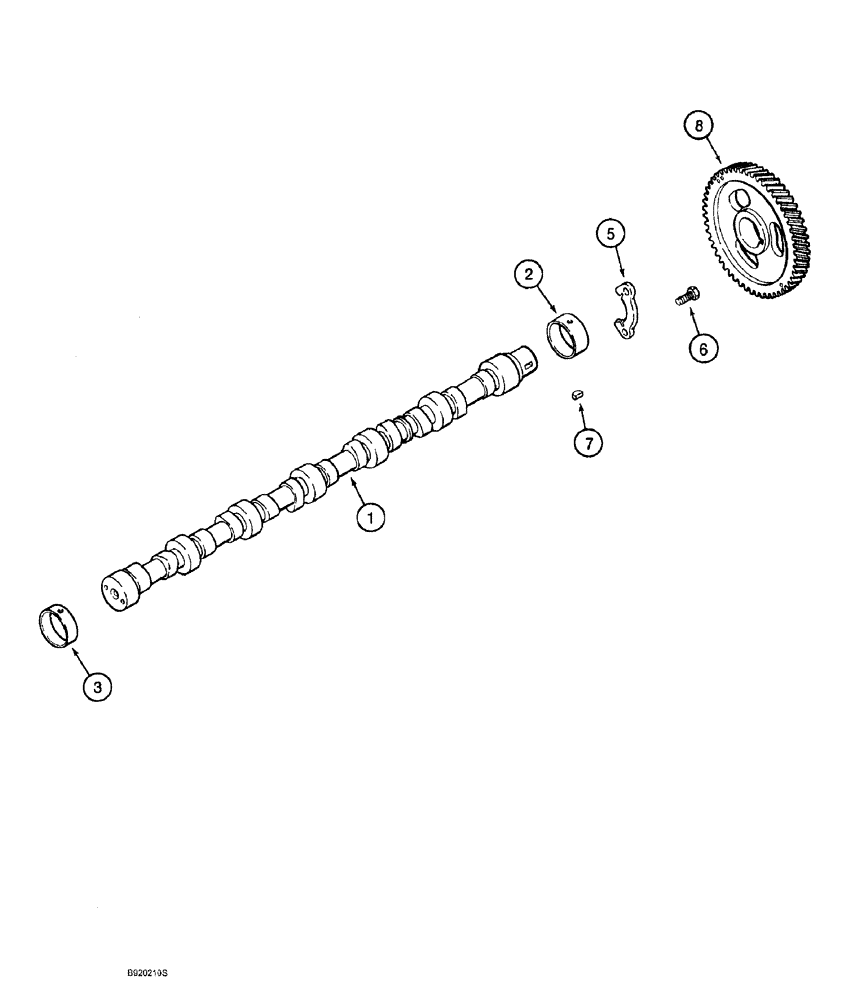

Запчасти Case IH SPX3185 (03-030) - ENGINE - CAMSHAFT (01) - ENGINE

1

J929886

CAMSHAFT

engine

1шт.

1

J929886R

REMAN-CAMSHAFT

SPX3185 PATRIOT SPRAYER, engine (10/02-8/04)

1шт.

1

J929886C

CORE-CAMSHAFT

Return Number

1шт.

2

J940059

BUSHING,54mm ID x 59.38mm OD x 25.4mm L

camshaft, front

1шт.

3

J903242

BUSHING,54.12mm ID x 57.38mm OD x 18mm L

camshaft, intermediate and rear, service repair only

6шт.

When the intermediate and the rear cylinder block camshaft bores are reamed in engine repair, order and install Ref. 3, J903242 bushings.

1шт.

5

J927155

SUPPORT

thrust, camshaft

1шт.

6

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

7

10205810

WOODRUFF KEY,4mm x 6.5mm x 15.72mm

1шт.

Camshaft Gear

1шт.

8

J929028

GEAR

GEAR camshaft

1шт.
