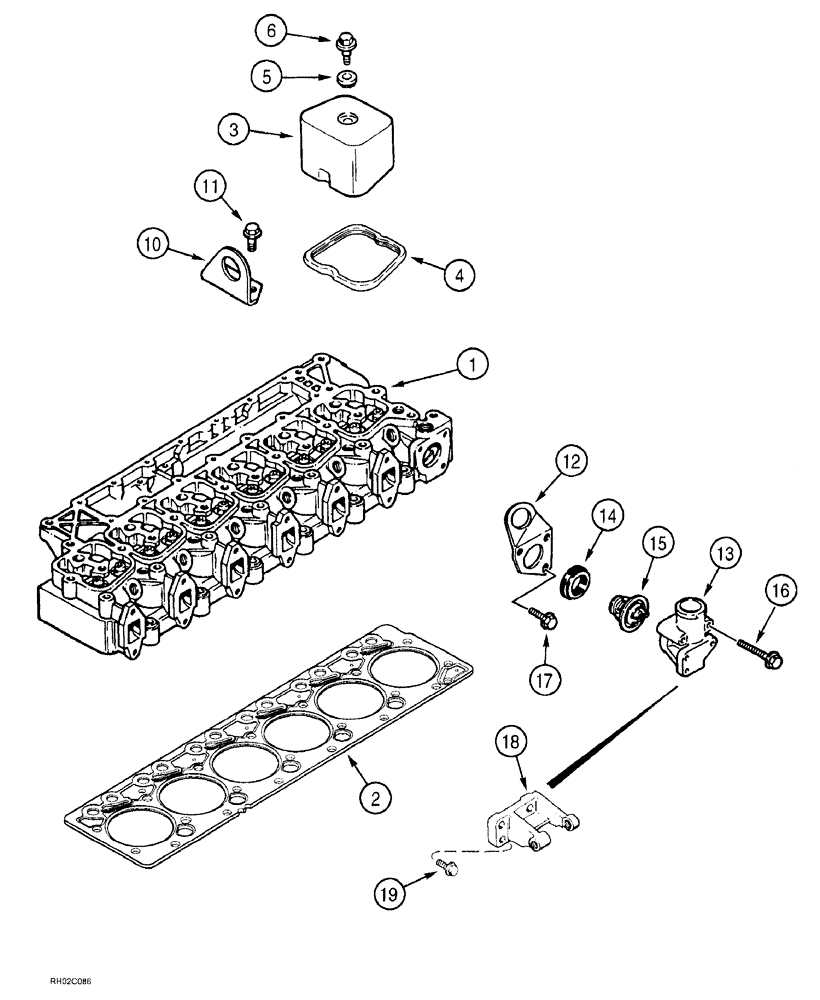

Запчасти Case IH SPX3185 (03-026) - ENGINE - CYLINDER HEAD COVERS & GASKET, THERMOSTAT, HOUSING AND ALTERNATOR MOUNTING (01) - ENGINE

1

REF

INSTRUCTION

HEAD ASSEMBLY cylinder, covers and gasket

1шт.

See Fig. 03-028 for parts

1шт.

2

J283335

GASKET,2.32mm Thk

head, standard, cylinder covers

1шт.

2

J283337

GASKET,2.24mm Thk

head, 1 notch, 0.25 mm thicker, cylinder covers

1шт.

2

J283339

GASKET

head, 2 notches, 0.50 mm thicker, cylinder covers

1шт.

3

J928404

COVER

rocker arm, cylinder head and gasket

6шт.

4

J930906

GASKET

SEAL rocker arm cover, cylinder head

6шт.

5

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

noise, cylinder head covers and gasket

6шт.

6

J907049

BOLT,Hex

hex flange, special, 8 - 1.25 x 21.25 mm, cylinder head covers and gasket

6шт.

6a

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

6шт.

Cylinder head covers and gasket

1шт.

Not Shown

1шт.

10

J908118

BRACKET

lifting rear, cylinder head covers and gasket

1шт.

11

9670066

FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8

2шт.

Cylinder head covers and gasket

1шт.

12

J903757

BRACKET

lifting front, thermostat, housing and alternator mounting

1шт.

13

J285102

HOUSING

thermostat, and alternator mounting

1шт.

13a

A77736

THERMOSTAT

Kit, Coolant

1шт.

14

J923331

GASKET

Thermostat, housing and alternator mounting

1шт.

15

NSS

NOT SOLD SEPARAT

THERMOSTAT coolant, housing and alternator mounting

1шт.

16

86624974

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

Thermostat, Housing and Alternator Mounting

1шт.

17

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

Thermostat, Housing and Alternator Mounting

1шт.

18

J287096

SUPPORT

1шт.

Thermostat, Housing and Alternator Mounting

1шт.

18a

838-5310

LOCK PIN,M3 x 10, Slotted

2шт.

Thermostat, Housing and Alternator Mounting

1шт.

Not Shown

1шт.

19

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

Thermostat, Housing and Alternator Mounting

1шт.
