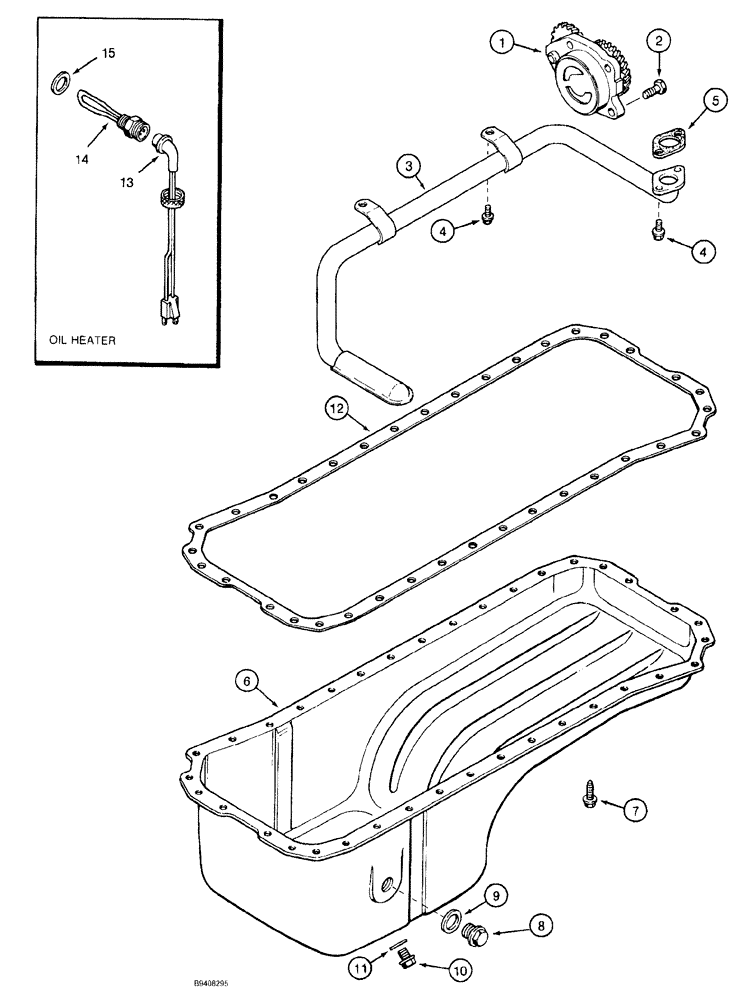

Запчасти Case IH SPX3185 (03-024) - ENGINE - OIL PUMP, PAN & HEATER (01) - ENGINE

1

J937404

PUMP, ENGINE OIL

ASSEMBLY new

1шт.

0

JR937404

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

0

JC937404

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - For N.A. only

1шт.

2

J900677

BOLT,Hex

hex, full threads, 8 - 1.25 x 30 mm

4шт.

3

J921992

TUBE,25.4 mm OD x 359, 234 mm L

TUBE oil

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

5

J938157

GASKET,1.2mm Thk

mounting, oil suction tube

1шт.

A77979 Kit - gasket, oil pan

1шт.

6

J915703

PAN, ENGINE OIL

PAN, OIL

1шт.

7

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

36шт.

8

J924148

PLUG,M22 x 1.5

hex magnetic, special, 22 mm - 1.5

1шт.

9

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

seaking plug

1шт.

A77979 Kit - gasket, oil pan

1шт.

10

J924147

PLUG,M18 x 1.5

hex magnetic, special, 18 mm - 1.5

1шт.

11

J920773

SEALING WASHER

WASHER sealing

1шт.

A77979 Kit - gasket, oil pan

1шт.

12

NSS

NOT SOLD SEPARAT

GASKET oil pan

1шт.

A77979 Kit - gasket, oil pan

1шт.

12a

A77490

KIT

Heater, Engine Oil

1шт.

Also order Ref. 15, J902425 washer

1шт.

13

87105748

ELECTRIC CABLE,120V, 15A

1829 mm (72") (Engine Block Heater, 120 Volt)

1шт.

14

NSS

NOT SOLD SEPARAT

ELEMENT heater, 120 volt

1шт.

15

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing plug

1шт.

13

J905114

ELECTRIC CABLE

engine block heater, 6 foot, 240 volt

1шт.

14

J285916

HEATER

ELEMENT, 240 VOLT

1шт.

15

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing plug, 240 volt

1шт.
