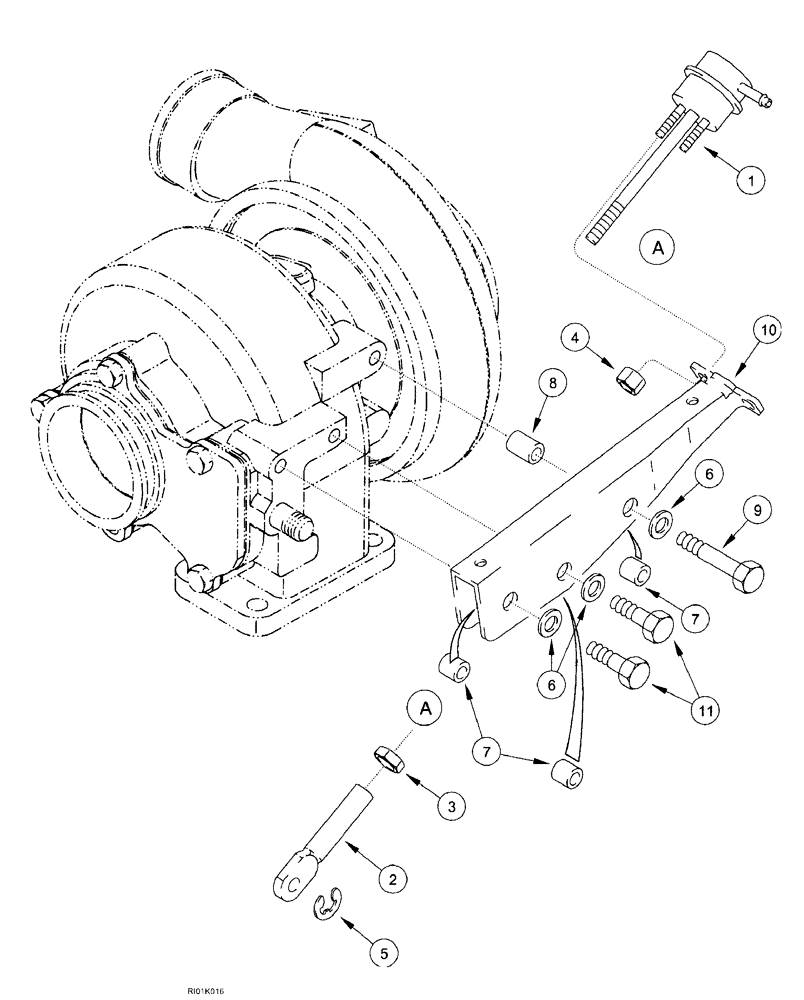

Запчасти Case IH SPX3185 (03-020) - ENGINE - WASTEGATE ACTUATOR (01) - ENGINE

0

J802697

KIT

turbocharger with gaskets

1шт.

Includes Refs. 2 - 23 on Fig. 03-018

1шт.

0

JR802697

REMAN-TURBOCHARGER

Remanufactured TURBOCHARGER

1шт.

0

JC536327

CORE-TURBOCHARGER

Return Number

1шт.

1

J594348

ACTUATOR

turbocharger

1шт.

2

J528177

LINK

adjusting

1шт.

3

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

4

J528204

LOCK NUT

lock

2шт.

5

J528221

CIRCLIP

retaining

1шт.

6

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

7

J532195

SPACER,9.38mm ID x 16.03mm OD x 13.7mm L

mounting, short

3шт.

8

J532196

SPACER,9.38mm ID x 16.03mm OD x 19mm L

mounting, long

1шт.

9

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

1шт.

10

J533328

SUPPORT

BRACKET wastegate actuator

1шт.

11

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.
