Запчасти Case IH SPX3185 (03-014) - ENGINE - AFTERCOOLER (01) - ENGINE

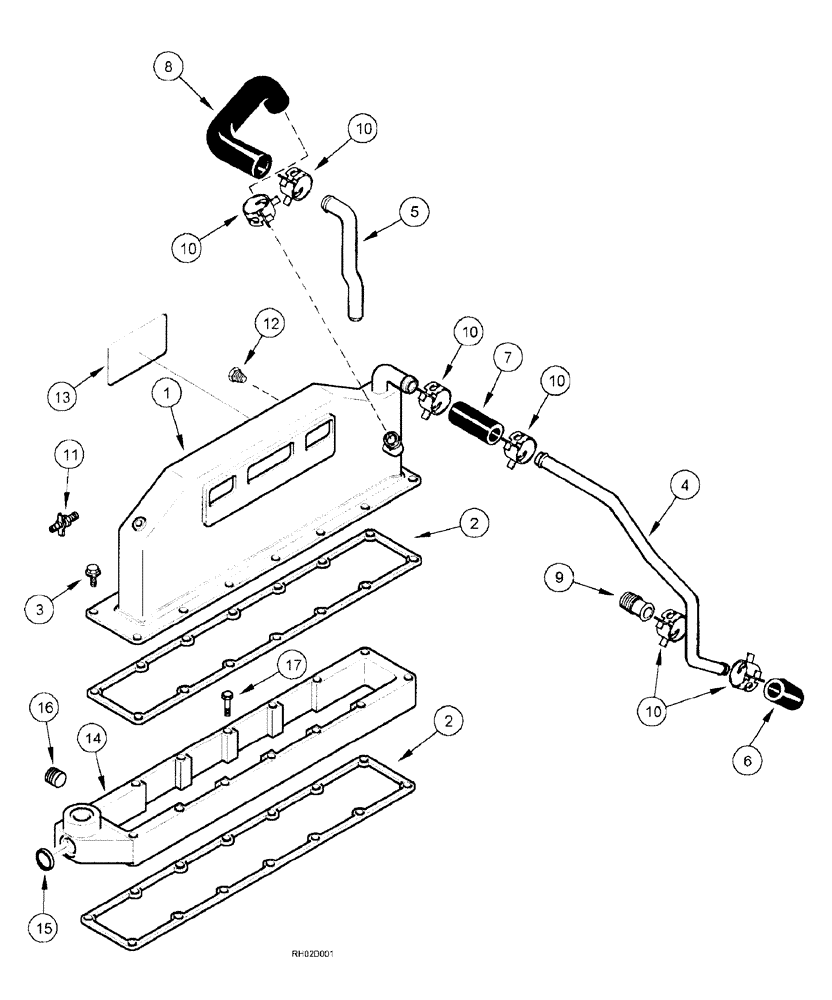

Схема запчастей Case IH SPX3185 - (03-014) - ENGINE - AFTERCOOLER (01) - ENGINE
15
1
16
10
10
11
3
6
12
2
17
5
10
4
13
7
10
9
14
10
8
2

Артикул

Название

Примечание

Количество

1

J928503

AFTERCOOLER

AFTER air intake

1шт.

2

J938152

MANIFOLD GASKET

mounting

2шт.

3

J930837

FLANGE BOLT,Hex, M8 x 1.25 x 50mm

BOLT hex flange, special, 8 x 50 mm

10шт.

4

J927956

TUBE,19.05 mm OD x 473.6 mm L

aftercooler return

1шт.

5

J926446

TUBE,19.05 mm OD x 154.6 mm L

aftercooler supply

1шт.

6

J918607

HOSE,43.20 mm

Ebow

1шт.

7

J918611

HOSE,18.50 mm ID x 63.00 mm

1шт.

Tube to aftercooler

1шт.

8

J928492

TUBE

HOSE elbow, return

1шт.

9

J907167

SPLINED COUPLING

, Serial Range: block-hose

1шт.

10

J937613

HOSE CLAMP

spring type, aftercooler, Serial Range: hoses-tubes

6шт.

11

J909394

COCK, DRAIN

VALVE air bleed

1шт.

12

J906619

PLUG,1/8" - 27

pipe, 1/8-27 hex socket

1шт.

Installled in aftercooler drain

1шт.

13

J910778

DECAL

caution, open during fill

1шт.

Not Shown

1шт.

14

J928464

SPACER

aftercooler

1шт.

15

J900956

PLUG

expansion, 18 mm od

1шт.

16

86625118

DRAIN PLUG,1/2" - 14 NPT

1шт.

17

87015915

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 20
