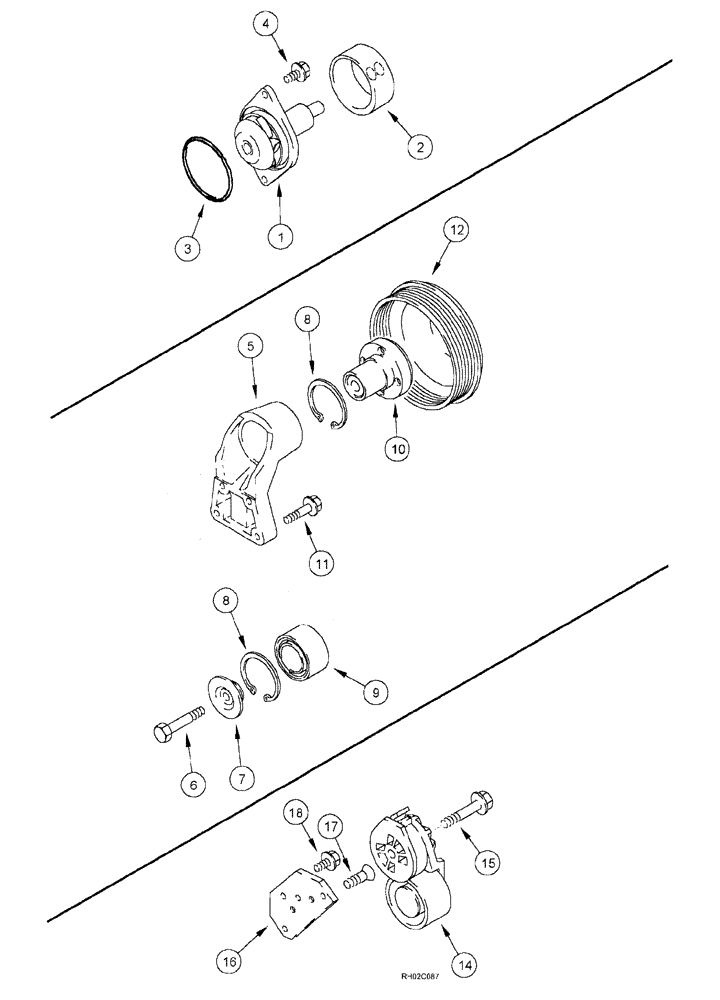

Запчасти Case IH SPX3185 (03-010) - ENGINE - WATER PUMP, BELT TENSIONER AND FAN BELT (01) - ENGINE

0

J286277

PUMP, WATER

KIT

1шт.

0

J286278R

REMAN-WATER PUMP

SPX3185

1шт.

0

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY water pump

1шт.

3

J906698

RUBBER SEAL,Square, 5.16mm Thk x 88.27mm ID

O-RING 3-1/2 ID x 3/16 inch wide

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J911922

SUPPORT ASSY.

BRACKET fan pulley

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

hex, special, M10 x 70 mm, class 12.9

1шт.

7

J923044

RETAINER

fan hub

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

10

J911924

HUB

fan

1шт.

11

86624973

BOLT,Hvy Hex, M8 x 40mm, Cl 10.9

4шт.

Fan bracket to cylinder block

1шт.

12

J914462

PULLEY,163mm OD

fan, 1.1 to 1 ratio

1шт.

14

J936203

BELT TENSIONER

belt

1шт.

15

844-10070

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

1шт.

Belt tensioner mounting

1шт.

16

J925207

SUPPORT

BRACKET belt tensioner

1шт.

17

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

1шт.

18

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.
