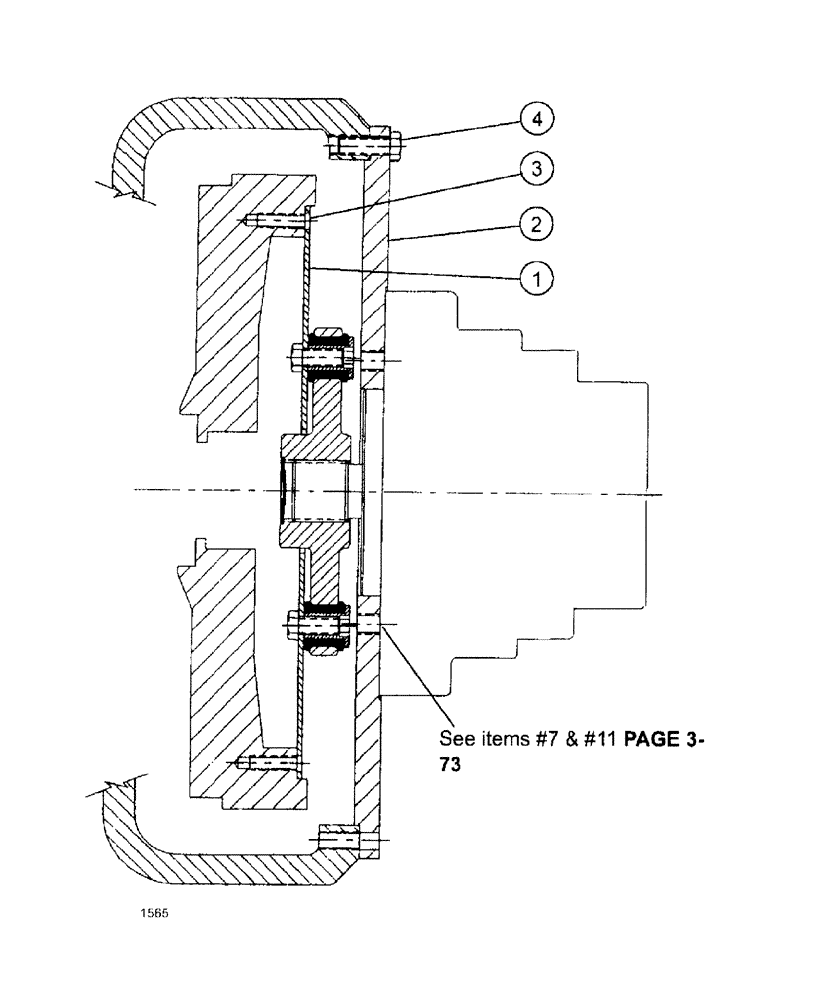

Запчасти Case IH SPX3185 (03-005) - ENGINE - FLYWHEEL COUPLER ASSEMBLY (01) - ENGINE

0

BN25680

COUPLING

Flywheel & Mount Plate Assembly

1шт.

Includes Refs. 1 & 2

1шт.

1

BN309955

FLYWHEEL

1шт.

2

BN309956

PLATE

pump mount

1шт.

3

BN311109

NUT

HH, 3/8"-16 x .75, G8

8шт.

4

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

10шт.

4a

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

4b

BN300499

WASHER,M10, 10.9

2шт.
