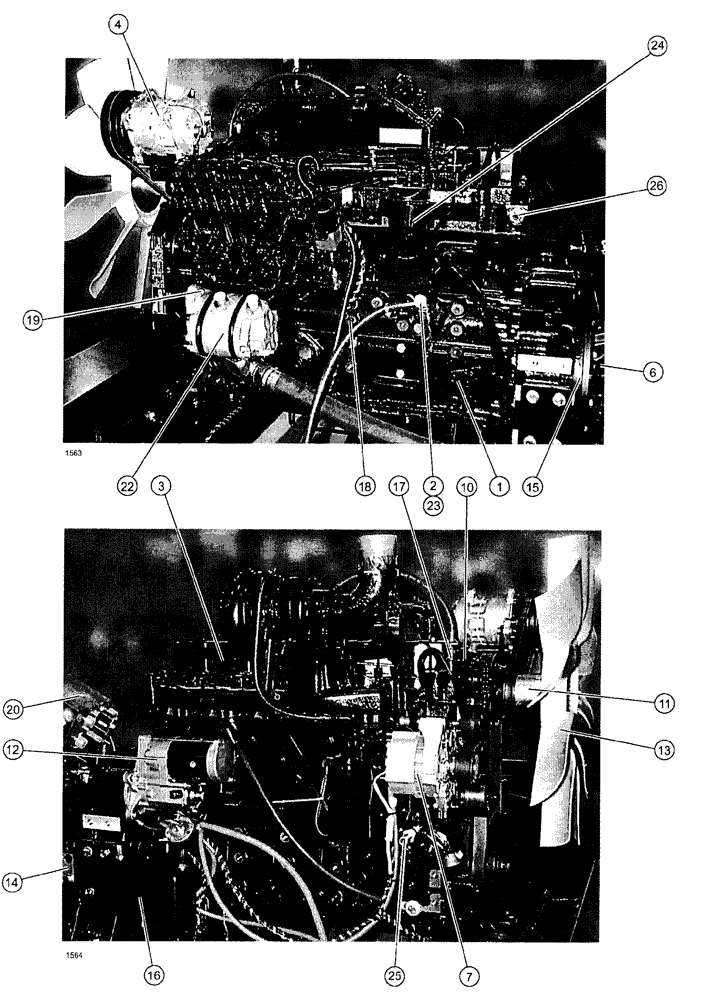

Запчасти Case IH SPX3185 (03-002) - ENGINE - ENGINE PACKAGE (01) - ENGINE

1

NSS

NOT SOLD SEPARAT

ASSEMBLY- throttle cable

1шт.

See Fig. 03-074

1шт.

2

BN310569

ELBOW

HOSEBARB, 1/2MPT x 3/8 x 90DEG

1шт.

3

NSS

NOT SOLD SEPARAT

ENGINE ASSEMBLY

1шт.

See Fig. 03-004

1шт.

4

NSS

NOT SOLD SEPARAT

A/C COMPRESSOR PKG

1шт.

See Fig. 06-068

1шт.

5

NSS

NOT SOLD SEPARAT

MUFFLER ASSEMBLY

1шт.

Not Shown

1шт.

See Fig. 03-075

1шт.

6

NSS

NOT SOLD SEPARAT

HYDROSTAT ASSEMBLY, w/adapter

1шт.

See Fig. 06-005

1шт.

6a

NSS

NOT SOLD SEPARAT

PKG. HDW. HYDSTAT SUPPORT MTG.

1шт.

See Fig. 03-073

1шт.

7

NSS

NOT SOLD SEPARAT

PACKAGE alternator

1шт.

See Fig. 03-069

1шт.

10

BN316131

PACKAGE vent-head

1шт.

10a

BN72167

BUSHING

1/2 x 1/4 PTR-S

1шт.

10b

BN53433

FITTING

FT, HB, 1/4" NPT x 1/4" HS, STL

1шт.

11

BN316111

SPACER-FAN, W/HDWE

1шт.

11a

BN300499

WASHER,M10, 10.9

4шт.

11b

43253

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

4шт.

11c

87031374

SPACER

Fan, 70 mm

1шт.

12

BN311554

ENGINE

STARTER MOTOR, w/hardware

1шт.

12a

116928A2

STARTING MOTOR

12V, 4.0 KW, Denso

1шт.

12a

116928A2R

REMAN-STARTER

1шт.

12a

116928A2C

CORE-STARTER

Return Number

1шт.

12b

83246410

M10-1.5, HN, 8.8, battery stud

1шт.

12c

140017

WASHER,M10 x 20mm OD x 2mm Thk

1шт.

12d

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

3шт.

12e

86509828

LOCK WASHER,M5

1шт.

12f

892-11010

LOCK WASHER,M10

1шт.

13

BN315810

FAN

26" dia.

1шт.

14

NSS

NOT SOLD SEPARAT

PKG hydrostat linkage

1шт.

See Fig. 03-081

1шт.

15

NSS

NOT SOLD SEPARAT

FLYWHL COUPLR ASSEMBLY

1шт.

See Fig. 03-005

1шт.

16

NSS

NOT SOLD SEPARAT

SOL. MNT., w/shield

1шт.

See Fig. 03-078

1шт.

17

326347A1

TEMPERATURE SENDER

temperature 1/2-14 NPTF

1шт.

18

326346A2

SENDER UNIT

SENDER pressure

1шт.

18a

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

19

BN310636

STUD

M12 x 1.75 x 90

2шт.

19a

9706685

NUT,M12 x 1.75, Cl 8

2шт.

19b

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

2шт.

20

NSS

NOT SOLD SEPARAT

ASSEMBLY f & s valve, w/fitting

1шт.

See Fig. 06-009

1шт.

21

NSS

NOT SOLD SEPARAT

RADIATOR

1шт.

Not Shown

1шт.

See Fig. 03-083

1шт.

22

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY tandem, w/adapter

1шт.

See Fig. 06-005

1шт.

23

BN76094

HOSE CLAMP

SS #M4

2шт.

25

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

1шт.

26

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

1шт.

ns

NSS

NOT SOLD SEPARAT

RETAINER rad, drain hose

1шт.

See Fig. 03-083

1шт.

ns

BN322891

WIRE HARNESS

HARNESS engine

1шт.

ns

BN72167

BUSHING

red

1шт.
