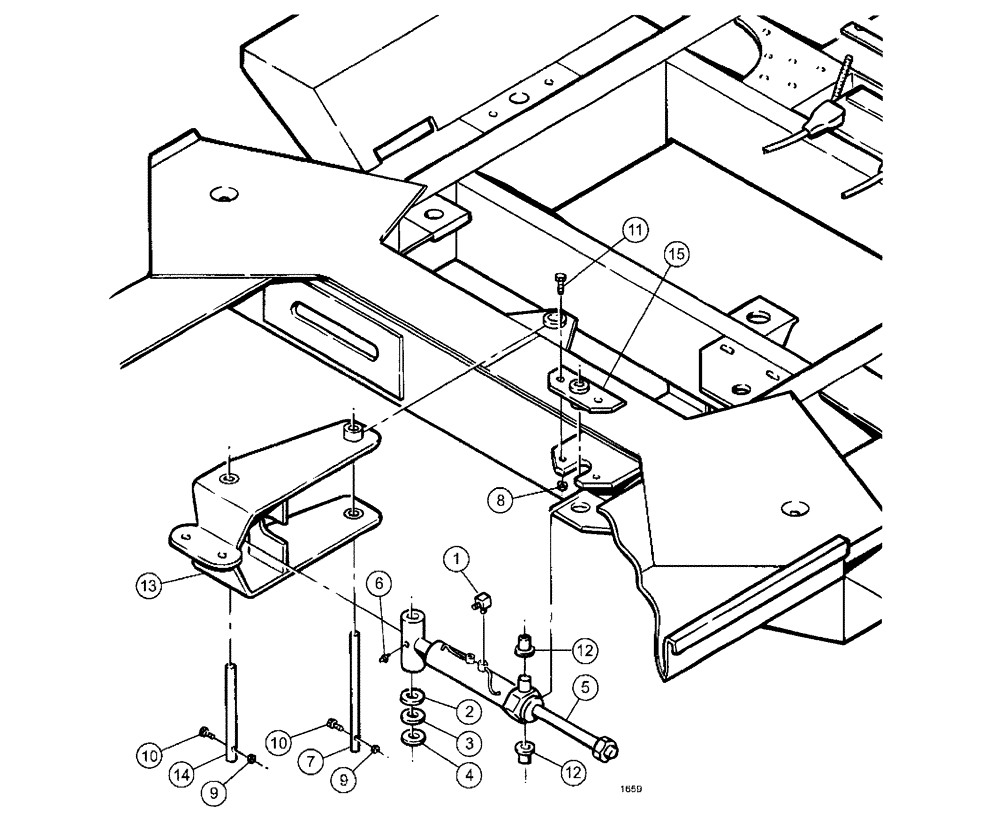

Запчасти Case IH SPX3185 (04-026) - SUSPENSION & FRAME - STEERING ARM ASSEMBLY Suspension & Frame

1

BN21401

ELBOW,90 Degree 3/8" NPT x 7/16"-20 JIC

2шт.

2

BN65463

WASHER

Machine Bushing - 18 GA

2шт.

3

BN65464

WASHER

Machine Bushing - 14 GA

2шт.

4

BN65465

WASHER

Machine Bushing - 10 GA

2шт.

5

CYL. hyd steering, see Figure 07-010

1шт.

6

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

1шт.

7

BN25516

PIN

pivot - 1.03" x 12.5"

1шт.

8

86992215

LOCK NUT,1/2"-13, GC

2шт.

9

88902

NUT,3/8"-16

2шт.

10

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

11

BN50894

BOLT

1/2"-13 x 2.5, HH, 5, PL

2шт.

12

BN63711

FLANGED BEARING,25.4mm ID x 28.57mm OD x 31.75mm L

Flange, 1"

2шт.

13

BN69156

ARM

steering, 8" frame

1шт.

14

BN63780

PIN

1.03 dia. CRS x 10

1шт.

15

BN63790

BUSHING

1шт.
