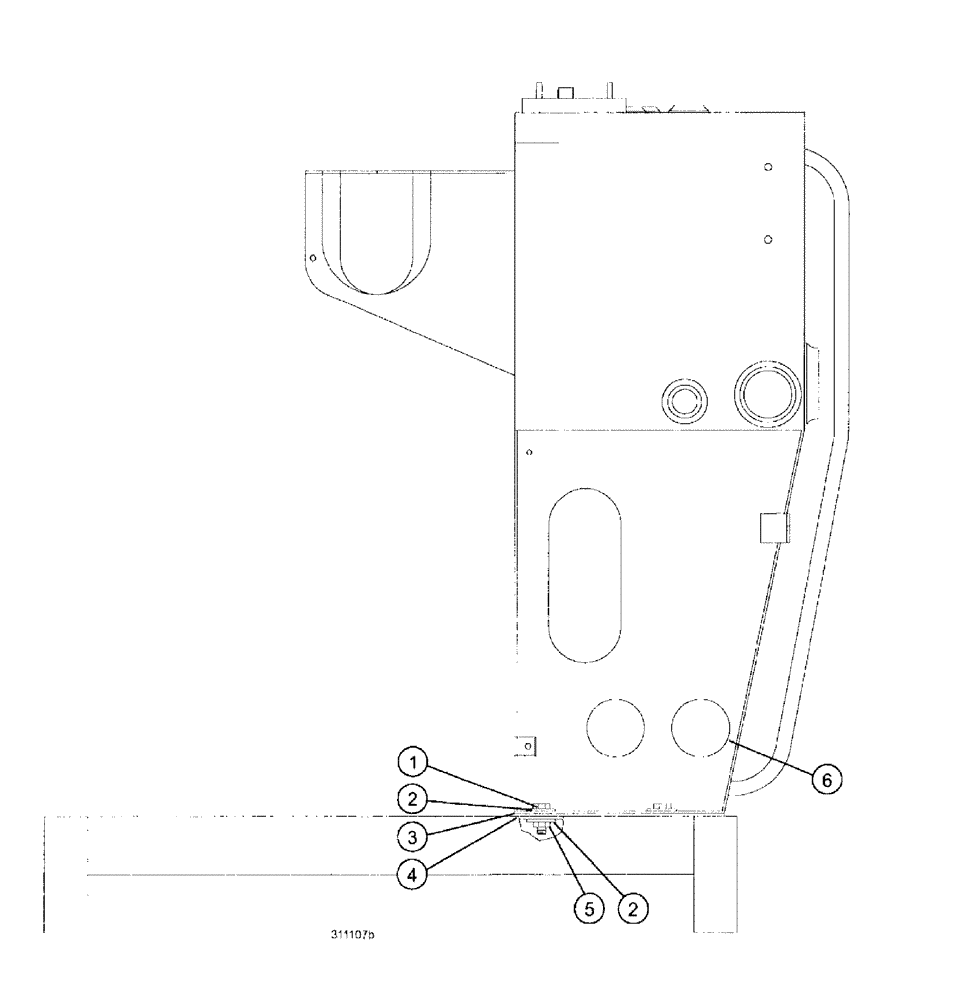

Запчасти Case IH SPX3185 (04-025) - SUSPENSION & FRAME - OIL TANK MOUNTING Suspension & Frame

*1

326-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

4шт.

2

BN300176

WASHER

Flat, 1/2, G8

8шт.

3

BN300172

PLATE

2шт.

4

BN310999

PLATE spacer

2шт.

5

BN50998

LOCK NUT

1/2-13 top, 8, PL

4шт.

6

BN303901

TRIM edge 13"

1шт.

ns

HOSE, 1.25" suction x 35", see page 6-4

1шт.

ns

HOSE, 1.25" suction x 30", see page6-4

1шт.

ns

HOSE, 1.5" suction x 66", see page 6-4

1шт.
