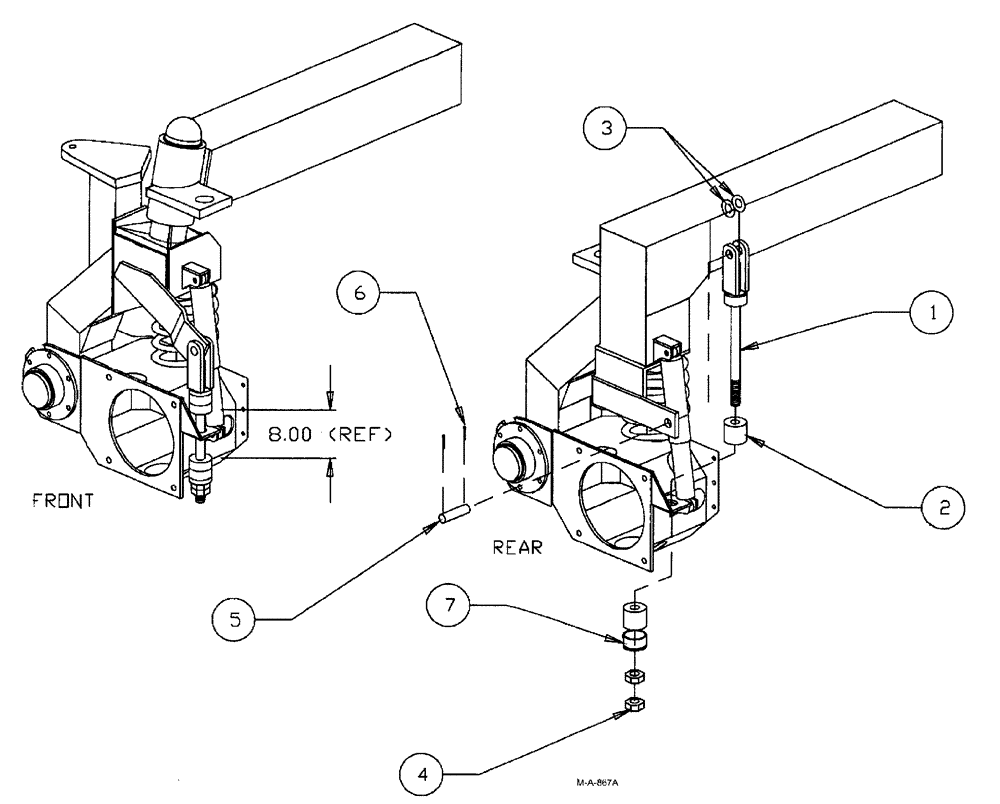

Запчасти Case IH SPX3185 (04-024) - SUSPENSION & FRAME - SHOCK LIMITER ASSEMBLY Suspension & Frame

1

BN300931

STOP

Shock

4шт.

2

BN27238

CUSHION

Urethane, 2.5" od x 1" id x 2"

8шт.

3

87529238

WASHER,1.06" ID x 2" OD x 0.13" Thk

1.0625 x 2 x 0.134 HTS DOR

8шт.

4

425-1516

JAM NUT,Jam, 1"-14, G5

8шт.

5

BN27229

PIN,25.4mm OD x 69.85mm L

4шт.

6

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER

8шт.

7

BN300277

RETAINER

Washer, 2 3/4" OD, 1.10" ID, Spring

4шт.
