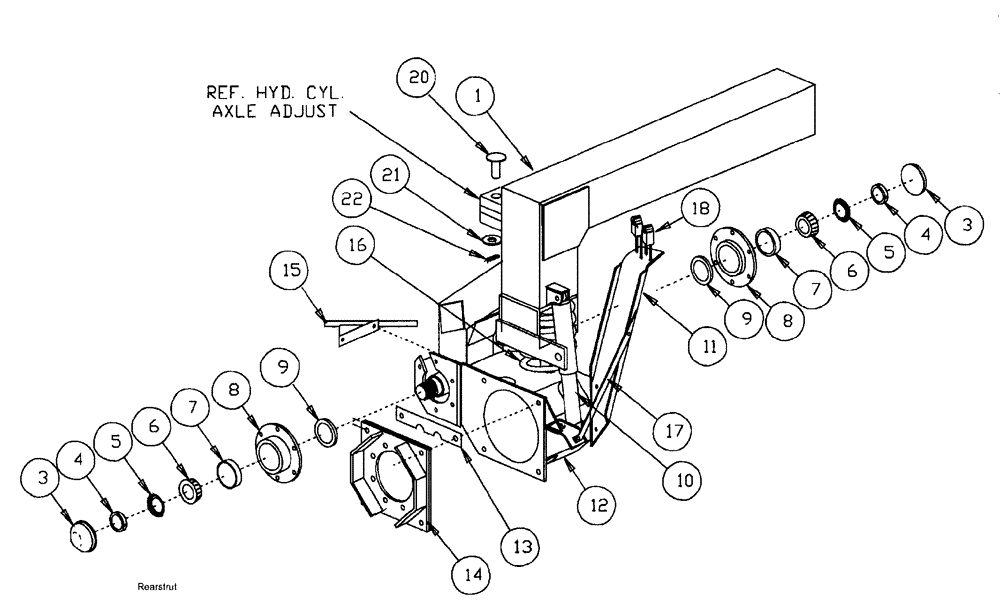

Запчасти Case IH SPX3185 (04-022) - SUSPENSION & FRAME - STRUT ASSEMBLY - REAR Suspension & Frame

1

BN323924

STRUT

LH, Low Profile

1шт.

low profile only

1шт.

1

BN323923

STRUT

RH, Low Profile

1шт.

low profile only

1шт.

3

BN80442

DUST CAP

w/drill & tap dust

4шт.

4

BN80443

LOCK NUT

4шт.

5

BN80444

LOCK WASHER,2.026" ID x 2.95" OD x 0.015"

lock, bearing

4шт.

6

BN31073

ROLLER BEARING,2" ID x 3.6718" OD x 1.1875"

4шт.

7

ST863

BEARING CUP,93.22mm OD x 23.81mm W

#3720

4шт.

Part of Ref. 8 P/N BN29071

1шт.

8

BN29071

HUB

Assembly With Race and Seal

4шт.

Includes Ref. 7

1шт.

8a

BN29058

SHIM

8" Dia x 12 ga

1шт.

9

BN31074

SEAL

4шт.

10

BN27333

SERVICE KIT

Shock, Bushing, Bolt, Nut

2шт.

11

BN65571

SUPPORT

rear hoses, LH

1шт.

Shown

1шт.

11

BN65572

SUPPORT

rear hoses, RH

1шт.

11

BN63923

SUPPORT

LH

1шт.

low profile only

1шт.

11

BN63924

SUPPORT

RH

1шт.

low profile only

1шт.

12

BN66421

HOUSING

LH

1шт.

Shown

1шт.

12a

BN66420

HOUSING

RH

1шт.

13

BN67444

SHIM

Auburn hubs

4шт.

14

BN66291

BRACKET

PLATE

2шт.

14a

BN52320

BOLT

Hex, 5/8"-18 x 2 1/4", G8

8шт.

14b

BN50775

LOCK NUT

5/8"-18 UNF Center

8шт.

14c

87343677

NUT

Hex, 5/8"-18, G8

8шт.

15

BN29690

DEFLECTOR

2шт.

16

BN322212

COIL SPRING

ctrless grnd

2шт.

16a

BN24261

RETAINER,13.46mm ID x 101.6mm OD x 6.35mm Thk

4" od x .53" id x 1/4"

4шт.

17

BN65576

SUPPORT

BRACE, RH

1шт.

Shown

1шт.

17a

BN65577

BRACKET

BRACE, LH

1шт.

18

BN57235

CLAMP

Assy, 1"

4шт.

20

86632567

HEADED PIN,30.14mm OD x 66.55mm L

2шт.

21

87529238

WASHER,1.06" ID x 2" OD x 0.13" Thk

1.0625 x 2 x 0.134 HTS DOR

2шт.

22

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16 x 2"

2шт.
