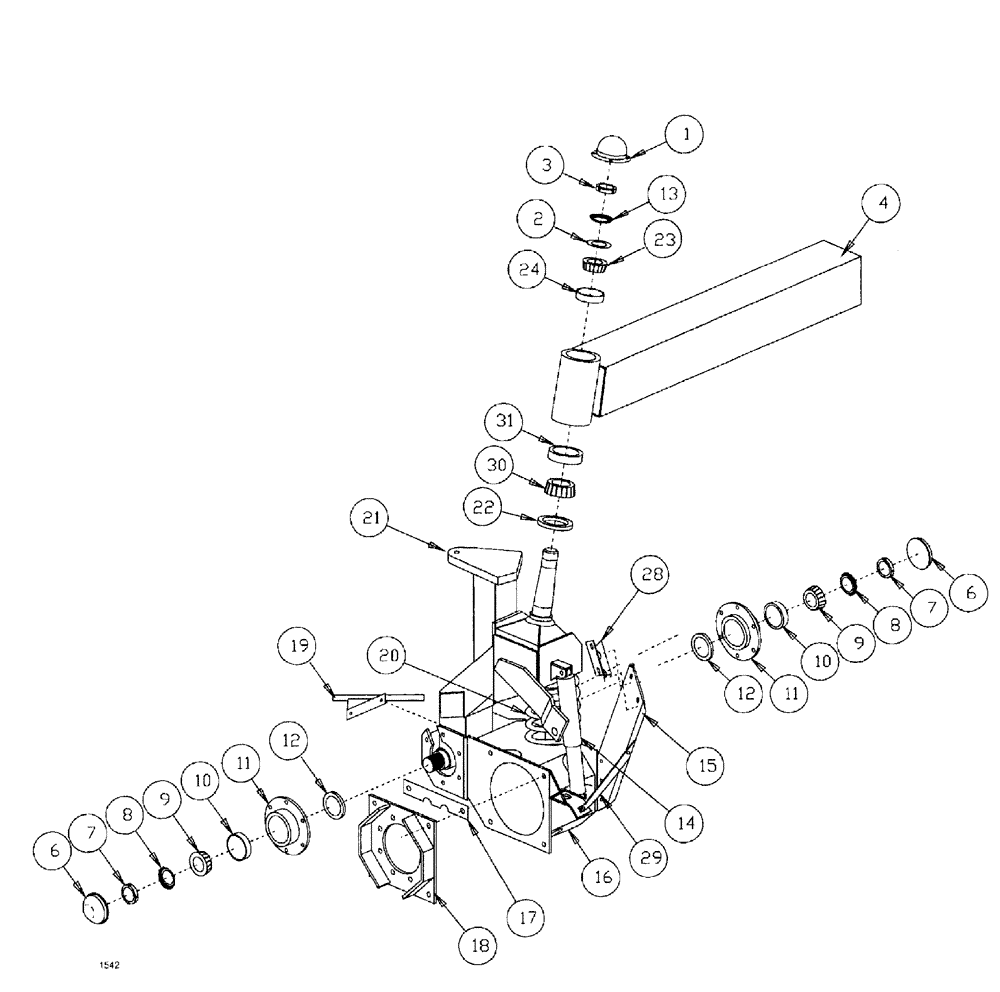

Запчасти Case IH SPX3185 (04-020) - SUSPENSION & FRAME - STRUT ASSEMBLY - FRONT Suspension & Frame

1

BN89874

DUST CAP

2шт.

2

BN66209

WASHER,65.79mm ID x 95.25mm OD x 9.65mm Thk

spacer, front spindle

2шт.

3

BN58124

BEARING LOCK NUT

2шт.

4

BN68946

AXLE

front, LH

1шт.

Shown

1шт.

4

BN68947

AXLE

front, RH

1шт.

4

BN303548

AXLE

LH, low profile

1шт.

4

BN303470

AXLE

RH, low profile

1шт.

6

BN80442

DUST CAP

w/drill & tap

4шт.

7

BN80443

LOCK NUT

4шт.

8

BN80444

LOCK WASHER,2.026" ID x 2.95" OD x 0.015"

lock, bearing

4шт.

9

BN31073

ROLLER BEARING,2" ID x 3.6718" OD x 1.1875"

4шт.

10

ST863

BEARING CUP,93.22mm OD x 23.81mm W

#3720

4шт.

Part of Retainer, P/N BN29071

1шт.

11

BN29071

HUB

Assembly With Race and Seal

4шт.

Includes Ref. 10

1шт.

11a

BN29058

SHIM

8" Dia x 12 ga

1шт.

12

BN31074

SEAL

4шт.

13

BN58125

LOCK WASHER

lock, series wh

2шт.

14

BN27333

SERVICE KIT

Shock, Bushing, Bolt, Nut

2шт.

15

BN65573

BRACKET

SUPPORT, LH

1шт.

Shown

1шт.

15

BN65574

BRACKET

SUPPORT, RH

1шт.

16

BN66423

BRACKET

HOUSING, LH

1шт.

Shown

1шт.

16

BN66422

FRAME

HOUSING, RH

1шт.

17

BN67444

SHIM

Auburn hubs

4шт.

18

BN66291

BRACKET

PLATE

2шт.

18a

BN52320

BOLT

Hex, 5/8"-18 x 2 1/4", G8

8шт.

18b

BN50775

LOCK NUT

5/8"-18 UNF Center

8шт.

18c

87343677

NUT

Hex, 5/8"-18, G8

8шт.

19

BN29690

DEFLECTOR

2шт.

20

BN322212

COIL SPRING

ctrless grnd

2шт.

20a

BN24261

RETAINER,13.46mm ID x 101.6mm OD x 6.35mm Thk

4" od x .53" id x 1/4"

4шт.

21

BN323922

STRUT

LH, Low Profile

1шт.

21a

BN323921

STRUT

RH, Low Profile

1шт.

22

86986322

OIL SEAL,110.11mm ID x 136.68mm OD x 12.7mm Thk

Double Lip, 5.381 od x 4.335 id x .5

2шт.

23

9672528

ROLLER BEARING,69.85mm ID

2шт.

24

BN52024

RACE

2шт.

28

BN63919

BRACKET

Mount - Hyd hose

2шт.

29

BN65577

BRACKET

BRACE, LH

1шт.

Shown

1шт.

29

BN65576

SUPPORT

BRACE, RH

1шт.

30

BN89876

ROLLER BEARING,82.55mm ID x 33.34mm W

2шт.

31

BN89875

RACE

2шт.
