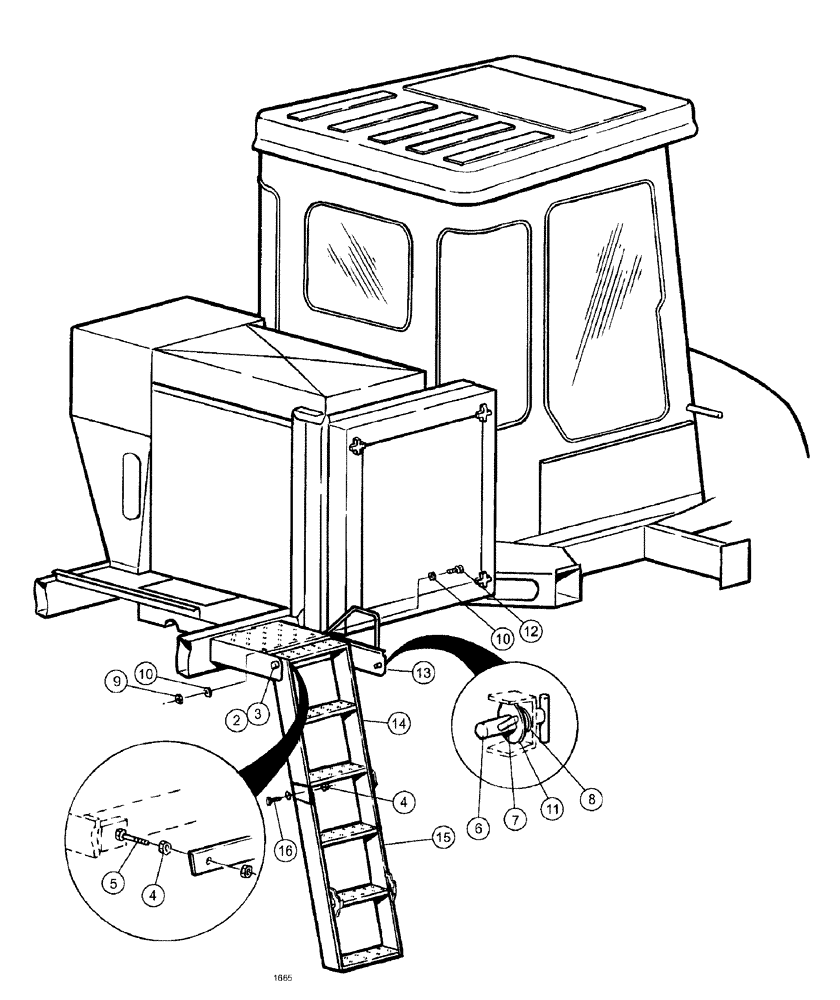

Запчасти Case IH SPX3185 (04-018) - SUSPENSION & FRAME - LADDER - RH Suspension & Frame

2

BN25138

SHAFT

1" x 17.25"

1шт.

3

BN50605

PIN, ROLL

7/32 x 1-1/2

1шт.

4

86992215

LOCK NUT,1/2"-13, GC

6шт.

5

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

2шт.

6

BN25257

PIN

Side Ladder

1шт.

7

BN31444

PIN, ROLL

1/4 x 1-1/2

1шт.

Roll pin #7 must be in second hole to engage ladder stop.

1шт.

8

BN31937

SPRING

compr .905 x .765, 2

1шт.

9

88902

NUT,3/8"-16

4шт.

10

BN50145

WASHER

plated flat, 3/8

4шт.

11

BN50157

WASHER

plated flat, 3/4

1шт.

12

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

13

BN63581

LATCH

Ladder

1шт.

14

BN63582

LADDER

Bi-Fold Top

1шт.

15

BN312542

LADDER

bi-fold, 3 step

1шт.

15

BN63583

LADDER

bi fold, 2 step

1шт.

low profile only

1шт.

16

87975

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

2шт.
